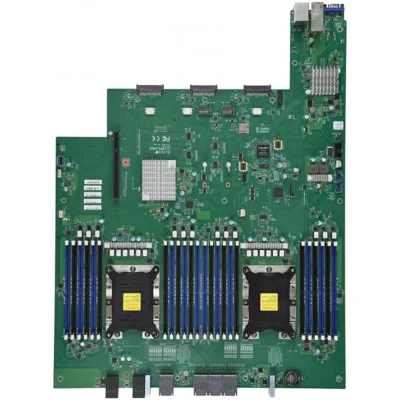

Supermicro MBD-X11DPG-HGX2 - HYPERTEK SYSTEMS B.V

Brand

Supermicro

TPM

1 TPM Header

Network Controllers

Dual LAN with 10GBase-T with Intel X540 10GbE Controller

M.2

M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key

Chipset

Intel C621

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
Core
Up to 28 cores

System Memory

Memory Capacity
24 DIMM slots
Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 128GB
RDIMM: 64GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C621
SATA
Intel C621 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with 10GBase-T with Intel X540 10GbE Controller

Input / Output

Expansion Slots

System BIOS

Brand	Supermicro
TPM	1 TPM Header
Network Controllers	Dual LAN with 10GBase-T with Intel X540 10GbE Controller
M.2	M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	Intel C621
DIMM Sizes	LRDIMM: 128GBRDIMM: 64GB
BIOS Type	AMI UEFI
Video Output	1 VGA D-Sub Connector port(s)
Dimension	21.94" x 16.85" (55.73cm x 42.8cm)
PCIe	2 PCIe 3.0 x16
USB	1 USB 3.2 Gen1 port(s) (1 via header)2 USB 3.0 port(s) (2 rear)
Form Factor	Proprietary
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
SATA	8 SATA3 (6Gbps) port(s)
Memory Capacity	24 DIMM slotsUp to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 28 cores
