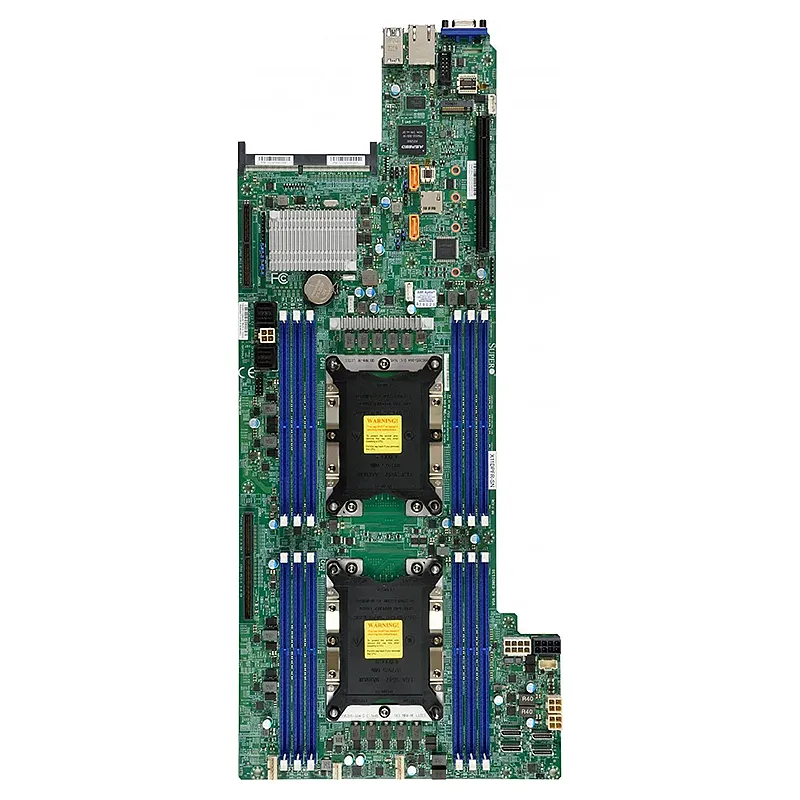

Supermicro MBD-X11DPFR-SN - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Graphics

1 ASPEED AST2500 BMC port(s)

TPM

1 TPM Header

Network Controllers

Networking options provided via SIOM module, Single LAN

M.2

2260Key: M-Key, 2280, M.2 Interface: PCIe 3.0 x4Form Factor: 22110

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 165W TDP, Dual UPI up to 10.4 GT/s
Core
Up to 28 cores

System Memory

Memory Capacity
12 DIMM slots
Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
Up to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 64GB
RDIMM: 64GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
1 PCIe 3.0 x16 Left Riser Slot,
1 PCIe 3.0 x16 Right Riser Slot,
1 PCIe 3.0 x16 connector for SMC add-on cards
1 PCIe 3.0 x16 SIOM LAN Networking Slot
M.2
M.2 Interface: PCIe 3.0 x4
Form Factor: 22110, 2280, 2260
Key: M-Key

System BIOS

Management

Brand	Supermicro
Graphics	1 ASPEED AST2500 BMC port(s)
TPM	1 TPM Header
Network Controllers	Networking options provided via SIOM module, Single LAN
M.2	2260Key: M-Key, 2280, M.2 Interface: PCIe 3.0 x4Form Factor: 22110
Chipset	Intel C621
DIMM Sizes	LRDIMM: 64GBRDIMM: 64GB
BIOS Type	AMI UEFI
LAN	1 RJ45 Dedicated IPMI LAN port
Video Output	1 VGA port(s)
DOM	DOM
Dimension	8.53" x 19.66" (21.67cm x 49.94cm)
PCIe	1 PCIe 3.0 x16 connector for SMC add-on cards1 PCIe 3.0 x16 SIOM LAN Networking Slot, 1 PCIe 3.0 x16 Left Riser Slot, 1 PCIe 3.0 x16 Right Riser Slot
USB	2 USB 3.0 port(s) (2 rear)
Form Factor	Proprietary FatTwin
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 165W TDP, Dual UPI up to 10.4 GT/s
SATA	8 SATA3 (6Gbps) port(s)
Memory Capacity	12 DIMM slotsUp to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/sUp to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 28 cores
