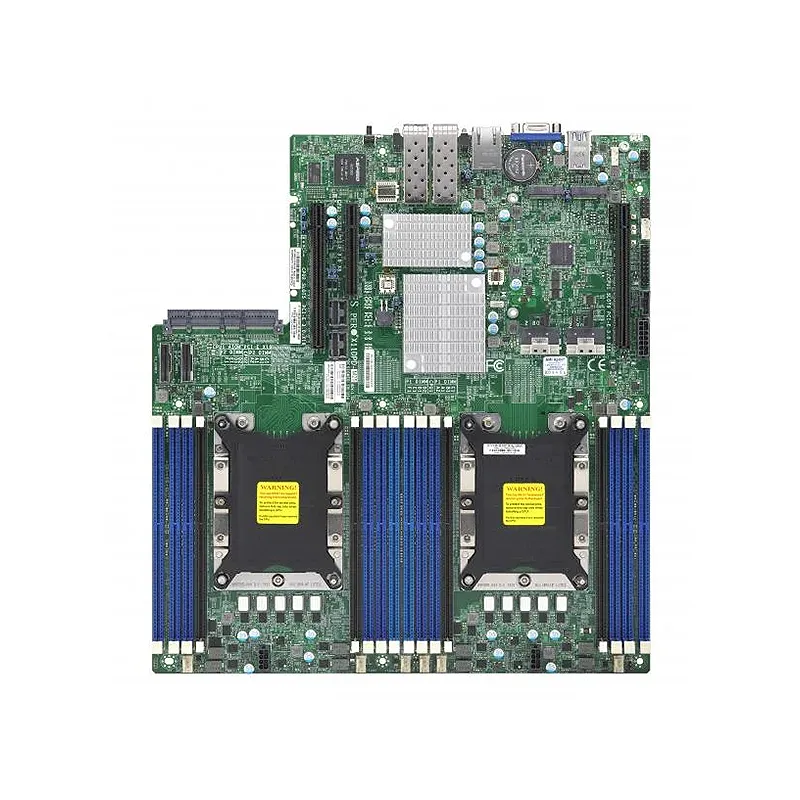

Supermicro MBD-X11DPD-M25 - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Graphics

1 ASPEED AST2500 BMC port(s)

TPM

1 TPM Header

Network Controllers

Dual LAN with SoC, Mellanox CONNECTX-4 LX EN 25GbE

M.2

M.2 Interface: 1 PCIe 3.0 x4; 1 PCIe 3.0 x1Form Factor: 2280Key: M-Key

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s

System Memory

Memory Capacity
16 DIMM slots
Up to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 64GB, 128GB
RDIMM: 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
1 PCIe 3.0 x16 (Low Profile),
1 PCIe 3.0 x8 Right Riser Slot,
2 PCIe 3.0 x8 Proprietary Slot,
1 PCIe 3.0 x16 Left Riser Slot,
1 PCIe 3.0 x16 for Add-On-Module (AOM)
M.2
M.2 Interface: 1 PCIe 3.0 x4; 1 PCIe 3.0 x1
Form Factor: 2280
Key: M-Key

System BIOS

Brand	Supermicro
Graphics	1 ASPEED AST2500 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with SoC, Mellanox CONNECTX-4 LX EN 25GbE
M.2	M.2 Interface: 1 PCIe 3.0 x4; 1 PCIe 3.0 x1Form Factor: 2280Key: M-Key
Chipset	Intel C621
DIMM Sizes	128GB, 128GBRDIMM: 64GB, LRDIMM: 64GB
BIOS Type	256MB UEFI
Video Output	1 VGA port(s)
Dimension	12" x 13" (30.48cm x 33.02cm)
PCIe	1 PCIe 3.0 x16 (Low Profile), 1 PCIe 3.0 x16 for Add-On-Module (AOM), 1 PCIe 3.0 x16 Left Riser Slot, 1 PCIe 3.0 x8 Right Riser Slot, 2 PCIe 3.0 x8 Proprietary Slot
USB	2 USB 2.0 port(s) (2 via header)2 USB 3.0 port(s) (2 rear)
Form Factor	Proprietary
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
Serial Port	MicroUSB
SATA	1, 10, 5, Intel C621 controller for 12 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity	16 DIMM slotsUp to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
