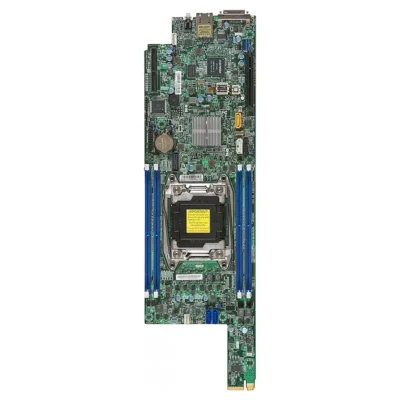

Supermicro MBD-X10SRD-F - HYPERTEK SYSTEMS B.V

Product SKUs

MBD-X10SRD-F
X10SRD-F

Physical Stats

Form Factor
Proprietary
Dimensions
4.75″ x 15.95″ (12.07cm x 40.51cm)

Processor/Cache

CPU
Intel Xeon Processor E5-1600 v3, Intel Xeon Processor E5-1600 v4, Intel Xeon processor E5-2600 v3, Intel Xeon processor E5-2600 v4.
Single Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W
Cores / Cache
Up to 22 cores / Up to 55MB cache

System Memory

Memory Capacity
Up to 128GB Registered ECC RDIMM; Up to 256GB Registered ECC LRDIMM, in 4 DIMM slots4x 288-pin DDR4 DIMM slots
Up to 512GB ECC 3DS LRDIMM
Memory Type
2400?/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C612
SATA
SATA3 (6 Gbps) ports; RAID 0,11 SATA DOM
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel i350, 2x Gigabit LAN ports Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel I/OAT 3 support for fast, scaleable, and reliable networking VMDq support for better performance of virtualization
Graphics
Aspeed AST2400 BMC

Input / Output

LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
2 USB 3.0 ports (1 header + 1 Type A)
Video Output
1 VGA port
TPM
1 TPM Header
Others
KVM: 1 VGA, 1 COM, and 2 USB 2.0 (with KVM dongle) ports

Expansion Slots

PCI-E
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x8 (Micro Low Profile)

System BIOS

BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
ACPI 1.0 / 2.0
USB Keyboard support
SMBIOS 2.3
RTC (Real Time Clock) Wakeup

Management

Power Configurations
ACPI / ACPM Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
Internal/External modem ring-on

Brand	Supermicro
BIOS Features	Plug and Play (PnP)APM 1.2ACPI 1.0 / 2.0USB Keyboard supportSMBIOS 2.3RTC (Real Time Clock) Wakeup
Graphics	Aspeed AST2400 BMC
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support.
TPM	1 TPM Header
PCI-E	1 PCI-E 3.0 x8, 1 PCI-E 3.0 x8 (Micro Low Profile)
Network Controllers	2x Gigabit LAN ports, Intel i350
Chipset	Intel C612
DIMM Sizes	16GB, 32GBLRDIMM: 32GB, 64GB3DS LRDIMM: 128GB, 8GB, RDIMM: 4GB
Cores / Cache	Up to 22 cores / Up to 55MB cache
BIOS Type	128MB SPI Flash EEPROM with AMI BIOS
LAN	2 RJ45 Gigabit Ethernet LAN ports
Video Output	1 VGA port
USB	2 USB 3.0 ports (1 header + 1 Type A)
Form Factor	Proprietary
Memory Type	2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
Application	Server
IPMI	Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2400 BMC
Others	1 COM, and 2 USB 2.0 (with KVM dongle) ports, KVM: 1 VGA
Memory Voltage	1.2V
CPU	CPU TDP support Up to 145W, Intel Xeon Processor E5-1600 v3, Intel Xeon Processor E5-1600 v4, Intel Xeon processor E5-2600 v3, Intel Xeon processor E5-2600 v4.Single Socket R3 (LGA 2011) supported
SATA	11 SATA DOM, SATA3 (6 Gbps) ports; RAID 0
Memory Capacity	in 4 DIMM slots4x 288-pin DDR4 DIMM slotsUp to 512GB ECC 3DS LRDIMM, Up to 128GB Registered ECC RDIMM; Up to 256GB Registered ECC LRDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Dimensions	4.75" x 15.95" (12.07cm x 40.51cm)
