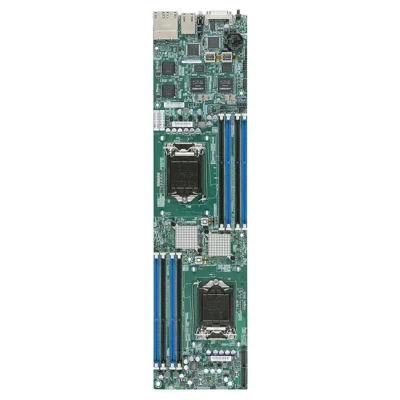

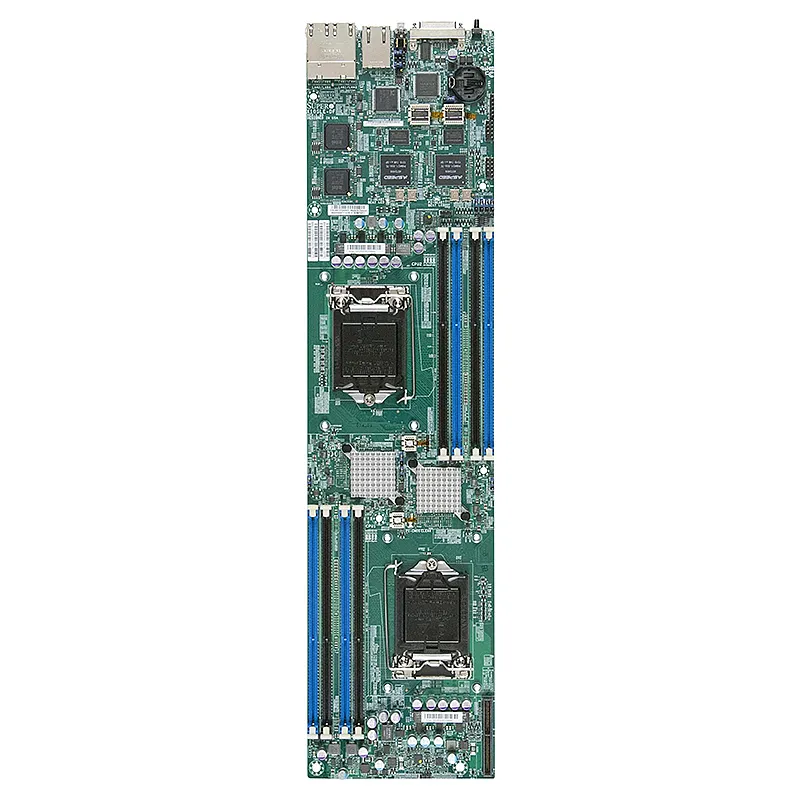

Supermicro MBD-X10SLE-DF - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

DMI (SMBIOS) 2.7ACPI 5.0USB Keyboard support

Graphics

Aspeed AST2400 BMCvia KVM connector

Serial Port / Header

1 COM Port (1 rear), via KVM connector

Network Controllers

Dual LAN with Intel i350 Gigabit Ethernet Controller

Product SKUs

Physical Stats

Processor/Cache

CPU
Intel 4th Generation Core? i3 series, Intel Xeon processor E3-1200 v3, Intel Xeon Processor E3-1200 v4 series.
Single Socket LGA 1150 supported
8th Gen Intel Core? desktop processors are supported with Intel 300 Series chipset motherboards only

System Memory

Memory Capacity
Up to 32GB Unbuffered ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
Up to 32GB ECC VLP-UDIMM DDR3-1600MHz per node
Memory Type
1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
2GB, 4GB, 8GB
Memory Voltage
1.35V, 1.5V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C224 Express PCH
SATA
Intel C224 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Dual LAN with Intel i350 Gigabit Ethernet Controller Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) Shared with 2 Nodes
Graphics
Aspeed AST2400 BMC
via KVM connector

Input / Output

Expansion Slots

System BIOS

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ACPI Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery

Brand	Supermicro
BIOS Features	DMI (SMBIOS) 2.7ACPI 5.0USB Keyboard support
Graphics	Aspeed AST2400 BMCvia KVM connector
Serial Port / Header	1 COM Port (1 rear), via KVM connector
Network Controllers	Dual LAN with Intel i350 Gigabit Ethernet Controller
Chipset	Intel C224 Express PCH
DIMM Sizes	2GB, 4GB, 8GB
BIOS Type	128MB SPI Flash EEPROM with AMI BIOS
LAN	2 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
Video Output	1 VGA port, via KVM connector
USB	2 USB 2.0 via KVM connector
Form Factor	Proprietary
Memory Type	1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Application	Server
IPMI	Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2400 BMC
Others	KVM connector for 2 USB 2.0, VGA and COM Ports
Memory Voltage	1.35V, 1.5V
CPU	Intel 4th Generation Core i3 series, Intel Xeon processor E3-1200 v3, Intel Xeon Processor E3-1200 v4 series.Single Socket LGA 1150 supported8th Gen Intel Core desktop processors are supported with Intel 300 Series chipset motherboards only
SATA	1, Intel C224 controller for 2 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity	DDR3-1600MHz, in 4 DIMM slotsUp to 32GB ECC VLP-UDIMM DDR3-1600MHz per node, Up to 32GB Unbuffered ECC UDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Dimensions	4.6" x 18.5" (11.68cm x 46.99cm)
