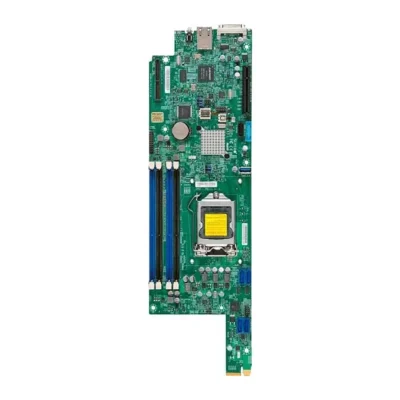

Supermicro MBD-X10SLD-HF - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 5.0USB Keyboard supportACPI 5.0

Graphics

Aspeed AST2400 BMCvia KVM connector

Serial Port / Header

1 COM Port (1 rear), via KVM connector

TPM

1 TPM Header

Product SKUs

Physical Stats

Processor/Cache

CPU
Intel 4th Generation Core? i3 series, Intel Celeron, Intel Pentiumv, Intel Xeon processor E3-1200 v3, Intel Xeon Processor E3-1200 v4 series.
Single Socket LGA 1150 supported

System Memory

Memory Capacity
Up to 32GB Unbuffered ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
4 240-pin DDR3 DIMM sockets
Memory Type
1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
2GB, 4GB, 8GB
Memory Voltage
1.35V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C226 Express PCH
SATA
Intel C226 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controllers
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics
Aspeed AST2400 BMC
via KVM connector

Input / Output

LAN
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 2.0 ports (2 rear Type A))
3 USB 3.0 ports (2 headers + 1 Type A); 2 USB 2.0 ports vis KVM connector
Video Output
1 VGA port,
via KVM connector
Serial Port / Header
1 COM Port (1 rear), via KVM connector 1 fast UART 16550 serial
TPM
1 TPM Header

Expansion Slots

System BIOS

Management

Power Configurations
ACPI Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
Internal/External modem ring-on

Brand	Supermicro
BIOS Features	ACPI 5.0USB Keyboard supportACPI 5.0
Graphics	Aspeed AST2400 BMCvia KVM connector
Serial Port / Header	1 COM Port (1 rear), via KVM connector
TPM	1 TPM Header
PCI-E	1 PCI-E 3.0 x8 (Micro Low Profile)for Dual GbE, 10GbE or IB AOC
Network Controllers	Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Chipset	Intel C226 Express PCH
DIMM Sizes	2GB, 4GB, 8GB
BIOS Type	128MB SPI Flash EEPROM with AMI BIOS
LAN	1 RJ45 Dedicated IPMI LAN port
Video Output	1 VGA port, via KVM connector
USB	2 USB 2.0 ports (2 rear Type A))3 USB 3.0 ports (2 headers + 1 Type A); 2 USB 2.0 ports vis KVM connector
Form Factor	Proprietary
Memory Type	1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Application	Server
IPMI	Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Memory Voltage	1.35V
CPU	Intel 4th Generation Core i3 series, Intel Celeron, Intel Pentiumv, Intel Xeon processor E3-1200 v3, Intel Xeon Processor E3-1200 v4 series.Single Socket LGA 1150 supported
SATA	1, 10, 5, Intel C226 controller for 4 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity	DDR3-1600MHz, in 4 DIMM slots4 240-pin DDR3 DIMM sockets, Up to 32GB Unbuffered ECC UDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Dimensions	4.6" x 11.7" (11.68cm x 29.72cm)
