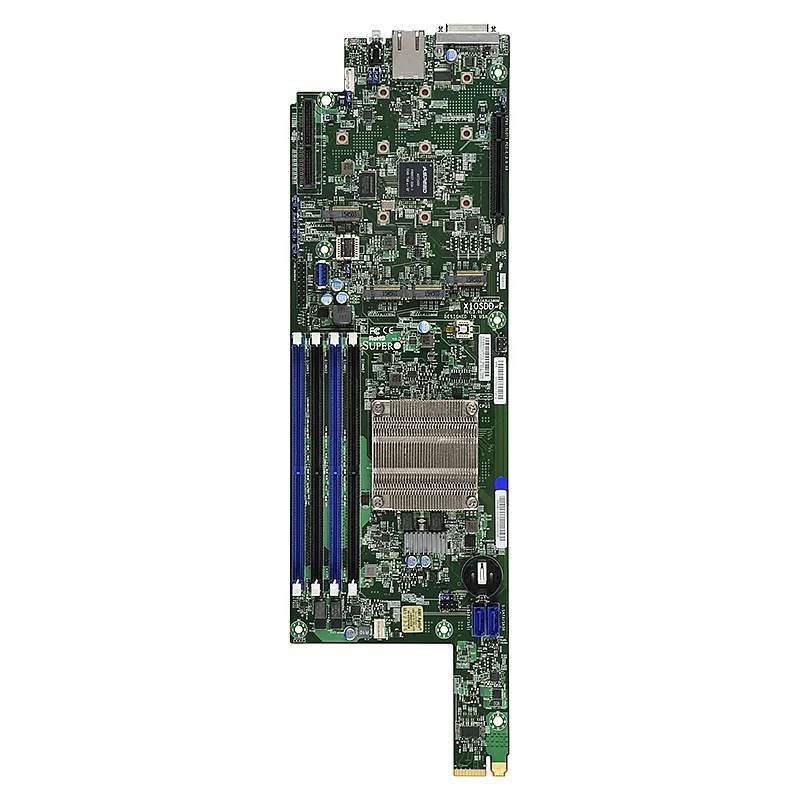

Supermicro MBD-X10SDD-F - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 5.0PCI FW 3.0Plug and Play (PnP)UEFI 2.4SMBIOS 2.8USB Keyboard support

Graphics

Aspeed AST2400 BMC

TPM

1 TPM Header

PCI-E

1 PCI-E 3.0 x8, 1 PCI-E 3.0 x8 (Micro Low Profile)

Product SKUs

Physical Stats

Processor/Cache

CPU
Intel Xeon Processor D-1541.
Single Socket FCBGA1667 supported, CPU TDP support 45W

System Memory

Memory Capacity
128GB Registered ECC RDIMM
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type
2133/2400MHz ECC DDR4 RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
System on Chip
SATA
2 SATA3 (6 Gbps) ports;
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controllers
Intel i350, 2x Gigabit LAN ports
Graphics
Aspeed AST2400 BMC

Input / Output

USB
2 USB 2.0 ports (2 rear Type A))
1 USB 3.1 Gen1 ports, 1 Type A);
2x USB 2.0 ports via KVM
Video Output
1 VGA port
TPM
1 TPM Header

Expansion Slots

System BIOS

BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
ACPI 5.0
PCI FW 3.0
Plug and Play (PnP)
UEFI 2.4
SMBIOS 2.8
USB Keyboard support

Management

Power Configurations
ACPI Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery

Brand	Supermicro
BIOS Features	ACPI 5.0PCI FW 3.0Plug and Play (PnP)UEFI 2.4SMBIOS 2.8USB Keyboard support
Graphics	Aspeed AST2400 BMC
TPM	1 TPM Header
PCI-E	1 PCI-E 3.0 x8, 1 PCI-E 3.0 x8 (Micro Low Profile)
Network Controllers	2x Gigabit LAN ports, Intel i350
M.2	2 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280/22110
Chipset	System on Chip
DIMM Sizes	16GB, 32GB, 4GB, 8GB
BIOS Type	128MB SPI Flash EEPROM with AMI BIOS
Video Output	1 VGA port
USB	1 Type A);2x USB 2.0 ports via KVM, 2 USB 2.0 ports (2 rear Type A))1 USB 3.1 Gen1 ports
Form Factor	Proprietary
Memory Type	2133/2400MHz ECC DDR4 RDIMM and ECC/Non-ECC UDIMM
Application	Server
IPMI	Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Memory Voltage	1.2V
CPU	CPU TDP support 45W, Intel Xeon Processor D-1541.Single Socket FCBGA1667 supported
SATA	2 SATA3 (6 Gbps) ports;
Memory Capacity	128GB Registered ECC RDIMMUp to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM Slots
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Dimensions	4.75" x 19.95" (12.07cm x 50.67cm)
