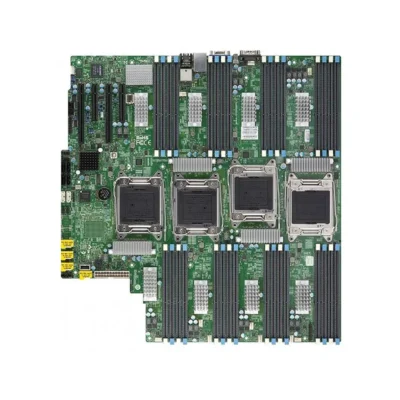

Supermicro MBD-X10QBL - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

Plug and Play (PnP)APM 1.2PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportSMBIOS 2.7.1UEFI 2.3.1

Graphics

Aspeed AST2400 BMC

Serial Port / Header

1 header), 2 COM Ports (1 rear

TPM

1 TPM Header

Product SKUs

Physical Stats

Processor/Cache

CPU
Intel Xeon processor E7-8800 v3, Intel Xeon processor E7-8800 v4.
Quad Socket R (LGA 2011) supported, CPU TDP support 165W TDP, 1 QPI up to 9.6GT/s
Cores / Cache
Up to 24 cores / Up to 60 MB cache

System Memory

Memory Capacity
Up to 2TB 3DS ECC RDIMM, DDR3 1600/1333/1066 MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-1866MHz, in 32 DIMM slots
Memory Type
1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
4GB, 8GB, 16GB, 32GB, 64GB
Memory Voltage
1.35V, 1.5V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C602J
SATA
SATA2 (3Gbps) with RAID 0, 1, 5, 10 SATA3 (6Gbps) with RAID 0, 1
JBOD support (IT Mode)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Dual LAN with Intel i350 Gigabit Ethernet Controller For X10QBL only Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
Graphics
Aspeed AST2400 BMC

Input / Output

Expansion Slots

System BIOS

BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1

Management

Power Configurations
ACPI Power Management
Main Switch Override Mechanism
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery

Brand	Supermicro
BIOS Features	Plug and Play (PnP)APM 1.2PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportSMBIOS 2.7.1UEFI 2.3.1
Graphics	Aspeed AST2400 BMC
Serial Port / Header	1 header), 2 COM Ports (1 rear
TPM	1 TPM Header
PCI-E	2 PCI-E 3.0 x16, 2 PCI-E 3.0 x8
Network Controllers	Dual LAN with Intel i350 Gigabit Ethernet Controller
Chipset	Intel C602J
DIMM Sizes	16GB, 32GB, 4GB, 64GB, 8GB
Cores / Cache	Up to 24 cores / Up to 60 MB cache
BIOS Type	128MB SPI Flash EEPROM with AMI BIOS
LAN	2 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
Video Output	1 VGA port
USB	6 USB 2.0 ports (3 rear + 2 headers + 1 Type A)
Form Factor	Proprietary
Memory Type	1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Application	Server
IPMI	Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2400 BMC
Memory Voltage	1.35V, 1.5V
CPU	1 QPI up to 9.6GT/s, CPU TDP support 165W TDP, Intel Xeon processor E7-8800 v3, Intel Xeon processor E7-8800 v4.Quad Socket R (LGA 2011) supported
SATA	2 SATA3 (6Gbps) port4 SATA2 (3Gbps) ports
Memory Capacity	DDR3 1600/1333/1066 MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-1866MHz, in 32 DIMM slots, Up to 2TB 3DS ECC RDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Dimensions	16.79" x 16.4" (42.65cm x 41.66cm)
