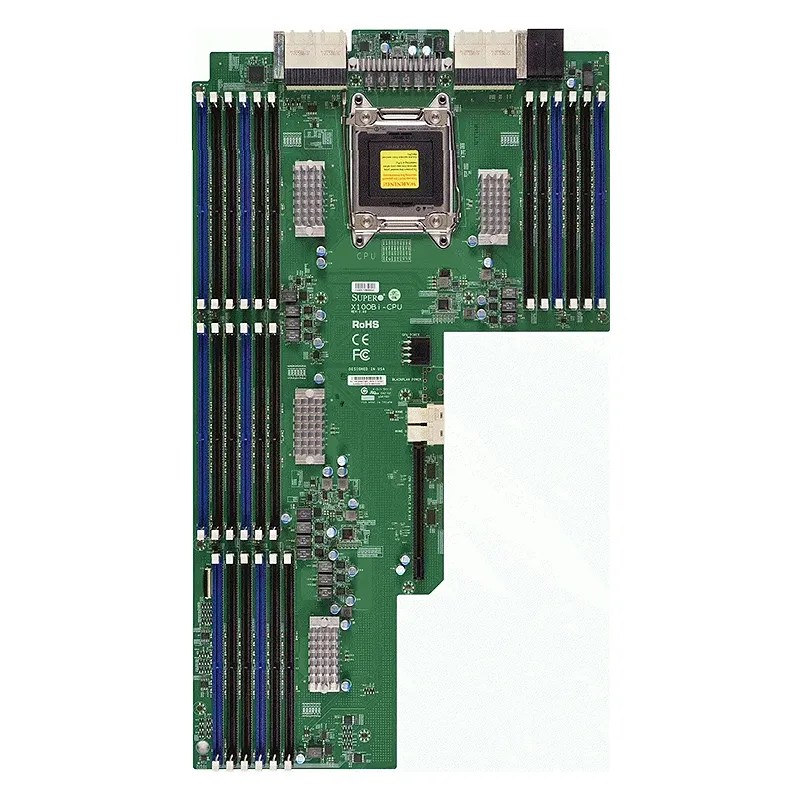

Supermicro MBD-X10OBI-CPU - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Graphics

(on PCH board)

PCI-E

1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8

Network Controllers

Quad LAN with Patsburg-J Chipset(on PCH board)

Chipset

Intel C602J

Product SKUs

Physical Stats

Processor/Cache

CPU
Intel Xeon processor E7-8800 v3, Intel Xeon processor E7-8800 v4.
Octal Socket LGA-2011 (Socket R) supported, CPU TDP support Up to 165W TDP, 3 QPI up to 9.6GT/s

System Memory

Memory Capacity
Up to 3TB 3DS ECC RDIMM, DDR4-1866MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-1866MHz, in 24 DIMM slots; LRDIMM and RDIMM support up to 3TB with 128GB DIMM size
Memory Type
1866/1600/1333/1066/800MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes
RDIMM: 8GB, 16GB, 32GB, 64GB, 128GB
LRDIMM: 8GB, 16GB, 32GB, 64GB, 128GB
3DS LRDIMM: 16GB, 32GB, 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

System BIOS

Brand	Supermicro
Graphics	(on PCH board)
PCI-E	1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
Network Controllers	Quad LAN with Patsburg-J Chipset(on PCH board)
Chipset	Intel C602J
DIMM Sizes	128GB, 128GB3DS LRDIMM: 16GB, 128GBLRDIMM: 8GB, 16GB, 32GB, 64GB, RDIMM: 8GB
BIOS Type	AMI UEFI
Video Output	(on PCH board)
USB	(on PCH board)
Form Factor	Proprietary
Memory Type	1866/1600/1333/1066/800MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs
Application	Server
Others	(TPM header on PCH board)
Memory Voltage	1.2V
CPU	3 QPI up to 9.6GT/s, CPU TDP support Up to 165W TDP, Intel Xeon processor E7-8800 v3, Intel Xeon processor E7-8800 v4.Octal Socket LGA-2011 (Socket R) supported
SATA	(on Storage board)
Memory Capacity	DDR4-1866MHz, DDR4-1866MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots; LRDIMM and RDIMM support up to 3TB with 128GB DIMM size, Up to 3TB 3DS ECC RDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Dimensions	11.07" x 20.17" (28.12cm x 51.23cm)
