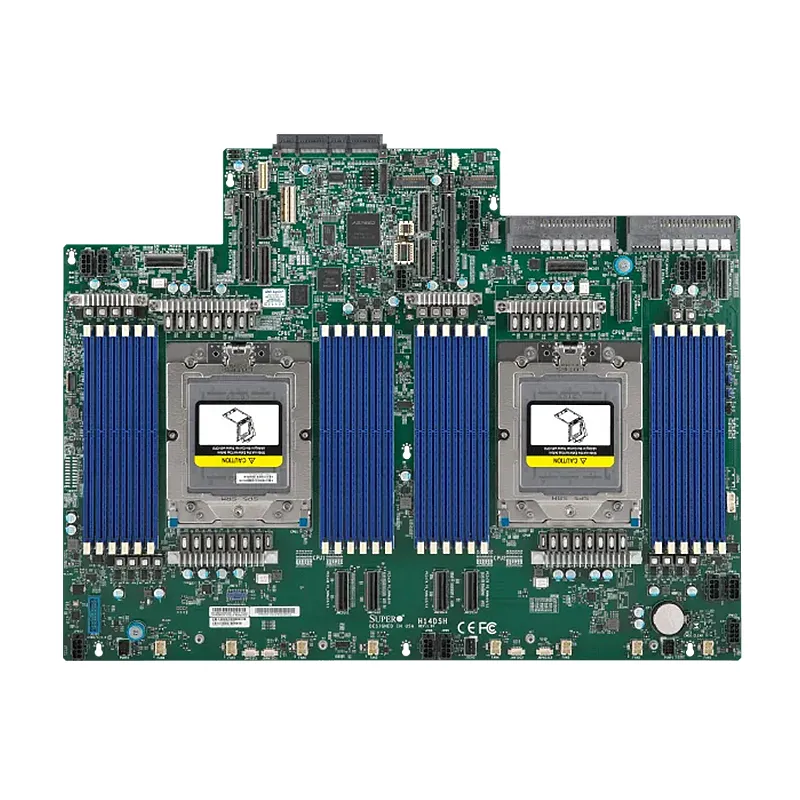

Supermicro MBD-H14DSH - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.5SMBIOS 3.7 or laterUEFI 2.8

Graphics

1 ASPEED AST2600 BMC port(s)

TPM

1 TPM Header

M.2

M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key

Product SKUs

Physical Stats

Processor

CPU
AMD EPYC 9005/9004 Series Processors
Dual Socket SP5 supported, CPU TDP supports Up to 500W TDP
Core
Up to 384 cores, 768 threads

System Memory

Memory Capacity
24 DIMM slots
Up to 9TB 3DS ECC Registered RDIMM, DDR5-6000MT/s
Memory Type
6000/4800 MT/s ECC DDR5 RDIMM (3DS) Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor, 1DPC) Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor, 1DPC)
DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 192GB, 256GB, 384GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

LAN
1 RJ45 Dedicated IPMI LAN port via I/O board
USB
4 USB 3 port(s) (4 via header 2 via I/O board; 2 via header)
TPM
1 TPM Header
Others
10 MCIO (PCIe 5.0 x8) Port(s)
4 MCIO (PCIe 5.0 x8/SATA3) Hybrid Port(s)

Expansion Slots

System BIOS

Brand	Supermicro
BIOS Features	ACPI 6.5SMBIOS 3.7 or laterUEFI 2.8
Graphics	1 ASPEED AST2600 BMC port(s)
TPM	1 TPM Header
M.2	M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	System on Chip
DIMM Sizes	128GB, 16GB, 192GB, 24GB, 256GB, 32GB, 384GB, 48GB, 64GB, 96GB
BIOS Type	AMI 64MB SPI Flash EEPROM
LAN	1 RJ45 Dedicated IPMI LAN port via I/O board
Dimension	17" x 12.89" (43.18cm x 32.74cm)
PCIe	1 PCIe 5.0 x16 Left Riser Slot, 1 PCIe 5.0 x16 Right Riser Slot
USB	4 USB 3 port(s) (4 via header 2 via I/O board; 2 via header)
Form Factor	Proprietary
Memory Type	6000/4800 MT/s ECC DDR5 RDIMM (3DS)
Application	Server
Others	10 MCIO (PCIe 5.0 x8) Port(s)4 MCIO (PCIe 5.0 x8/SATA3) Hybrid Port(s)
Memory Voltage	1.1V
CPU	AMD EPYC 9005/9004 Series ProcessorsDual Socket SP5 supported, CPU TDP supports Up to 500W TDP
Memory Capacity	24 DIMM slotsUp to 9TB 3DS ECC Registered RDIMM, DDR5-6000MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	768 threads, Up to 384 cores
