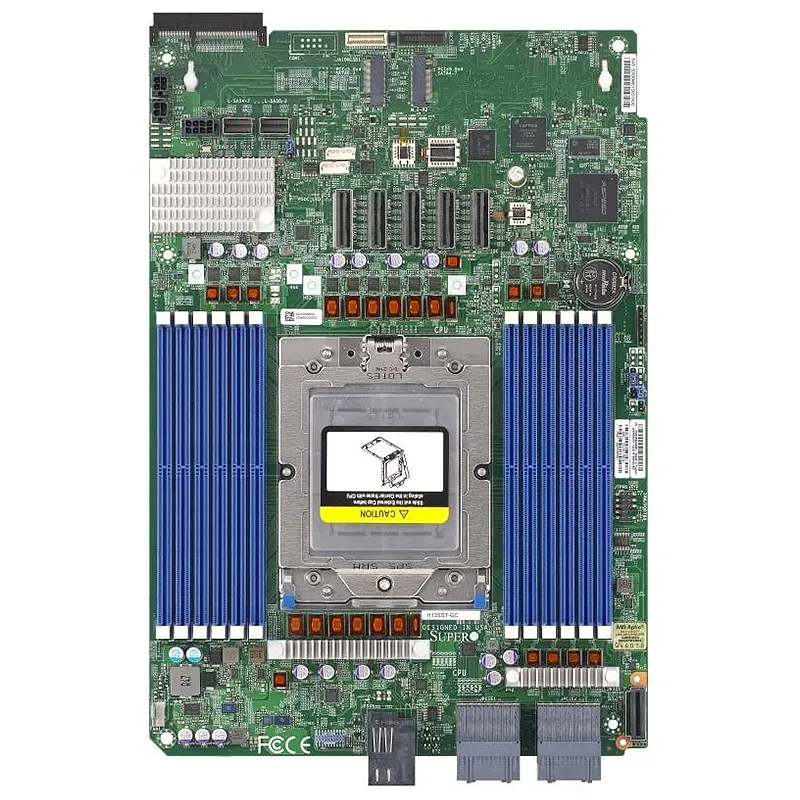

Supermicro MBD-H13SST-GC - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.4SMBIOS 3.5 or laterUEFI 2.8Plug and Play (PnP)USB Keyboard support

Graphics

1 ASPEED AST2600 BMC port(s)

TPM

1 TPM Header

M.2

M.2 Interface: 2 SATA/PCIe 4.0 x4Form Factor: 2280Key: M-Key

Product SKUs

Physical Stats

Processor

CPU
AMD EPYC 9004/9005 Series Processors (*AMD EPYC 9005 series drop-in support requires board revision 2.x)
Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
Core
Up to 160 cores, 320 threads

System Memory

Memory Capacity
12 DIMM slots
Up to 4.5TB 3DS ECC Registered RDIMM, DDR5-6000MT/s
Memory Type
4800/6000 MT/s ECC DDR5 RDIMM (3DS) Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor, 1DPC) Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor, 1DPC)* (*Board revision 2.x required)
DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 192GB, 256GB, 384GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

TPM
1 TPM Header
Others
4 MCIO (PCIe 5.0 x8) Port(s)
1 MCIO (PCIe 5.0 x8/SATA3) Port(s)
2 SlimSAS (x4) Port(s)

Expansion Slots

System BIOS

BIOS Type
AMI 32MB SPI Flash EEPROM
BIOS Features
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Plug and Play (PnP)
USB Keyboard support

Management

Power Configurations
ACPI Power Management, Power-on mode control for AC power loss recovery

Brand	Supermicro
BIOS Features	ACPI 6.4SMBIOS 3.5 or laterUEFI 2.8Plug and Play (PnP)USB Keyboard support
Graphics	1 ASPEED AST2600 BMC port(s)
TPM	1 TPM Header
M.2	M.2 Interface: 2 SATA/PCIe 4.0 x4Form Factor: 2280Key: M-Key
Chipset	System on Chip
DIMM Sizes	128GB, 16GB, 192GB, 24GB, 256GB, 32GB, 384GB, 48GB, 64GB, 96GB
BIOS Type	AMI 32MB SPI Flash EEPROM
Dimension	8.53" x 12.42" (21.67cm x 31.55cm)
PCIe	1 PCIe 4.0 x8 4C Slot
Form Factor	Proprietary GrandTwin
Memory Type	4800/6000 MT/s ECC DDR5 RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2600 BMC
Others	4 MCIO (PCIe 5.0 x8) Port(s)1 MCIO (PCIe 5.0 x8/SATA3) Port(s)2 SlimSAS (x4) Port(s)
Memory Voltage	1.1V
CPU	AMD EPYC 9004/9005 Series Processors (*AMD EPYC 9005 series drop-in support requires board revision 2.x)Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
SAS	Broadcom 3808 SAS3 (12 Gbps) controller for 8 SAS3 (12 Gbps) ports
Memory Capacity	12 DIMM slotsUp to 4.5TB 3DS ECC Registered RDIMM, DDR5-6000MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	320 threads, Up to 160 cores
