Supermicro MBD-B4SC1-CPU wholesale

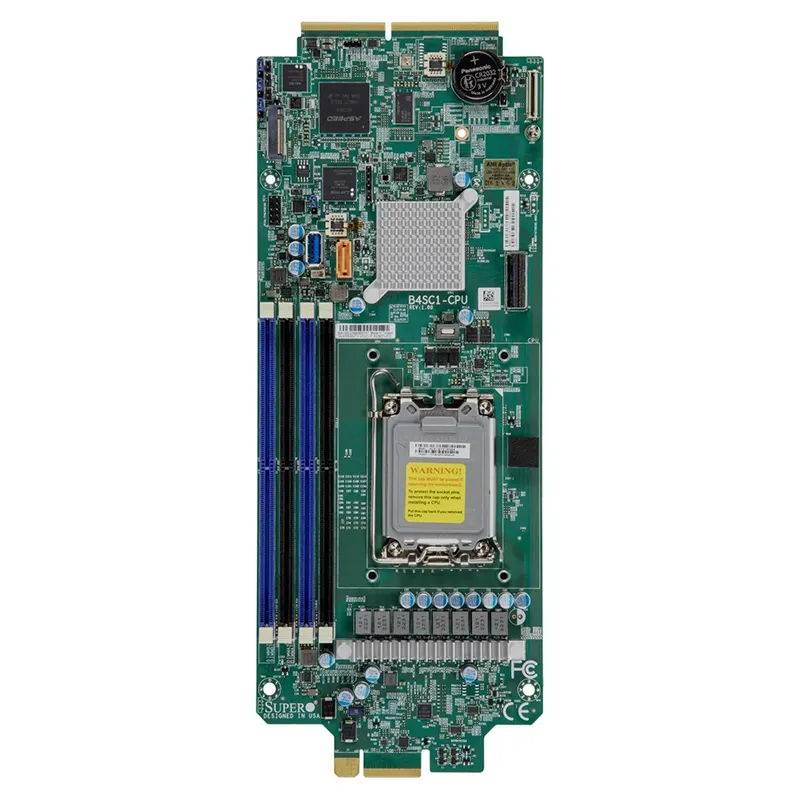

* NOTE: Image may not exactly match the product

Supermicro MBD-B4SC1-CPU

Quote1 Piece(MOQ)

BrandSupermicro
BIOS FeaturesACPI 6.4SMBIOS 3.5UEFI 2.8Plug and Play (PnP)PCI FW 3.3
TPM1 TPM Header
Network ControllersAIOM for LAN
M.222110Key: M-Key, M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280

Product SKUs

  • MBD-B4SC1-CPU

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    4.8″ x 12.6″ (12.192cm x 32.004cm)

Processor

  • CPU
    Intel Xeon E-2400/Pentium* Processor
    Single Socket V0 (FCBGA-1744) supported, CPU TDP supports Up to 95W TDP
  • Core
    Up to 8 cores

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s
  • Memory Type
    4400/4000/3600 MT/s
  • DIMM Sizes
    8GB, 16GB, 32GB
  • Memory Voltage
    1.1V
  • Error Detection
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C266
  • Network Controllers
    AIOM for LAN

Input / Output

  • SATA
    1 SATA3 (6Gbps) port(s)
  • TPM
    1 TPM Header
    1 TPM TPM 2.0 chip onboard

Expansion Slots

  • PCIe
    1 PCIe 4.0 x8 AIOM, 2x U.2 SATA 3.0 PCIe x4 Gen 4 plus M.2 2280/22110 via AOM-BPNIO-MSH2 OR,
    1 PCIe 4.0 x8 AIOM, Up to 2x 2.5″ SAS3 (12Gbps) drives via Avago 3008 controller on AOM-BPNIO-MSC
  • M.2
    M.2 Interface: 1 PCIe 4.0 x4
    Form Factor: 2280, 22110
    Key: M-Key

System BIOS

  • BIOS Type
    AMI 32MB AMI UEFI
  • BIOS Features
    ACPI 6.4
    SMBIOS 3.5
    UEFI 2.8
    Plug and Play (PnP)
    PCI FW 3.3

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism
Brand

Supermicro

BIOS Features

ACPI 6.4SMBIOS 3.5UEFI 2.8Plug and Play (PnP)PCI FW 3.3

TPM

1 TPM Header

Network Controllers

AIOM for LAN

M.2

22110Key: M-Key, M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280

Chipset

Intel C266

DIMM Sizes

16GB, 32GB, 8GB

BIOS Type

AMI 32MB AMI UEFI

Dimension

4.8" x 12.6" (12.192cm x 32.004cm)

PCIe

1 PCIe 4.0 x8 AIOM, 2x U.2 SATA 3.0 PCIe x4 Gen 4 plus M.2 2280/22110 via AOM-BPNIO-MSH2 OR, Up to 2x 2.5" SAS3 (12Gbps) drives via Avago 3008 controller on AOM-BPNIO-MSC

Form Factor

Proprietary

Memory Type

4400/4000/3600 MT/s

Application

Server

Memory Voltage

1.1V

CPU

CPU TDP supports Up to 95W TDP, Intel Xeon E-2400/Pentium* ProcessorSingle Socket Socket V0 (LGA-1700) supported

Hardware

Trusted Platform Module (TPM) 2.0

SATA

1 SATA3 (6Gbps) port(s)

Memory Capacity

4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s

Error Detection

Detects double-bit errors (using ECC memory)

Core

Up to 8 cores
