| Brand | Supermicro |
|---|---|
| BIOS Features | ACPI 6.0Plug and Play (PnP)BIOS rescue hot keysRiser card auto-detection supportSMBIOS 3.0 or later |
| Network Controllers | AIOM for LAN |
| M.2 | 2280Key: M-Key, M.2 Interface: 1 PCIe 4.0 x4Form Factor: 22110 |
| Chipset | W680 |
| DIMM Sizes | 128GB, 128GBUDIMM: 16GB, 16GB, 32GB, 64GB |
| BIOS Type | 32MB SPI Flash with AMI BIOS |
| Dimension | 4.8" x 12.6" (12.192cm x 32.004cm) |
| PCIe | 1 PCIe 4.0 x8 AIOM, 2x U.2 SATA 3.0 PCIe x4 Gen 4 plus M.2 2280/22110 via AOM-BPNIO-MSH2 OR, Up to 2x 2.5" SAS3 (12Gbps) drives via Avago 3008 controller on AOM-BPNIO-MSC |
| Form Factor | Proprietary |
| Memory Type | 4400 MT/s |
| Application | Server |
| CPU | 12th/13th Gen Intel Core i5/i7/i9 ProcessorsSingle Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 125W TDP |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Memory Capacity | 4 DIMM slotsUp to 128GB ECC UDIMM, DDR5-4400MT/s |
| Core | Up to 16 cores |
* NOTE: Image may not exactly match the product

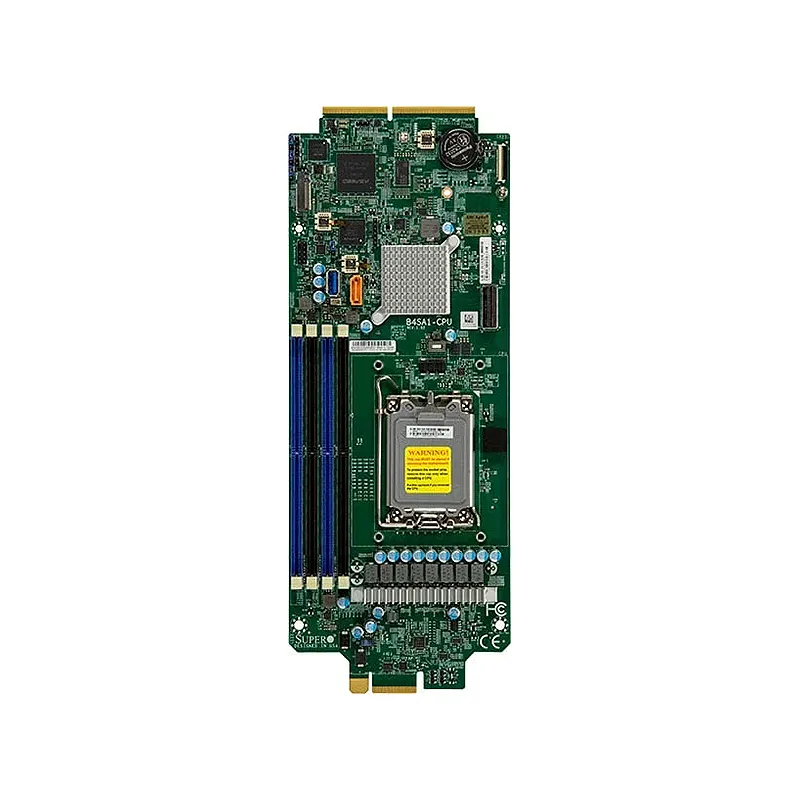

Supermicro MBD-B4SA1-CPU
Quote1 Piece(MOQ)
| Brand | Supermicro |
|---|---|
| BIOS Features | ACPI 6.0Plug and Play (PnP)BIOS rescue hot keysRiser card auto-detection supportSMBIOS 3.0 or later |
| Network Controllers | AIOM for LAN |
| M.2 | 2280Key: M-Key, M.2 Interface: 1 PCIe 4.0 x4Form Factor: 22110 |
| Chipset | W680 |
