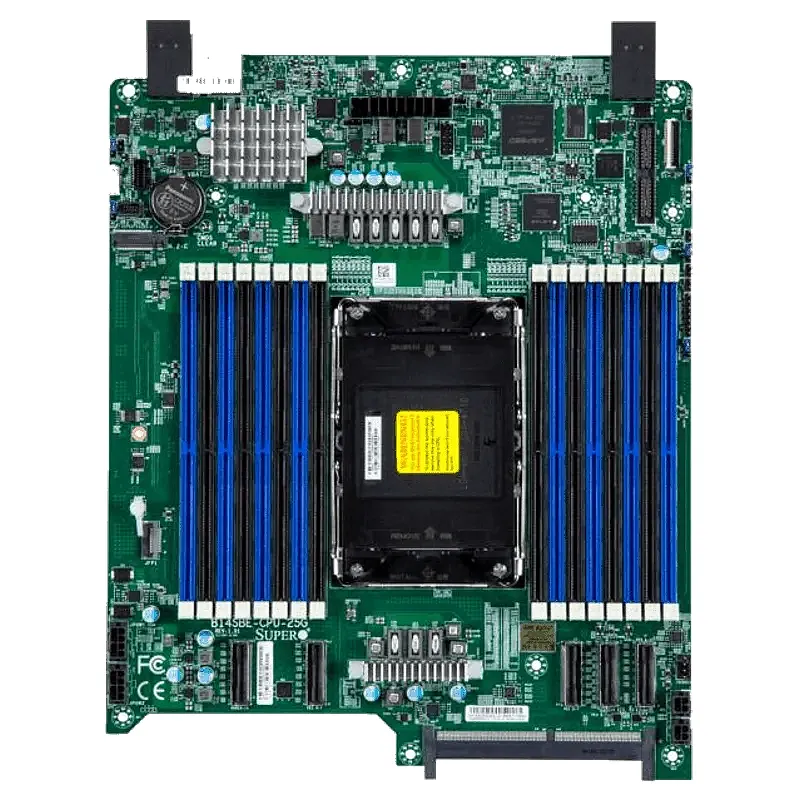

Supermicro MBD-B14SBE-CPU-25G - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9

TPM

1 TPM Header

Network Controllers

Dual LAN with Intel Ethernet Controller E810-XXVAM2, Two (2) 25GbE Ethernet ports from KR interface to BP

M.2

M.2 Interface: 1 PCIe 5.0 x4Form Factor: 2280/22110Key: M-Key

Product SKUs

Physical Stats

Processor

CPU
Intel Xeon 6700-series processors with E-cores
Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
Core
Up to 144 (E) cores

System Memory

Memory Capacity
16 DIMM slots
Up to 1TB 3DS ECC Registered RDIMM, DDR5-6400MT/s
Memory Type
6400 MT/s ECC DDR5 RDIMM (3DS) Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
DIMM Sizes
32GB, 64GB, 96GB, 128GB
RDIMM: 32GB, 64GB, 96GB, 128GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
System on Chip
IPMI
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Intel Ethernet Controller E810-XXVAM2, Two (2) 25GbE Ethernet ports from KR interface to BP

Input / Output

Expansion Slots

PCIe
1 PCIe 4.0 x16 Mezzanine card connector, For 6U 25G Dual port Mezzanine Card,
1 PCIe 4.0 x16 SIOM Slot, For AOM-BPNIO-SCE2 to support (2) Hot-plug U.2 NVMe/SAS/SATA; HW RAID with 3108,
5 PCIe 5.0 x8 MCIO connector, For GPU Riser/NVMe/AIOM add on module
M.2
M.2 Interface: 1 PCIe 5.0 x4
Form Factor: 2280/22110
Key: M-Key

System BIOS

Brand	Supermicro
BIOS Features	ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
TPM	1 TPM Header
Network Controllers	Dual LAN with Intel Ethernet Controller E810-XXVAM2, Two (2) 25GbE Ethernet ports from KR interface to BP
M.2	M.2 Interface: 1 PCIe 5.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	System on Chip
DIMM Sizes	128GB, 128GBRDIMM: 32GB, 32GB, 64GB, 96GB
BIOS Type	AMI 64MB AMI UEFI
Dimension	12.1" x 9.36" (30.74cm x 23.77cm)
PCIe	1 PCIe 4.0 x16 Mezzanine card connector, 1 PCIe 4.0 x16 SIOM Slot, 5 PCIe 5.0 x8 MCIO connector, For 6U 25G Dual port Mezzanine Card, For AOM-BPNIO-SCE2 to support (2) Hot-plug U.2 NVMe/SAS/SATA; HW RAID with 3108, For GPU Riser/NVMe/AIOM add on module
Form Factor	Proprietary
Memory Type	6400 MT/s ECC DDR5 RDIMM (3DS) Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.1V
CPU	CPU TDP supports Up to 350W TDP, Intel Xeon 6700-series processors with E-coresSingle Socket E2 (LGA-4710) supported
Memory Capacity	16 DIMM slotsUp to 1TB 3DS ECC Registered RDIMM, DDR5-6400MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 144 (E) cores
