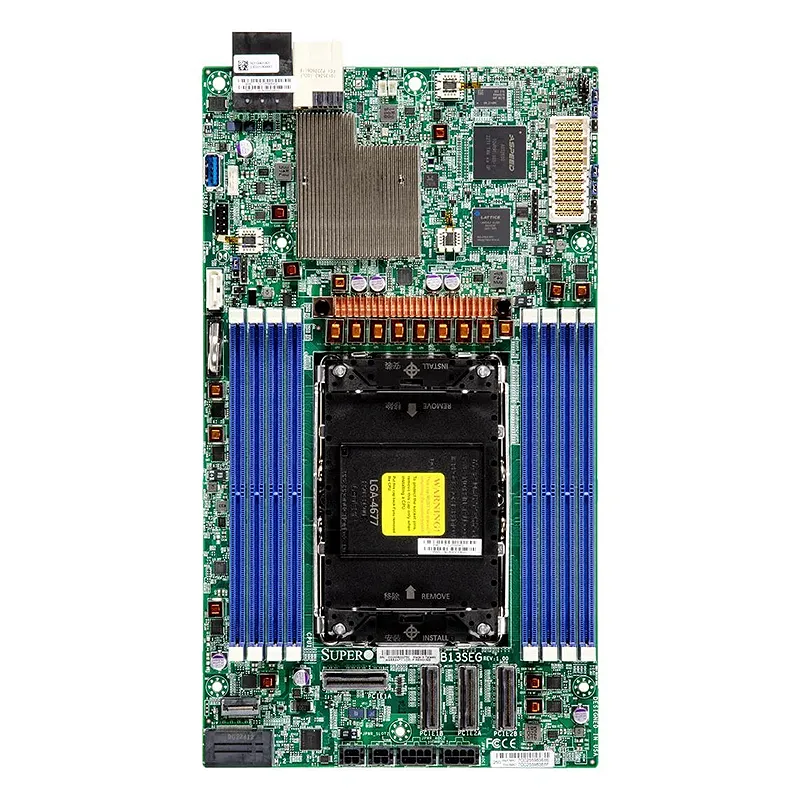

Supermicro MBD-B13SEG - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2

Graphics

1 ASPEED AST2600 BMC port(s)

TPM

1 TPM Header

Network Controllers

Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN

Product SKUs

Physical Stats

Processor

CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Single Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
*BIOS 2.1 or above is required to support 5th Gen Intel Xeon Scalable processors
Core
Up to 60 cores

System Memory

Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
1 PCIe 5.0 x16 Mezzanine card connector,
4 PCIe 5.0 x8 MCIO connector, For GPU Riser/E1S/NVMe/AIOM add on module
M.2
M.2 Interface: 2 PCIe 5.0 x4
Form Factor: 2280
Key: M-Key

System BIOS

BIOS Type
AMI 32MB AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2

Brand	Supermicro
BIOS Features	ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2
Graphics	1 ASPEED AST2600 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN
M.2	M.2 Interface: 2 PCIe 5.0 x4Form Factor: 2280Key: M-Key
Chipset	Intel C741
DIMM Sizes	128GB, 16GB, 256GB, 256GBRDIMM: 16GB, 32GB, 64GB
BIOS Type	AMI 32MB AMI UEFI
Dimension	6.3" x 11.169" (16cm x 28.37cm)
PCIe	1 PCIe 5.0 x16 Mezzanine card connector, 4 PCIe 5.0 x8 MCIO connector, For GPU Riser/E1S/NVMe/AIOM add on module
USB	1 USB 3 port(s) (1 type A)
Form Factor	Proprietary
Memory Type	5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.1V
CPU	5th Gen Intel XeonSingle Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Hardware	Trusted Platform Module (TPM) 2.0
Memory Capacity	8 DIMM slotsUp to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 60 cores
