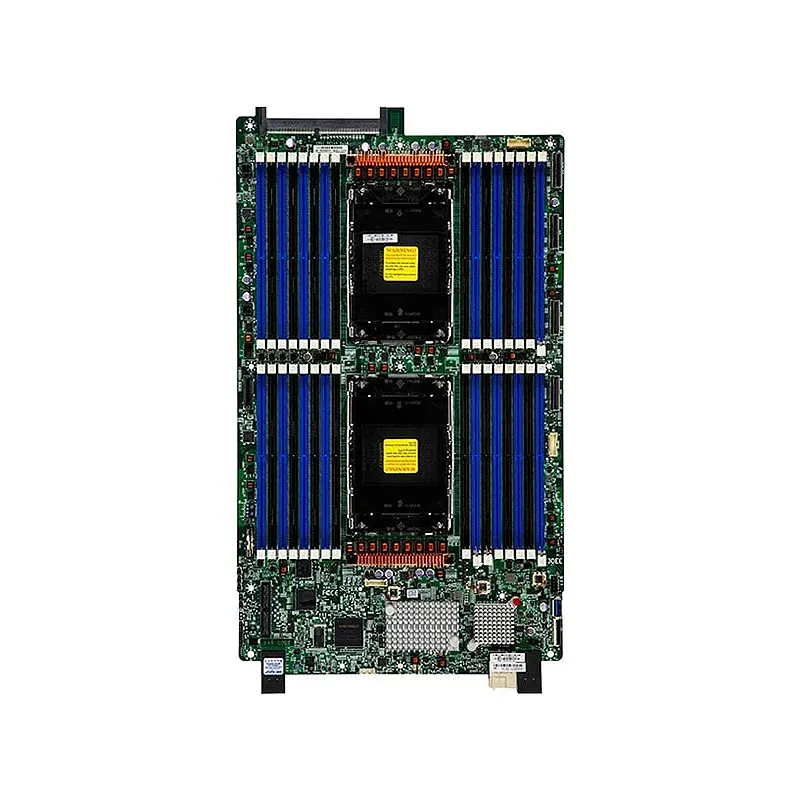

Supermicro MBD-B13DEE - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2

Graphics

Aspeed AST2600 BMC port(s)

TPM

1 TPM Header

Network Controllers

Dual LAN with Intel Ethernet Controller E810-XXVAM2

Product SKUs

Physical Stats

Processor

CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors and Intel Xeon Max Series processors
Dual Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
SP XCC, SP MCC, and MAX Series (HBM) SKUs are supported
Core
Up to 64 cores

System Memory

Memory Capacity
32 DIMM slots
Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC)
DIMM Sizes
16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB
RDIMM: Up to 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
1 PCIe 5.0 x16 Mezzanine card connector,
1 PCIe 5.0 X16 SIOM slot, For AOM-BPNIO-SNE/AOM-BPNIO-SCE to support 3x SATA3/NVMe or 3x SAS3 HDDs/SSDs,
1 PCIe 5.0 E1.S connector, For M.2 adapter to support one PCIe 5.0 X4 M.2 device
M.2
M.2 Interface: 1 PCIe 5.0 x4
Form Factor: 2280
Key: M-Key

System BIOS

BIOS Type
AMI 32MB AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2

Brand	Supermicro
BIOS Features	ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2
Graphics	Aspeed AST2600 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with Intel Ethernet Controller E810-XXVAM2
M.2	M.2 Interface: 1 PCIe 5.0 x4Form Factor: 2280Key: M-Key
Chipset	Intel C741
DIMM Sizes	128GB, 16GB, 256GBRDIMM: Up to 256GB, 32GB, 64GB, 96(XCC Only)GB
BIOS Type	AMI 32MB AMI UEFI
Dimension	10" x 16.5" (25.4cm x 41.91cm)
PCIe	1 PCIe 5.0 E1.S connector, 1 PCIe 5.0 x16 Mezzanine card connector, 1 PCIe 5.0 X16 SIOM slot, For AOM-BPNIO-SNE/AOM-BPNIO-SCE to support 3x SATA3/NVMe or 3x SAS3 HDDs/SSDs, For M.2 adapter to support one PCIe 5.0 X4 M.2 device
USB	1 USB 3 port(s) (1 type A)
Form Factor	Proprietary
Memory Type	5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC)
Application	Server
IPMI	ASPEED AST2600 BMC
Others	4 MCIO PCIe 5.0 x8
Memory Voltage	1.1V
CPU	5th Gen Intel XeonDual Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
SATA	1, Intel C741 controller for 3 SATA3 ports; RAID 0
Memory Capacity	32 DIMM slotsUp to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 64 cores
