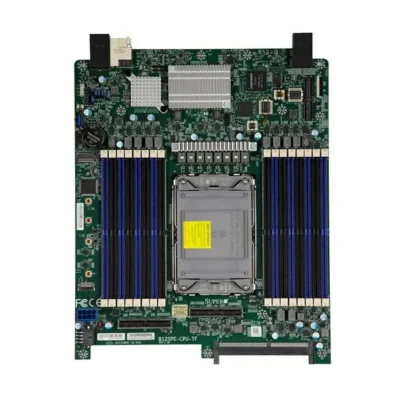

Supermicro MBD-B12SPE-CPU-25G - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Network Controllers

Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN

M.2

M.2 Interface: 1 SATA/PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key

Chipset

Intel C621A

BIOS Type

256MB SPI Flash with AMI BIOS

Product SKUs

Physical Stats

Processor

CPU
3rd Gen Intel Xeon Scalable processors
Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP

System Memory

Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Expansion Slots

PCIe
1 PCIe 4.0 x8 for Add-On-Module (AOM)
Onboard PCIe Gen3/4 x 32 connectors for GPU riser/ PCIe cable
One PCIe Gen3/4 x 8 Mezzanine card connector for network AOM
M.2
M.2 Interface: 1 SATA/PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-Key
One Hybrid (PCIe Gen3 x 4 /SATA3) M.2 connector from PCH

System BIOS

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support

Brand	Supermicro
Network Controllers	Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN
M.2	M.2 Interface: 1 SATA/PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	Intel C621A
BIOS Type	256MB SPI Flash with AMI BIOS
Dimension	9.358" x 11.408" (23.77cm x 28.98cm)
PCIe	1 PCIe 4.0 x8 for Add-On-Module (AOM)
Form Factor	Proprietary
Memory Type	3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.2V
CPU	3rd Gen Intel Xeon Scalable processorsSingle Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Hardware	Trusted Platform Module (TPM) 2.0
Memory Capacity	16 DIMM slotsUp to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
