* NOTE: Image may not exactly match the product

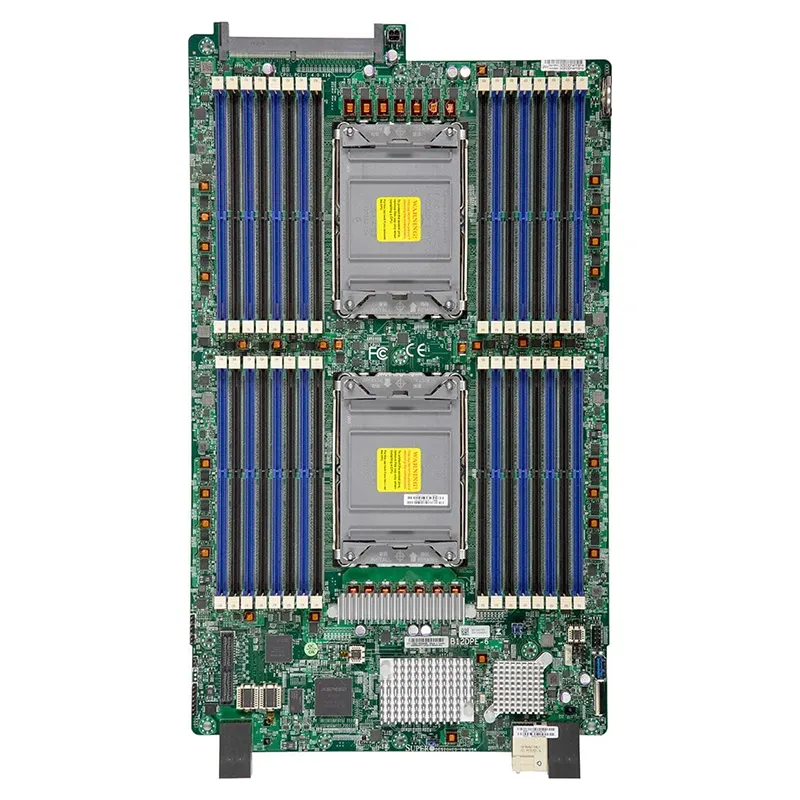

Supermicro MBD-B12DPE-6

Quote1 Piece(MOQ)

BrandSupermicro
BIOS FeaturesACPI 6.1UEFI 2.7SMBIOS 2.8SMBIOS 3.1PCI FW 3.2Plug and Play (PnP)
Network ControllersDual LAN with 25GbE with Mellanox ConnectX-4 Lx EN, Two (2) 10GbE Ethernet ports from KR interface to BP
ChipsetIntel C621A
DIMM Sizes128GB, 16GB, 32GB, 64GB, 64GBRDIMM: 8GB, 8GB

Product SKUs

  • MBD-B12DPE-6

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    9.36″ x 16.66″ (23.77cm x 42.31cm)

Processor

  • CPU
    3rd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
  • Core
    Up to 40 cores

System Memory

  • Memory Capacity
    32 DIMM slots
    Up to 8TB ECC RDIMM, DDR4-3200MT/s
  • Memory Type
    3200/2933/2666 MT/s ECC DDR4 RDIMM
  • DIMM Sizes
    8GB, 16GB, 32GB, 64GB
    RDIMM: 8GB, 16GB, 32GB, 64GB, 128GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C621A
  • Network Controllers
    Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN, Two (2) 10GbE Ethernet ports from KR interface to BP

Expansion Slots

  • PCIe
    1 PCIe 4.0 x16 slots (16/NA/16/NA or 8/8/8/8)

System BIOS

  • BIOS Type
    256MB SPI Flash EEPROM with AMI BIOS
  • BIOS Features
    ACPI 6.1
    UEFI 2.7
    SMBIOS 2.8
    SMBIOS 3.1
    PCI FW 3.2
    Plug and Play (PnP)
Brand

Supermicro

BIOS Features

ACPI 6.1UEFI 2.7SMBIOS 2.8SMBIOS 3.1PCI FW 3.2Plug and Play (PnP)

Network Controllers

Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN, Two (2) 10GbE Ethernet ports from KR interface to BP

Chipset

Intel C621A

DIMM Sizes

128GB, 16GB, 32GB, 64GB, 64GBRDIMM: 8GB, 8GB

BIOS Type

256MB SPI Flash EEPROM with AMI BIOS

Dimension

9.36" x 16.66" (23.77cm x 42.31cm)

PCIe

1 PCIe 4.0 x16 slots (16/NA/16/NA or 8/8/8/8)

Form Factor

Proprietary

Memory Type

3200/2933/2666 MT/s ECC DDR4 RDIMM

Application

Server

Memory Voltage

1.2V

CPU

3rd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP

Hardware

Trusted Platform Module (TPM) 2.0

Memory Capacity

32 DIMM slotsUp to 8TB ECC RDIMM, DDR4-3200MT/s

Error Detection

Corrects single-bit errors

Core

Up to 40 cores
