- Dual Socket E (LGA-4677) 5th/4th Generation Intel Xeon Scalable processors. Up to 270W TDP.
- Supports 32 DIMMs with 2DPC, up to 8TB memory capacity with 32 DIMMs of 256GB 3DS RDIMM DDR5-5600 ECC memory
- Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
- 24x hot-swap E1.S (9.5mm or 15mm) NVMe drive bays
- Redundant Titanium 2000W Power Supplies

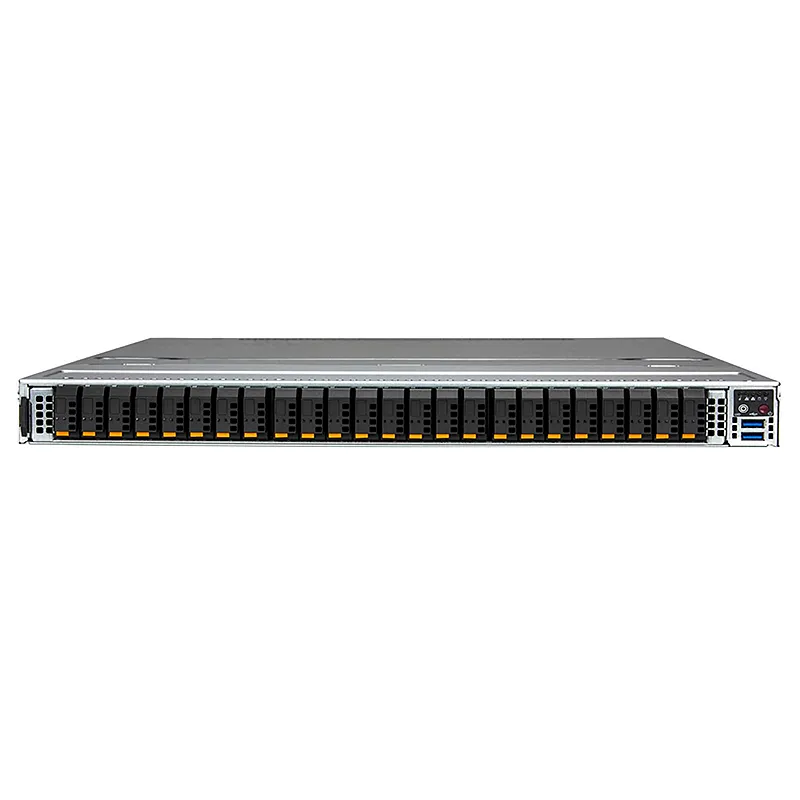

Storage SuperServer SSG-121E-NES24R (Complete System Only )
Quote1 Pieces ( MOQ )
Product SKUs | SuperServer SSG-121E-NES24R (Silver) |
---|---|
Motherboard | Super X13DSF-A |
CPU | Dual Socket E (LGA-4677), 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors |
Note | Supports 145W - 270W TDP CPUs (Air Cooled) |
Max GPU Count | Up to 2 double-width GPU(s) |
Product SKUs | SuperServer SSG-121E-NES24R (Silver) |
---|---|
Motherboard | Super X13DSF-A |
CPU | Dual Socket E (LGA-4677), 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors |
Note | Supports 145W – 270W TDP CPUs (Air Cooled) |
Max GPU Count | Up to 2 double-width GPU(s) |
CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
GPU-GPU Interconnect | PCIe |
Memory | Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM |
Memory Voltage | 1.1 V |
Chipset | Intel C741 |
Network Connectivity | Via AIOM |
IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
Chassis Form Factor | 1U Rackmount |
Chassis Model | CSE-126ES2-R2K08P |
Height | 1.7" (43.6mm) |
Width | 17.2" (438.4mm) |
Depth | 30.4" (773.25mm) |
Package | 7.87" (H) x 23.81" (W) x 40.55" (D) |
Weight | Net Weight: 48 lbs (21.8 kg), Gross Weight: 68.74 lbs (31.2 kg) |
