- Single Socket SP5 AMD EPYC 9004 Series processors. Up to 300W TDP.
- Supports 24 DIMMs with 2DPC, up to 6TB memory capacity with 24 DIMMs of 256GB 3DS RDIMM/RDIMM DDR5 ECC memory
- Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
- 16x hot-swap E3.S (7.5mm) NVMe drive bays
- Redundant Titanium 1600W Power Supplies

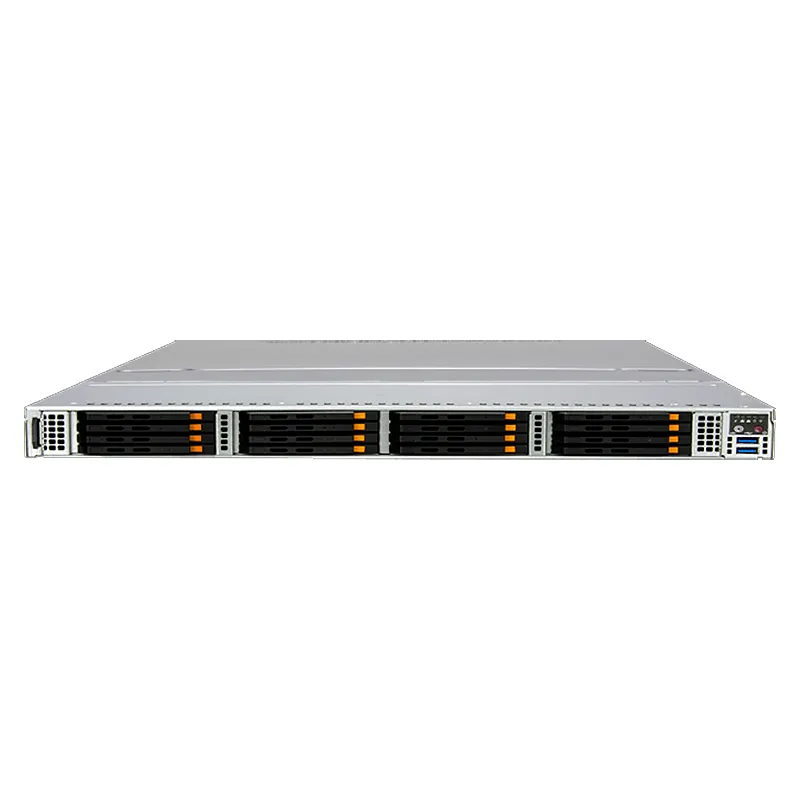

Storage A+ Server ASG-1115S-NE316R (Complete System Only )
Quote1 Pieces ( MOQ )
| Product SKUs | A+ Server ASG-1115S-NE316R (Silver) |
|---|---|
| Motherboard | Super H13SSF |
| CPU | Single Socket SP5 AMD EPYC 9004 Series Processor featuring the 3D V-Cache Technology |
| Core Count | Up to 96C/192T |
| Note | Supports 200W - 300W TDP CPUs (Air Cooled) |
| Product SKUs | A+ Server ASG-1115S-NE316R (Silver) |
|---|---|
| Motherboard | Super H13SSF |
| CPU | Single Socket SP5 AMD EPYC 9004 Series Processor featuring the 3D V-Cache Technology |
| Core Count | Up to 96C/192T |
| Note | Supports 200W – 300W TDP CPUs (Air Cooled) |
| Memory | Slot Count: 24 DIMM slots, Max Memory (2DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM |
| Chipset | AMD System on Chip |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Chassis Form Factor | 1U Rackmount |
| Chassis Model | CSE-126E32-R1K62P |
| Height | 1.7" (43.6mm) |
| Width | 17.2" (438.4mm) |
| Depth | 30.4" (773.25mm) |
| Package | 7.87" (H) x 23.81" (W) x 40.55" (D) |
| Weight | Net Weight: 48 lbs (21.8 kg), Gross Weight: 68.74 lbs (31.2 kg) |
