Brand | Huawei |
---|---|
Warranty | 1 Year |
Part Number | 98011606 |
Model | S5736-S48S4X-A |
Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 228.0 mm (1.72 in. x 17.4 in. x 9.0 in.) |
Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm × 555 mm × 345 mm (3.54 in. x 21.85 in. x 13.58 in.) |
Chassis height [U] | 1 U |
Weight without packaging [kg(lb)] | 3.6 kg (7.9 lb) |
Weight with packaging [kg(lb)] | 4.7 kg (10.36 lb) |
Typical power consumption [W] | 87 W |
Typical heat dissipation [BTU/hour] | 296.85 BTU/hour |
Maximum power consumption [W] | 111 W |
Maximum heat dissipation [BTU/hour] | 378.74 BTU/hour |
Static power consumption [W] | 39 W |
MTBF [years] | 41.97 years |
MTTR [hours] | 2 hours |
Availability | > 0.99999 |
Noise at normal temperature (acoustic power) [dB(A)] | 56.8 dB(A) |
Noise at normal temperature (acoustic pressure) [dB(A)] | 44.8 dB(A) |
Number of card slots | 0 |
Number of power slots | 0 |
Number of fans modules | 3 |
Redundant power supply | Not supported |
Long-term operating temperature [°C(°F)] | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
Short-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
Power supply mode | AC built-in |
Rated input voltage [V] | AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC |
Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC |
Maximum input current [A] | 6.0 A |
Memory | 2 GB |
Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
Console port | RJ45 |
Eth Management port | RJ45 |
USB | Not supported |
RTC | Supported |
RPS input | Not supported |
Service port surge protection [kV] | – |
Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
Ingress protection level (dustproof/waterproof) | IP20 |
Types of fans | Built-in |
Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
Airflow direction | Air intake from left and front, air exhaustion from right |
PoE | Not supported |
Certification | EMC certification, Safety certification, Manufacturing certification |

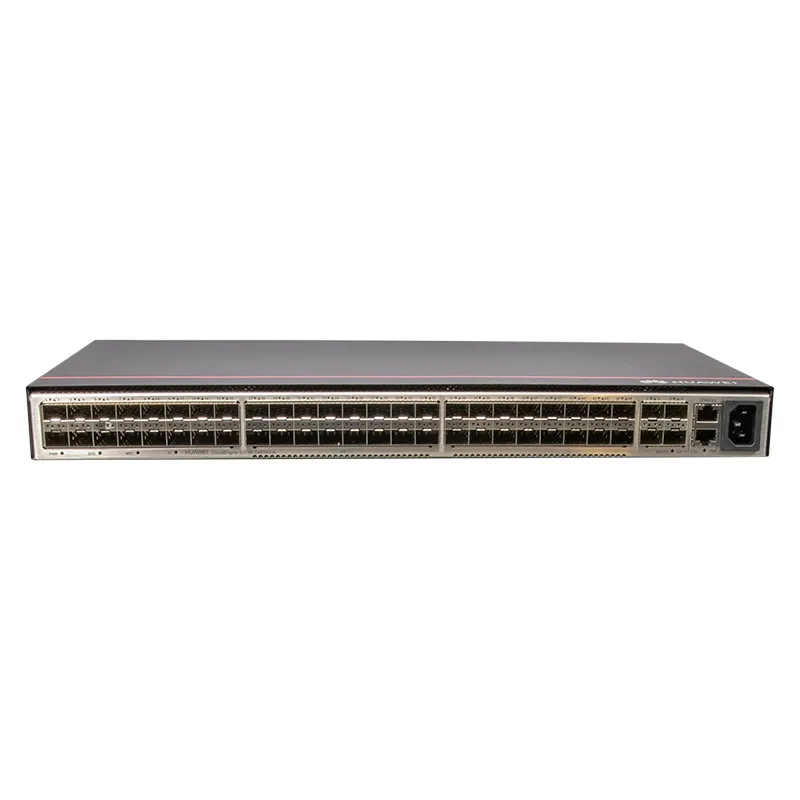

S5736-S48S4X-A base (48*GE SFP ports, optional RTU upgrade to 10G, 4*10GE SFP+ ports, AC power supply, front access)
