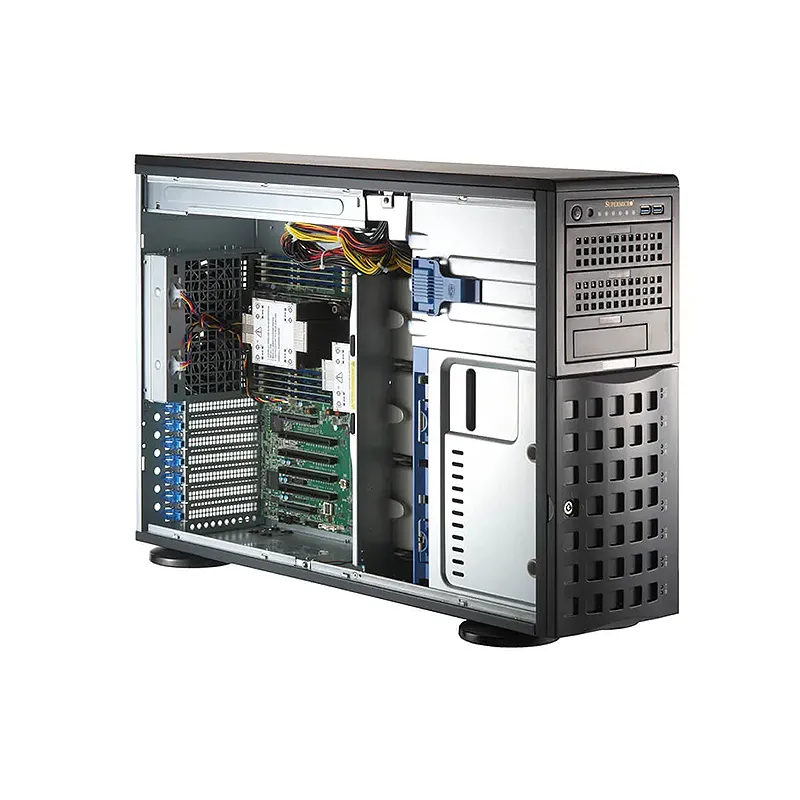

Mainstream SuperServer SYS-741P-TR - HYPERTEK SYSTEMS B.V

Product SKUs

Motherboard

Processor

CPU
Dual Socket E (LGA-4677)
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors

System Memory

Memory
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

On-Board Devices

Input / Output

System BIOS

Management

Chassis

Dimensions and Weight

Front Panel

LED
HDD activity
Network activity
Power status
System information (overheat/UID)
Buttons
Power On/Off
System Reset

Expansion Slots

PCI-Express (PCIe) Configuration
Default 2 PCIe 5.0 x8 FHFL slots 4 PCIe 5.0 x16 FHFL slots
M.2
2 M.2 PCIe 4.0 x2 NVMe slots (M-key)

Drive Bays / Storage

Drive Bays Configuration
Default: Total 8 bays 4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bays 4 front hot-swap 3.5″ SAS*/SATA drive bays
Option A: Total 8 bays 4 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bays 4 front hot-swap 2.5″ SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
2 M.2 NVMe slots (M-key)
Peripheral Bays
3 5.25″ DVD bays (optional)

System Cooling

Power Supply

Brand	Supermicro
Products Status	New
Applications	Application and data serving, Compute Intensive Applications, Enterprise Server, Virtualization
Max GPU	2
CPU Type	5th Gen Intel Xeon/4th Gen Intel Xeon Scalable processors
Total PCI-E Slots	6
Drives	8
Drive Form Factors	3.5"
Form Factor	Tower/4U
Generation	X13
Interface	NVMe (Optional), SATA (Native)
SATA	SATA (6Gbps)
LED	HDD activityNetwork activityPower statusSystem information (overheat/UID)
Serial	1 COM port(Rear)
Network Connectivity	2 RJ45 1GbEView AOC Options
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type	AMI 32MB SPI Flash EEPROM
Package	24.6" (H) x 14" (W) x 31.3" (D)
Depth	25.5" (647 mm)
Fans	3 middle Fan(s)2 rear Fan(s)
Height	17.8" (452 mm)
Buttons	Power On/OffSystem Reset
Peripheral Bays	3 5.25" DVD bays (optional)
M.2	2 M.2 NVMe slots (M-key)
Memory	Slot Count: 16 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMMView Memory Options
Width	7" (178 mm)
Video	1 VGA port
ROHS	RoHS Compliant
Note	Supports up to 300W TDP CPUs (Air Cooled)
Weight	Gross Weight: 73.5 lbs (33.9 kg)Net Weight: 56 lbs (25.9 kg)
Drive Bays Configuration	Default: Total 8 baysOption A: Total 8 bays(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
USB	2 USB 3.0 ports(front)4 USB 3.0 ports(rear)
Available Color	Black
PCI-Express (PCIe) Configuration	Default
TPM	1 TPM Onboard/port 80
CPU	Dual Socket E (LGA-4677)5th Gen Intel Xeon
Chipset	Intel C741
DOM	DOM
