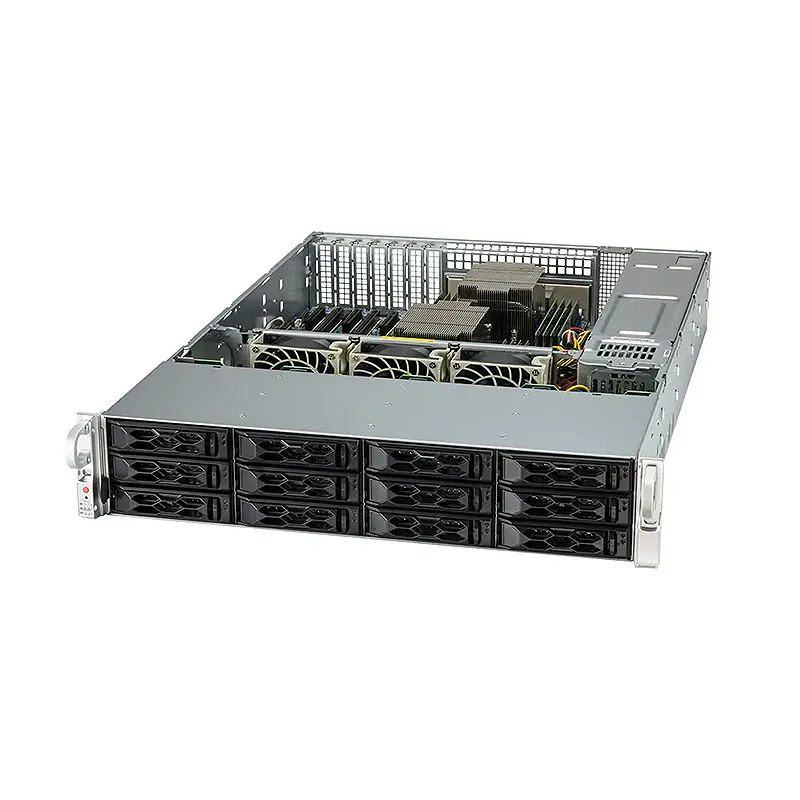

Mainstream A+ Server AS -2024S-TR - HYPERTEK SYSTEMS B.V

Product SKUs

Motherboard

Processor

System Memory

Memory
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
1.2V

On-Board Devices

Input / Output

Management

Chassis

Dimensions and Weight

Front Panel

LED
HDD activity LED
Information LED
Network activity LEDs
Power Fail LED
Power status LED
Buttons
Power On/Off button
Reset button

Expansion Slots

PCI-Express (PCIe) Configuration
Default 3 PCIe 4.0 x8 LP slots 3 PCIe 4.0 x16 LP slots

Drive Bays / Storage

Drive Bays Configuration
Default: Total 12 bays 4 front hot-swap 3.5″ NVMe drive bays 8 front hot-swap 3.5″ SAS*/SATA drive bays
Option A: Total 12 bays 12 front hot-swap 2.5″ SAS/SATA drive bays
(*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
1 M.2 NVMe slot (M-key 2280/22110)

System Cooling

Power Supply

Brand	Supermicro
Products Status	New
Applications	Application and data serving, Compute Intensive Applications, Data Center Optimized, Enterprise Server, Model analysis, Virtualization
Max GPU	2
CPU Type	AMD EPYC 7002/7003 Series Processors
Total PCI-E Slots	6
Drives	12
Drive Form Factors	3.5"
Form Factor	2U
Generation	H12
Interface	NVMe (Native), SATA (Native)
LED	HDD activity LEDInformation LEDNetwork activity LEDsPower Fail LEDPower status LED
Air Shroud	1 Clear Plastic Air Shroud
Network Connectivity	2 RJ45 1GbEView AOC Options
LAN	1 RJ45 1 GbE Dedicated BMC LAN port2 RJ45 1 GbE LAN ports
Package	11.4" (H) x 26.7" (W) x 34.5" (D)
Depth	25.5" (648 mm)
Fans	3 Middle 80mm Fan(s)
Height	3.5" (89 mm)
Buttons	Power On/Off buttonReset button
M.2	1 M.2 NVMe slot (M-key 2280/22110)
Memory	Slot Count: 16 DIMM slotsMax Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMMView Memory Options
Width	17.2" (437 mm)
Video	1 VGA port
Core Count	Up to 64C/128T; Up to 256MB Cache per CPU
Note	Supports up to 240W TDP CPUs (Air Cooled)
Weight	Gross Weight: 60 lbs (27.2 kg)Net Weight: 33.5 lbs (15.2 kg)
Drive Bays Configuration	Default: Total 12 baysOption A: Total 12 bays(*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
USB	2 USB 2.0 ports(rear)2 USB 3.0 ports(rear)
Available Color	Silver
PCI-Express (PCIe) Configuration	Default
CPU	Dual Socket SP3AMD EPYC 7002/7003 Series Processors
Chipset	AMD SP3
Memory Voltage	1.2V
DOM	DOM
