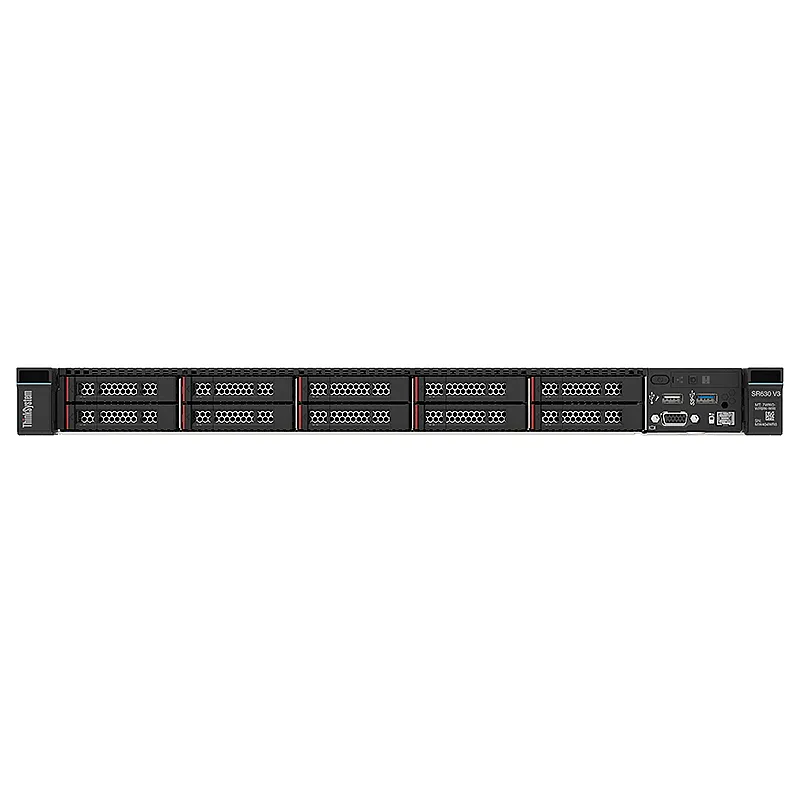

Lenovo ThinkSystem SR630 V3 Rack Server

A maximized 1U format server for maximum performance
  • Up to 2x 5th Gen Intel Xeon Scalable processors
  • Up to 32x TruDDR5 5600MHz memory
  • Industry leading backplane technology with Lenovo AnyBay™ SSD/HDD drive support
  • Up to 12x low latency NVMe SSD for high performance storage
  • Support 16x EDSFF-based E1.S drives
  • Up to 5x PCIe Gen4/Gen5 slots + 1x OCP 3.0 for I/O flexibility
  • Up to 3x 75W GPUs for graphics-intensive workloads

Quote1 Piece(MOQ)

Features

Tech Specs

Form Factor/Height

1U rack server

Processor

Up to 2x 5th Gen Intel ? ?Xeon ? ?Scalable processors, up to 64 cores and 350W TDP

Drive Bays

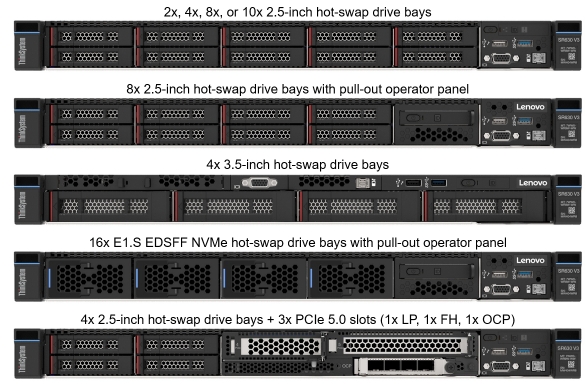

  • Up to 4x 3.5?? or 12x 2.5?? or 16x EDSFF E1.S drives

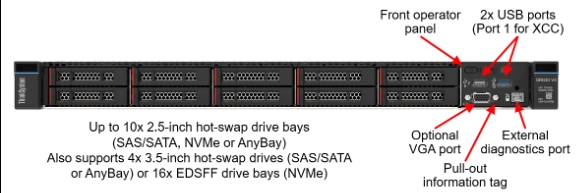

  • Front: up to 4x 3.5?? / 10x 2.5?? /16x EDSFF E1.short hot swap drives

  • Rear: 2x 2.5??; 7mm SATA/NVMe hot-swap boot drives, support RAID

  • Internal 2x M.2 SATA/NVMe boot drives, support RAID

  • Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10)

Memory

Supports up to 32x TruDDR5 3DS/RDIMMs

Expansion Slots

Up to 5x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal HBA/RAID adapter that doesn’t occupy a standard PCIe slot

GPUs

Up to 3x single-width 75W GPUs

Network Interface

LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters

Ports
  • Front: 1x USB 3.1 G1, 1x USB 2.0 for BMC, 1x VGA (optional), 1x external diagnostics handset port (optional)

  • Rear: 3x USB 3.0 G1, 1x VGA, 1x 1GbE RJ45 (management), 2nd 1GbE management port (optional in OCP slot location), and 1x Serial port (optional)

HBA/RAID Support

SATA with SW RAID (0,1,5,10); Common building blocks including standard and Internal PCIe RAID/HBA adapters.

Power

Dual Redundant AC & DC; Platinum & Titanium; 750W, 1100W, 1800W, and 1100W -48V DC Platinum

Systems Management

Lenovo XClarity Controller

OSes Supported

Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information.

Limited Warranty

1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades
