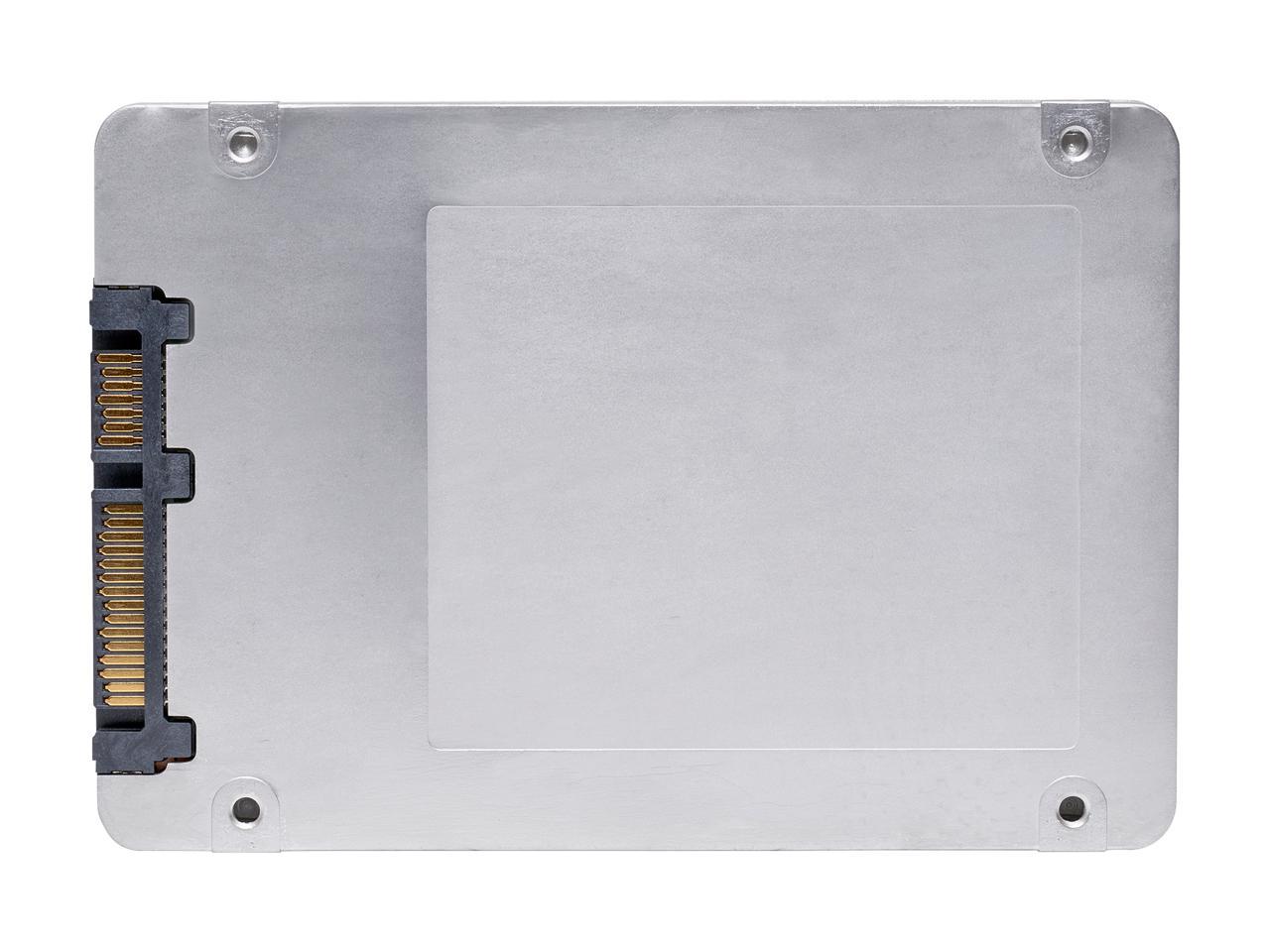

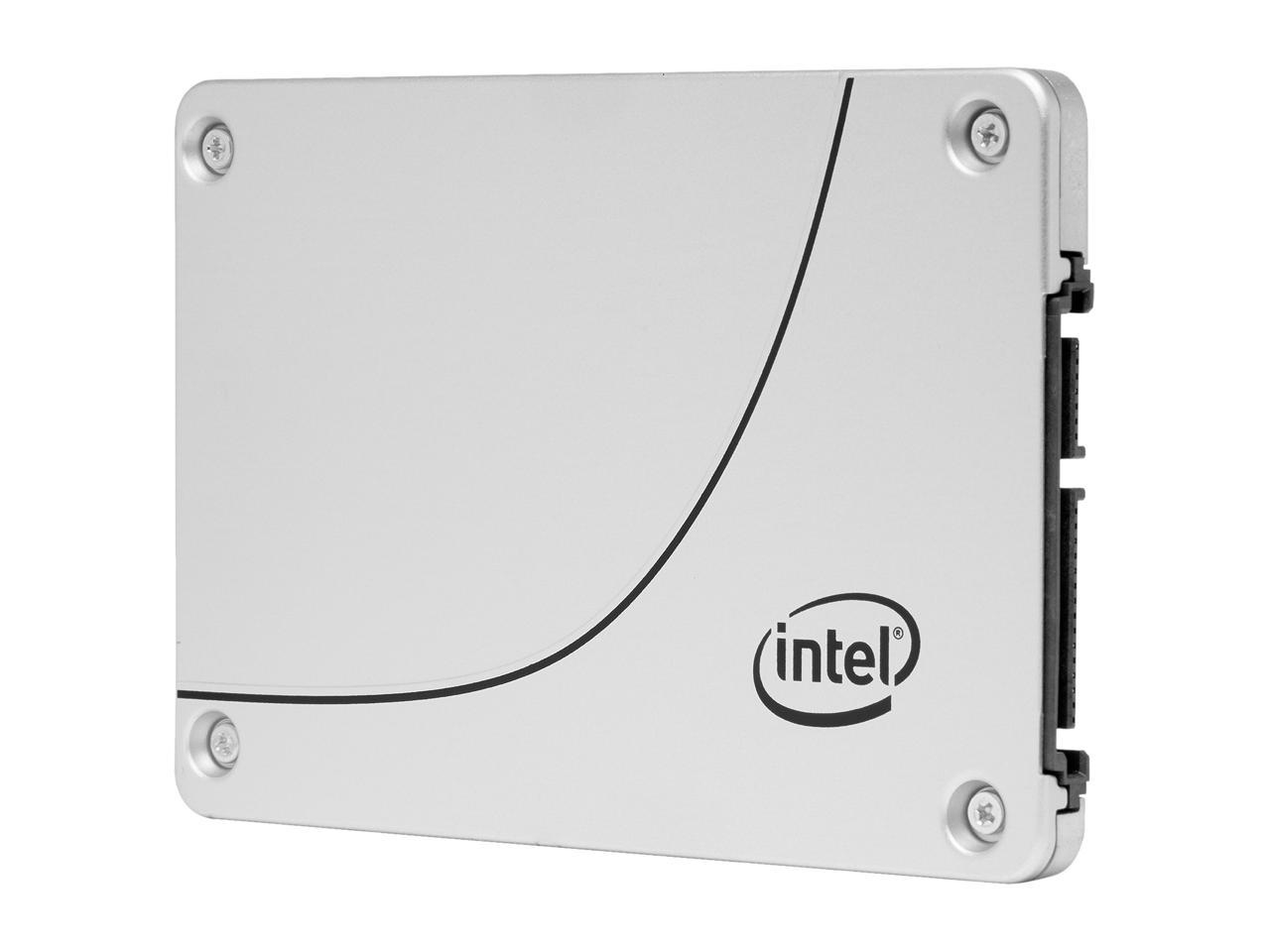

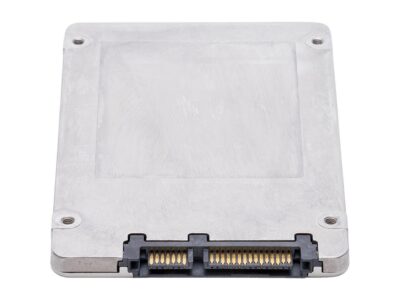

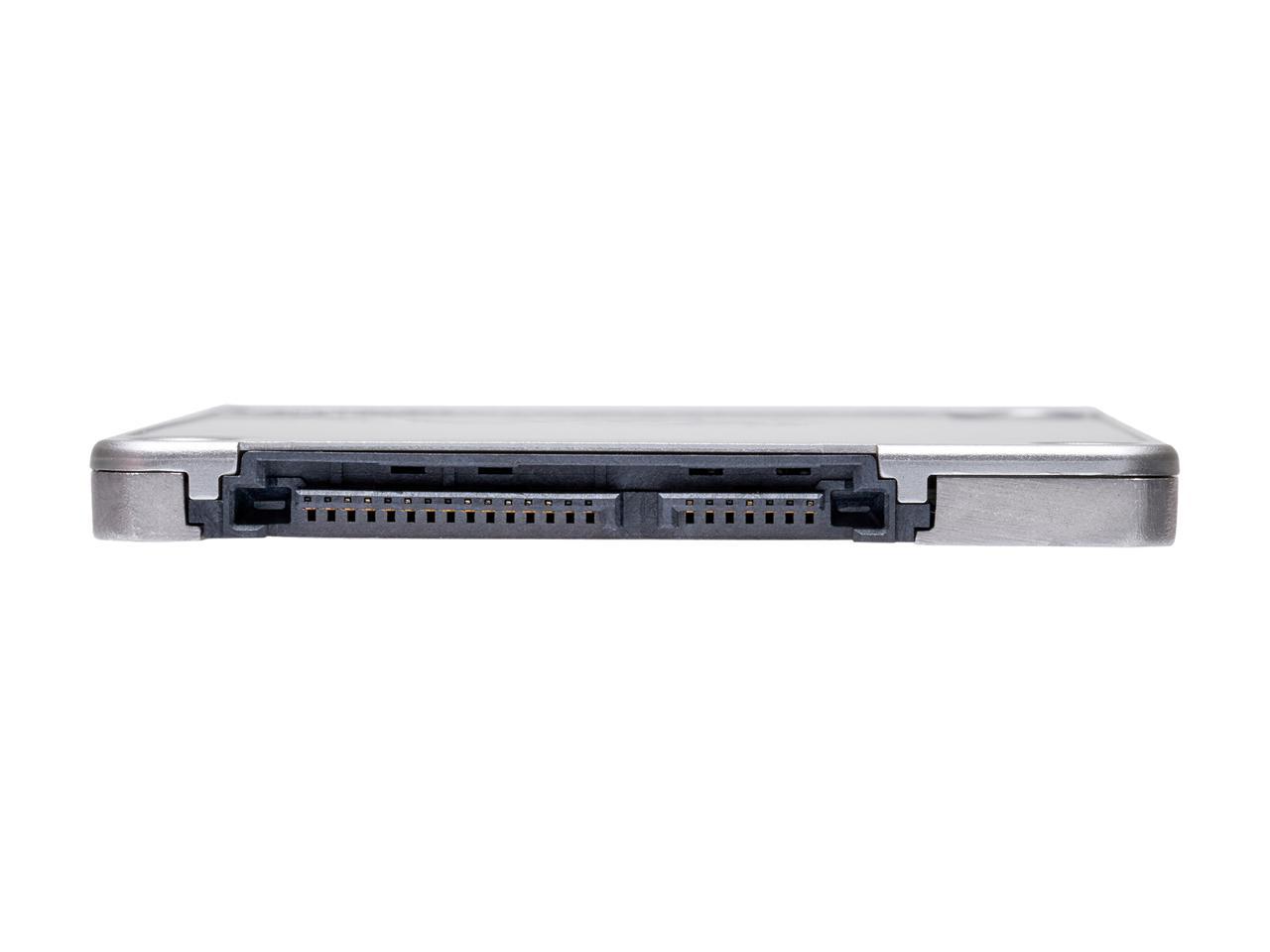

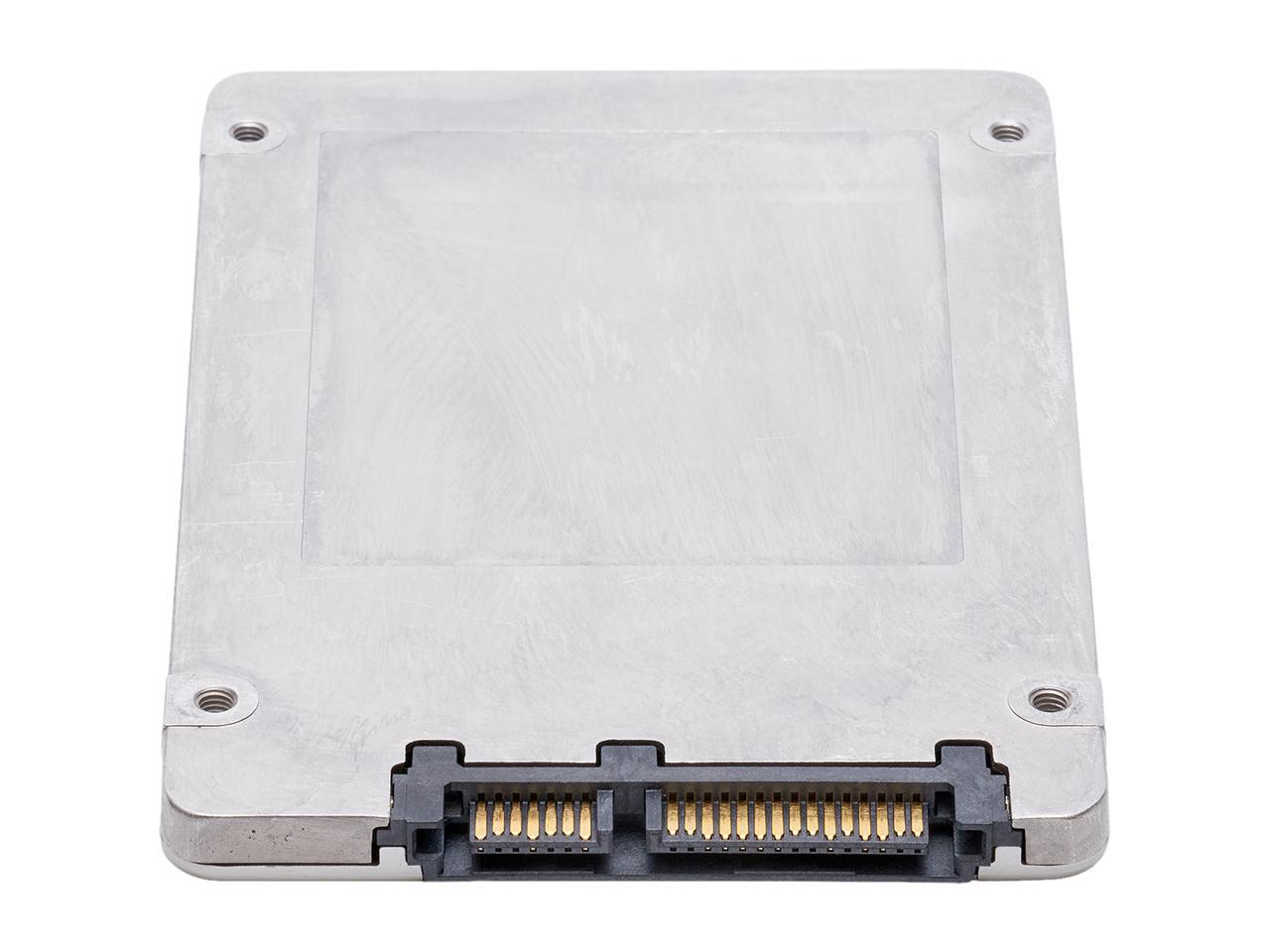

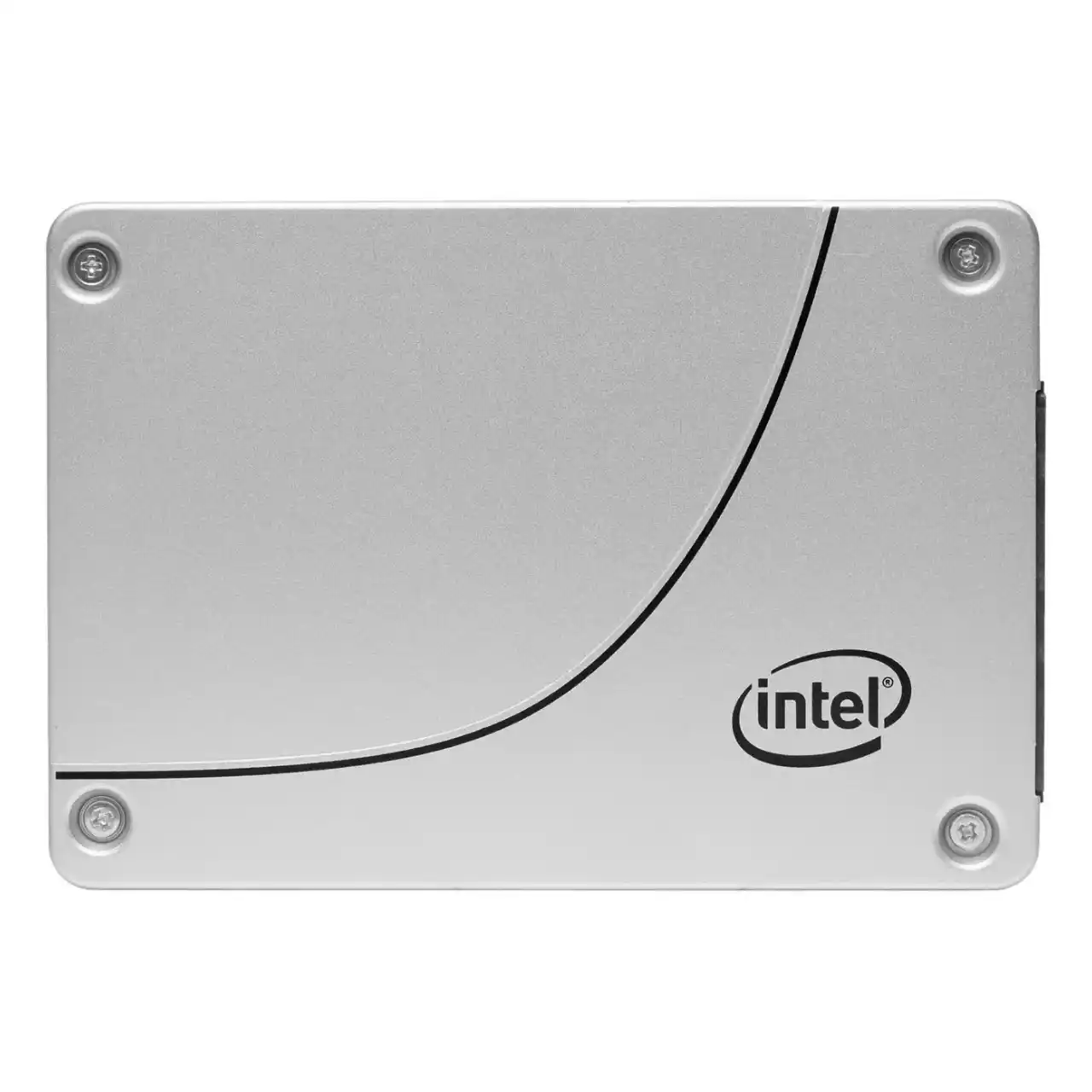

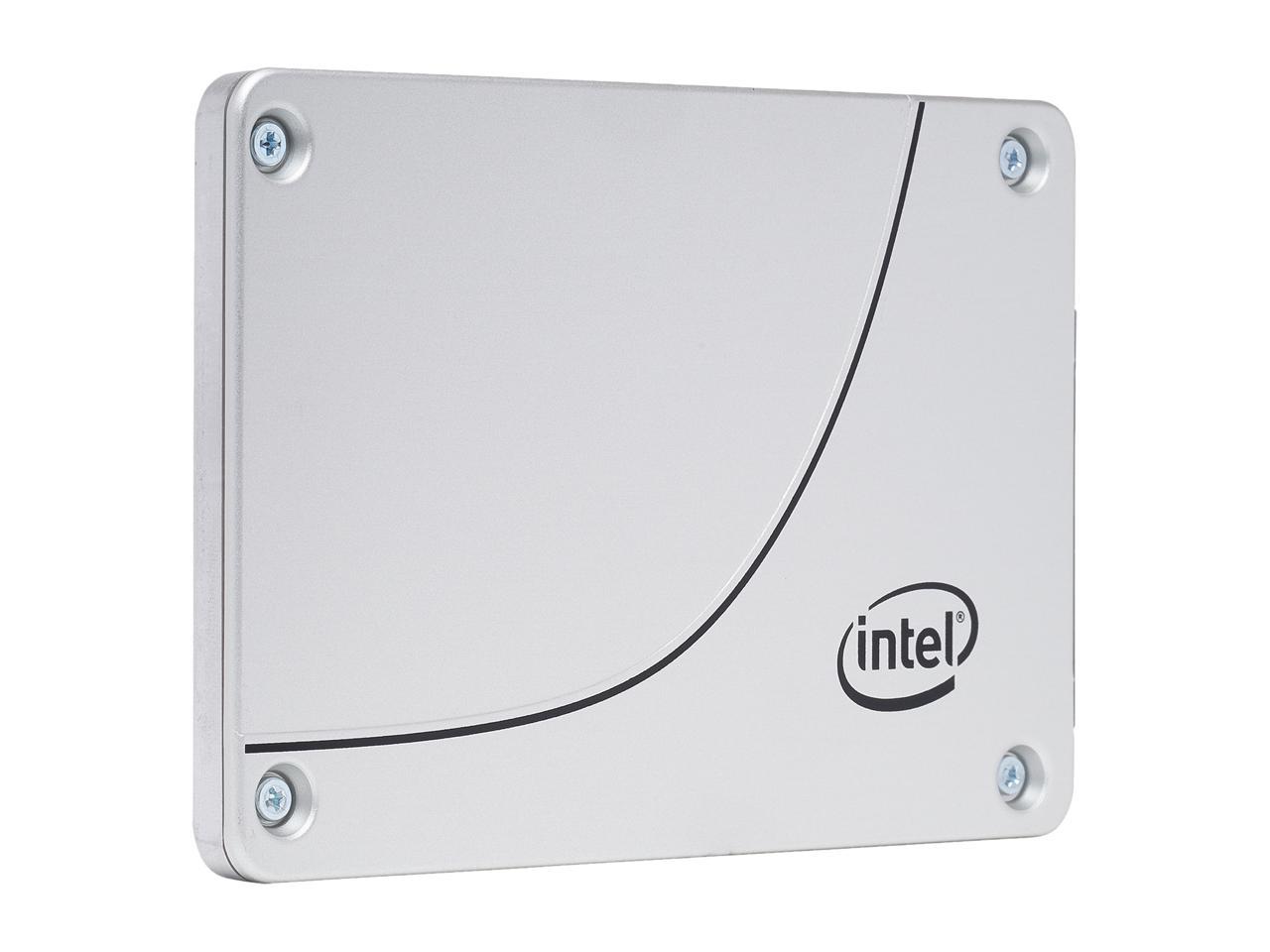

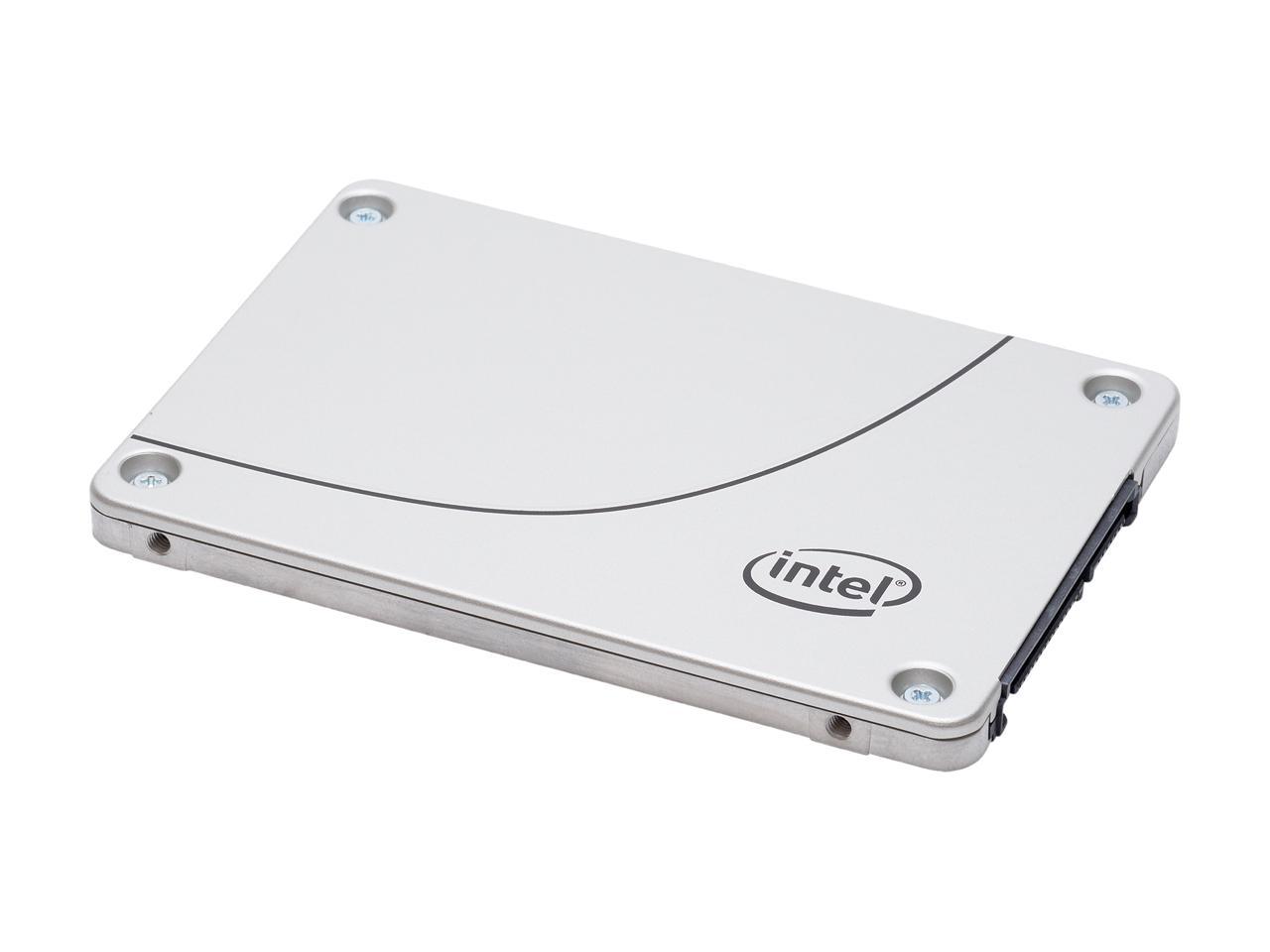

Intel - SSDSC2KB480G701 - Intel DC S4500 480 GB Solid State Drive - 2.5 Internal - SATA (SATA/600) - 500 MB/s Maximum

Brand

Intel

Products Status

New

Application

Server

Series

DC S4500

Model

SSDSC2KB480G701

General Information :

Manufacturer : INTEL Corporation
Manufacturer Part : SSDSC2KB480G701
Product Series : Dc S4500
Product Name : Dc S4500 Series Tlc Solid State Drive.

Technical Information :

Storage Capacity : 480 Gb
Interface Type : Sata-6gbps
Form Factor : 2.5 Inch 7mm
Lithography : 3d Nand Tlc
Shock : 1000 G/0.5 Msec
Mtbf : 2000000 Hours

Performance :

Sequential Read : 500 Mbps
Sequential Write : 330 Mbps
Random Read (100% Span) : 72000 Iops
Random Write (100% Span) : 20000 Iops

Advanced Technologies :

Enhanced Power Loss Data Protection : Yes
Hardware Encryption : 256 Aes
High Endurance Technology (het) : No
Temperature Monitoring And Logging : Yes
End-to-end Data Protection : Yes

Brand	Intel
Products Status	New
Application	Server
Series	DC S4500
Model	SSDSC2KB480G701
Device Type	Internal Solid State Drive (SSD)
Used For	Enterprise
Form Factor	2.5"
Capacity	480GB
Memory Components	3D NAND TLC
Interface	SATA III
Controller	Intel
Max Sequential Read	Up to 500 MBps
Max Sequential Write	Up to 330 MBps
4KB Random Read	Up to 72,000 IOPS
4KB Random Write	Up to 20,000 IOPS
Read Latency	36 s
Write Latency	36 s
MTBF	2,000,000 hours
Features	A new SATA-designed controller delivers the convergence of scalable capacity and manageability. Innovative firmware completes updates without server reset and reduces downtime., Built for compatibility in legacy infrastructures, this SATA SSD enables easy storage upgrades that minimize the costs associated with modernizing your data center., Do More Per Server, Improved Reliability, Infrastructure Compatibility, New SATA Controller
Power Consumption (Idle)	0.9W
Power Consumption (Active)	3.6W
Operating Temperature	0C ~ +70C
Max Shock Resistance	1000G / 0.5 msec
Max Vibration Resistance	Non-Operating: 3.13 GRMS, Operating: 2.17 GRMS
Height	7.00mm
