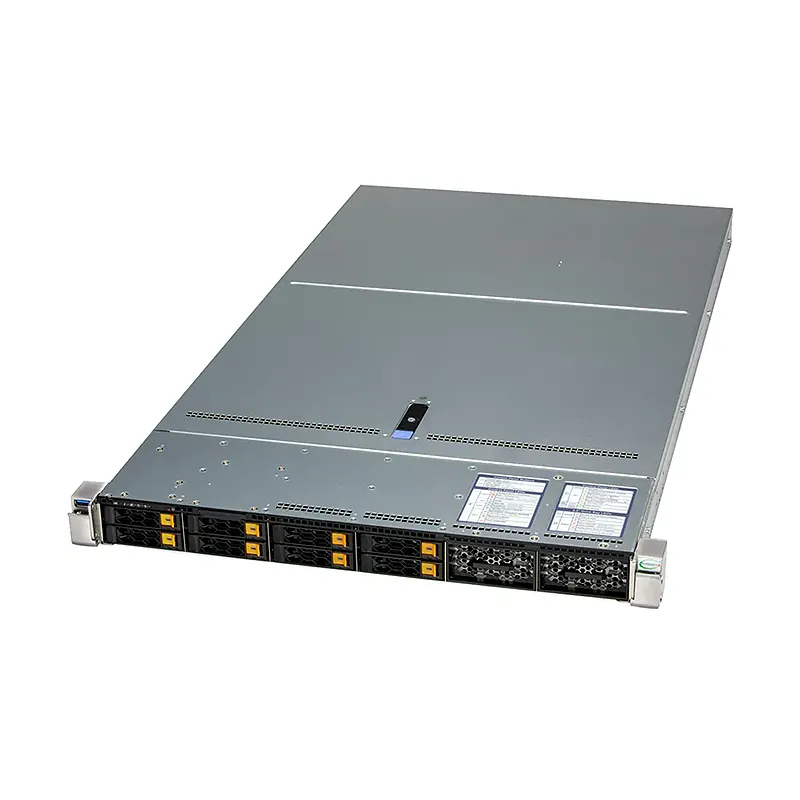

Hyper SuperServer SYS-112HA-TN (Complete System Only

Product SKUs

SuperServerSYS-112HA-TN

Motherboard

Super X14SBH-AP

Processor

CPU
Single Socket BR (LGA-7529)
Intel Xeon 6900 series processors with P-cores
Core Count
Up to 128C/256T; Up to 504MB Cache

GPU

Max GPU Count
Up to 1 double-width or 2 single-width GPUs
CPU-GPU Interconnect
PCIe 5.0 x16 CPU-to-GPU Interconnect

System Memory

Memory
Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 1.5TB 8800MT/s ECC DDR5 MRDIMM

On-Board Devices

NVMe
NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
Chipset
System on Chip
Network Connectivity
Via AIOM

Input / Output

LAN
1 RJ45 1 GbE Dedicated BMC LAN port
USB
2 USB 3.2 Gen1 ports(Rear)
1 USB 3.2 Gen1 port(Front)
Video
1 VGA port

System BIOS

BIOS Type
AMI 64MB SPI Flash

Management

Power configurations
Power-on mode for AC power recovery
ACPI Power Management

Chassis

Form Factor
1U Rackmount
Model
CSE-HS101-R000NFP

Dimensions and Weight

Height
1.7″ (43 mm)
Width
17.2″ (437 mm)
Depth
30.66″ (778.7 mm)
Package
8.82″ (H) x 26.46″ (W) x 43.31″ (D)
Weight
Gross Weight: 41.4 lbs (18.8 kg)
Net Weight: 19.2 lbs (8.7 kg)
Available Color
Silver

Front Panel

LED
HDD activity
LAN1 activity
Power status
System information
Buttons
Power On/Off
UID button

Expansion Slots

PCI-Express (PCIe) Configuration
Default 1 PCIe 5.0 x16 FHHL slot 1 PCIe 5.0 x16 FHFL slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x8 FHFL slot

Drive Bays / Storage

Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
Option A: Total 12 bays 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays 4 front hot-swap 2.5″ SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)

System Cooling

Fans
8 counter-rotating 40x40x56mm Fan(s)

Power Supply

2x 1200W
2x 1300W
2x 1600W
2x 2000W
2x 2000W
2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)
2x 1300W
2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
1300W: -44–65Vdc
+12V
Max: 108.3A / Min: 0A
12V SB
Max: 2.1A
Output Type
Backplanes (gold finger)
2x 1600W
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
Max: 3.5A / Min: 0A
Max: 3.5A
Output Type
Backplanes (gold finger)
2x 2000W
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
2700W: 200-240Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 225A / Min: 0A (200Vac-240Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
Max: 3.5A / Min: 0A
Output Type
Backplanes (gold finger)
2x 2000W
2x 2000W Redundant (1 + 1) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
2000W: 200-227Vac / 50-60Hz
+12V
Max: 166A / Min: 0A (200Vac-277Vac)
12V SB
Max: 3.5A / Min: 0A
Output Type
Backplanes (gold finger)
Certification
[
Test Report
]

Brand	Supermicro
Products Status	New
Applications	AI Inference, CDN/vCDN/Cloud CDN, Cloud Computing, Data Center Enterprise Applications, Financial, Scale Out All-Flash NVMe Storage, Virtualization
Max GPU	1
CPU Type	Intel Xeon 6900 series processors with P-cores
Total PCI-E Slots	3
Drives	8
Drive Form Factors	2.5"
Form Factor	1U
Generation	X14
Interface	NVMe (Native), SAS (Optional), SATA (Optional)
LED	HDD activityLAN1 activityPower statusSystem information
Max GPU Count	Up to 1 double-width or 2 single-width GPUs
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
Air Shroud	1 CPU Air Shroud
Network Connectivity	Via AIOMView AIOM OptionsView AOC Options
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type	AMI 64MB SPI Flash
Package	8.82" (H) x 26.46" (W) x 43.31" (D)
Depth	30.66" (778.7 mm)
Fans	8 counter-rotating 40x40x56mm Fan(s)
Height	1.7" (43 mm)
Buttons	Power On/OffUID button
M.2	2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
Memory	Slot Count: 12 DIMM slotsMax Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMMMax Memory (1DPC): Up to 1.5TB 8800MT/s ECC DDR5 MRDIMM
Width	17.2" (437 mm)
Video	1 VGA port
Core Count	Up to 128C/256T; Up to 504MB Cache
NVMe	NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
Note	Supports up to 500W TDP CPUs (Air Cooled)
Weight	Gross Weight: 41.4 lbs (18.8 kg)Net Weight: 19.2 lbs (8.7 kg)
Drive Bays Configuration	Default: Total 8 baysOption A: Total 12 bays(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
USB	2 USB 3.0 ports(rear)1 USB 3.0 port(front)
Available Color	Silver
PCI-Express (PCIe) Configuration	Default
CPU	Single Socket BR (LGA-7529)Intel Xeon 6900 series processors with P-cores
Chipset	System on Chip
