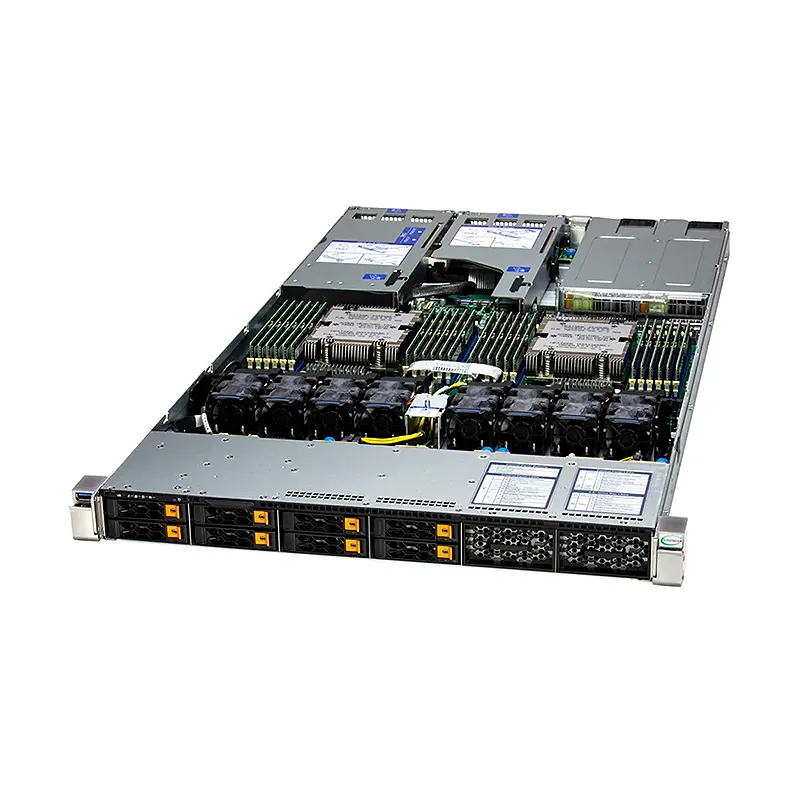

Hyper A+ Server AS -1126HS-TN (Complete System Only

Product SKUs

A+ ServerAS -1126HS-TN

Motherboard

Super H14DSH

Processor

CPU
Dual processor(s)
AMD EPYC 9005/9004 Series Processors
Core Count
Up to 384C/768T

System Memory

Memory
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)

On-Board Devices

Chipset
System on Chip
Network Connectivity
Via AIOM
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

LAN
1 RJ45 1 GbE Dedicated BMC LAN port
USB
2 USB 3.0 ports(rear)
1 USB 3.0 port(front)
Video
1 VGA port
TPM
1 TPM Onboard/port 80

System BIOS

BIOS Type
AMI 64MB SPI Flash EEPROM
BIOS Features
Plug and Play (PnP)
UEFI 2.8
USB Keyboard support
ACPI 6.5
SMBIOS 3.7 or later

Management

Power configurations
ACPI/APM Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,

Chassis

Form Factor
1U Rackmount
Model
CSE-HS101-R000NFP

Dimensions and Weight

Height
1.7″ (43 mm)
Width
17.2″ (437 mm)
Depth
30.66″ (778.7 mm)
Package
8.82″ (H) x 26.46″ (W) x 43.31″ (D)
Weight
Gross Weight: 41.4 lbs (18.8 kg)
Net Weight: 19.2 lbs (8.7 kg)
Available Color
Silver

Front Panel

LED
HDD activity
LAN1 activity
Power status
System information
Buttons
Power On/Off
UID button

Expansion Slots

PCI-Express (PCIe) Configuration
Default 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
CXL Support
Up to 4 CXL 2.0 x16 devices

Drive Bays / Storage

Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 2.5″ NVMe*/SATA* drive bays
Option A: Total 12 bays 12 front hot-swap 2.5″ NVMe*/SATA* drive bays
(*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)

System Cooling

Fans
8 counter-rotating 40x40x56mm Fan(s)

Power Supply

2x 1600W
2x 1300W
2x 2600W
2x 1200W
2x 2000W
2x 2000W
2x 1600W
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
Max: 3.5A / Min: 0A
Max: 3.5A
Output Type
Backplanes (gold finger)
2x 1300W
2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
1300W: -44–65Vdc
+12V
Max: 108.3A / Min: 0A
12V SB
Max: 2.1A
Output Type
Backplanes (gold finger)
2x 2600W
2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
2600W: 200-240Vac
2600W: 200-240Vdc (For CQC Only)
2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Max: 216A / Min: 0A (200Vac-240Vac)
12V SB
Max: 3.5A
Output Type
Backplanes (gold finger)
2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)
2x 2000W
2x 2000W Redundant (1 + 1) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
2000W: -48–60Vdc / 50-60Hz
+12V
Max: 166.6A / Min: 0A
12V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
2x 2000W
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
2700W: 200-240Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 225A / Min: 0A (200Vac-240Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
Max: 3.5A / Min: 0A
Output Type
Backplanes (gold finger)

Brand	Supermicro
Products Status	New
Applications	AI Inference and Machine Learning, Cloud Computing, Enterprise Server, High Performance Computing (HPC), Software-defined Storage, Virtualization
Max GPU	2
CPU Type	AMD EPYC 9005/9004 Series Processors
Total PCI-E Slots	3
Drives	8
Drive Form Factors	2.5"
Form Factor	1U
Generation	H14
Interface	NVMe (Optional), SATA (Optional)
LED	HDD activityLAN1 activityPower statusSystem information
CXL Support	Up to 4 CXL 2.0 x16 devices
Network Connectivity	Via AIOMView AIOM OptionsView AOC Options
BIOS Features	Plug and Play (PnP)UEFI 2.8USB Keyboard supportACPI 6.5SMBIOS 3.7 or later
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type	AMI 64MB SPI Flash EEPROM
Package	8.82" (H) x 26.46" (W) x 43.31" (D)
Depth	30.66" (778.7 mm)
Fans	8 counter-rotating 40x40x56mm Fan(s)
Height	1.7" (43 mm)
Buttons	Power On/OffUID button
M.2	2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
Width	17.2" (437 mm)
Video	1 VGA port
Core Count	Up to 384C/768T
Note	Supports up to 500W TDP CPUs **Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
Weight	Gross Weight: 41.4 lbs (18.8 kg)Net Weight: 19.2 lbs (8.7 kg)
Drive Bays Configuration	Default: Total 8 baysOption A: Total 12 bays(*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
USB	2 USB 3.0 ports(rear)1 USB 3.0 port(front)
Available Color	Silver
PCI-Express (PCIe) Configuration	Default
IPMI	Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
TPM	1 TPM Onboard/port 80
CPU	Dual processor(s)AMD EPYC 9005/9004 Series Processors
Chipset	System on Chip
