PN | 98011295 |
---|---|
Model | S5735-L8P4S-A1 |
Brand | Huawei |
Warranty | 1 Year |
Products Status | New |
Height [mm] | 43.6 mm |
Depth [mm] | 220.0mm |
Wide [mm] | 330.0mm |
Chassis height [U] | 1 |
Dimensions with packaging (H x W x D) [mm(in.)] | 110.0 mm x 435.0 mm x 360.0 mm (4.33 in. x 17.13 in. x 14.17 in.) |
Weight without packaging [kg(lb)] | 2.25 kg (4.96 lb) |
Weight with packaging [kg(lb)] | 3.17 kg (6.99 lb) |
Typical power consumption [W] | 28.4 W |
Typical heat dissipation [BTU/hour] | 96.9 BTU/hour |
Maximum power consumption [W] | Without PoE: 38.6 W, Full PoE load: 162.6 W (PoE: 124 W) |
Maximum heat dissipation [BTU/hour] | Without PoE: 131.71, Full PoE load: 554.81 |
Static power consumption [W] | 22.6 W |
MTBF [year] | 66.56 year |
MTTR [hour] | 2 hour |
Availability | >0.99999 |
Noise at normal temperature (acoustic power) [dB(A)] | 42.2 dB(A) |
Noise at normal temperature (acoustic pressure) [dB(A)] | 30.5 dB(A) |
Number of card slots | 0 |
Number of power slots | 0 |
Number of fans modules | 1 |
Redundant power supply | Not supported |
Long-term operating temperature [??C(??F)] | ?C5??C to +50??C (23??F to 122??F) at an altitude of 0?C1800 m (0?C5906 ft.), mapping non-industrial optical modules, ?C5??C to +55??C (23??F to 131??F) at an altitude of 0?C1800 m (0?C5906 ft.), mapping industrial optical modules with transmission distances less than or equal to 10 km |
Storage temperature [??C(??F)] | ?C40??C to +70??C (?C40??F to +158??F) |
Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
Power supply mode | AC built-in |
Rated input voltage [V] | 100 V AC to 240 V AC, 50/60 Hz |
Input voltage range [V] | 90 V AC to 290 V AC, 45 Hz to 65 Hz |
Maximum input current [A] | 3 A |
Memory | 512 MB |
Flash memory | 512 MB |
Console port | RJ45 |
Eth Management port | Not supported |
USB | Not supported |
RTC | Not supported |
RPS input | Not supported |
Service port surge protection [kV] | Common mode: ??7 kV |
Power supply surge protection [kV] | ??6 kV in differential mode; ??6 kV in common mode |
Types of fans | Built-in |
Heat dissipation mode | Air cooling heat dissipation and intelligent speed adjustment |
Airflow direction | Air intake from left and front, air exhaustion from right |
PoE | Supported |
Certification | EMC certification, Safety certification, Manufacturing certification |

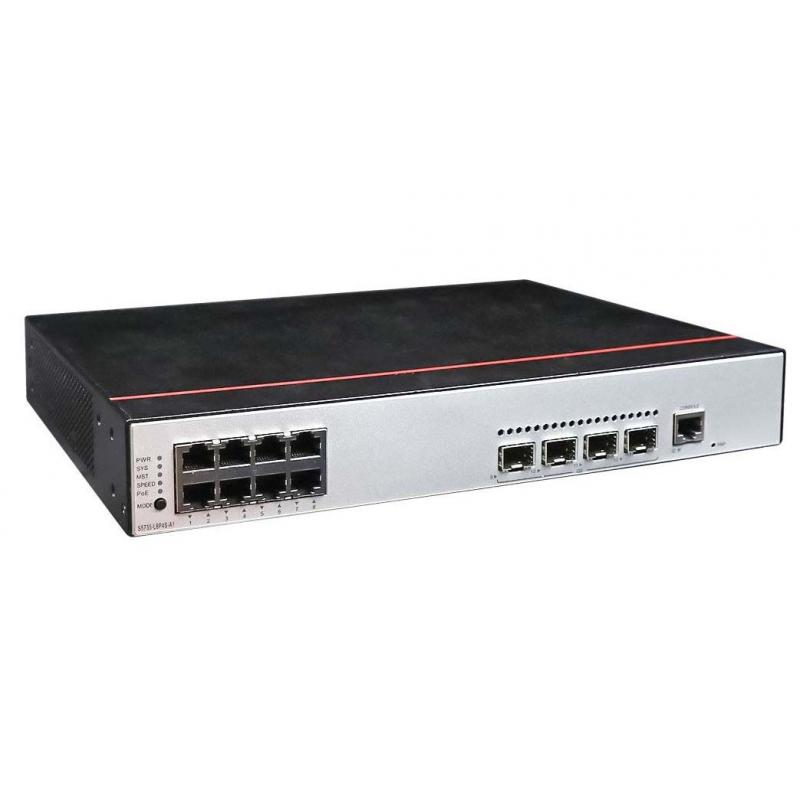

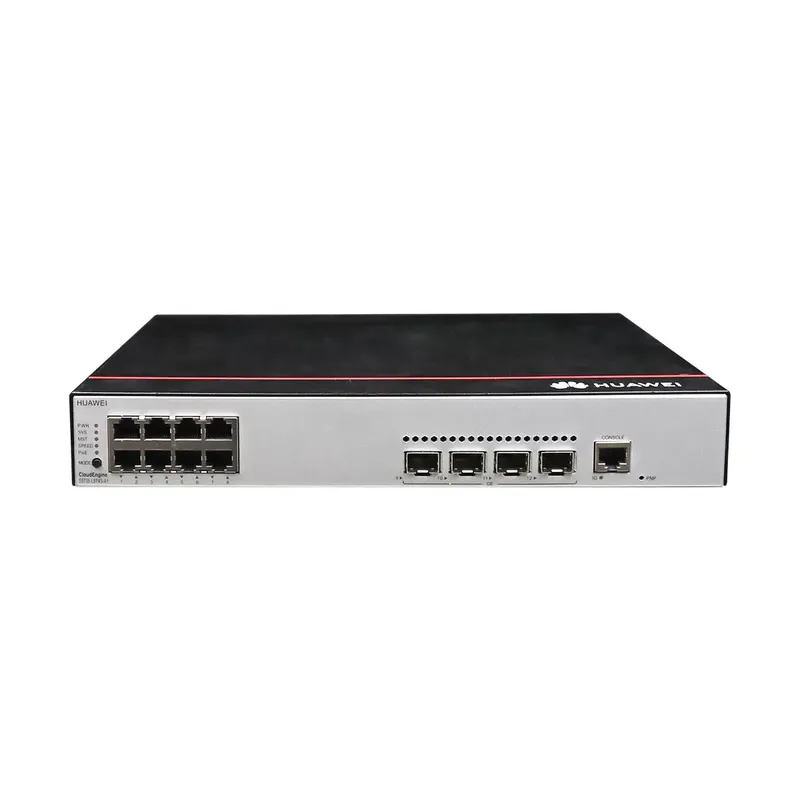

Huawei S5735-L8P4S-A1 (8*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, AC power)
Quote1 Pieces ( MOQ )
PN | 98011295 |
---|---|
Model | S5735-L8P4S-A1 |
Brand | Huawei |
Warranty | 1 Year |
Products Status | New |
