| PN | 02353VAD |
|---|---|
| Model | S5731-H48T4XC-B |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Memory (RAM) | 4 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the?display version command. |
| Mean time between failures (MTBF) | 55.31 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ??6 kV |
| Power supply surge protection | Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??2 kV in differential mode, ??4 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Weight (with packaging) | 8.55 kg (18.85 lb) |
| Stack ports | 10GE SFP+ ports on the front panel |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz, DC input: -48 V DC to -60 V DC |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, DC input: -38.4 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 130 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 82.89 W |
| Operating temperature | -5??C to +40??C (23??F to 104??F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0??C (32??F). |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 59.9 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

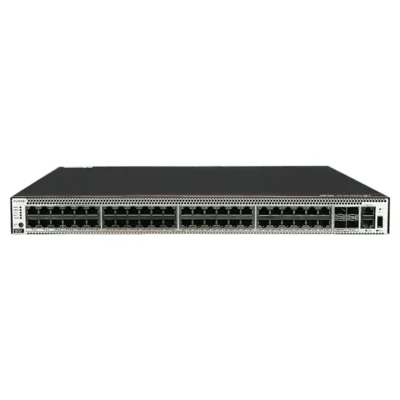

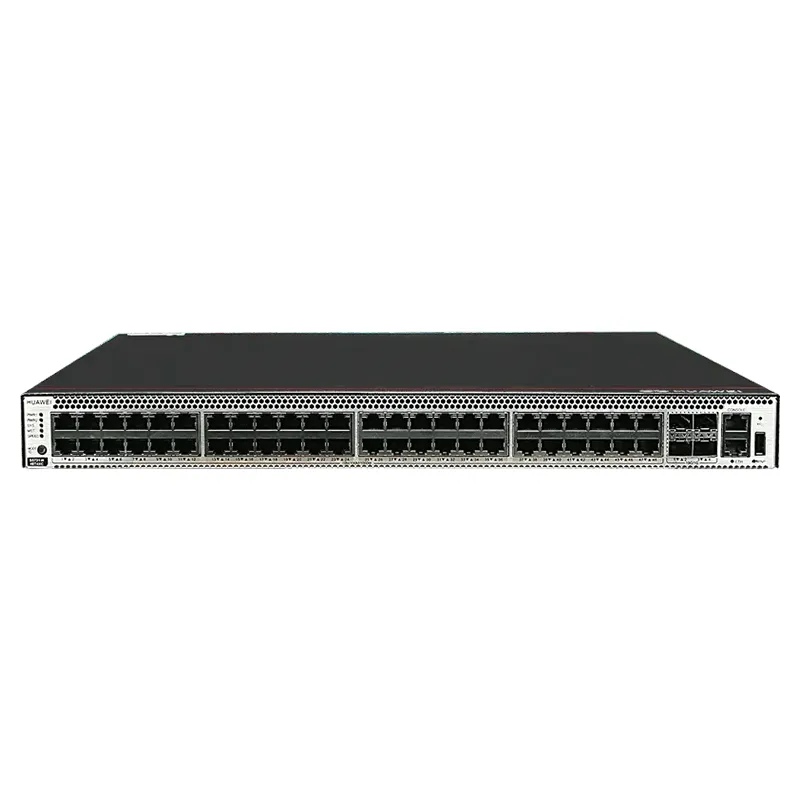

Huawei S5731-H48T4XC-B(48-ports 10/100/1000BASE-T, 4-ports 10GE SFP+, 2 power module slots, without power module equipped)
