* NOTE: Image may not exactly match the product

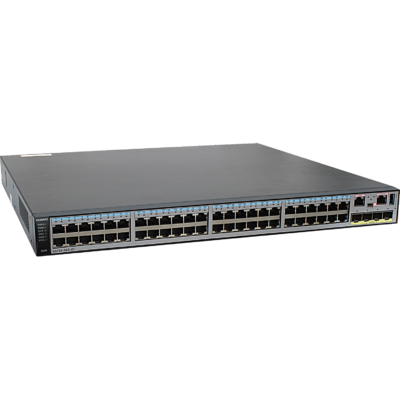

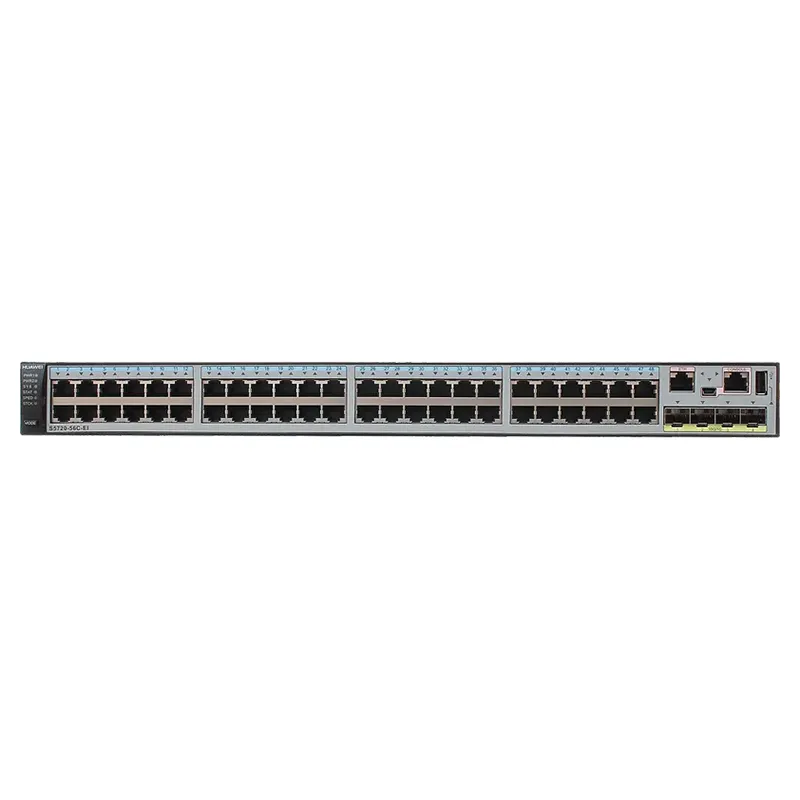

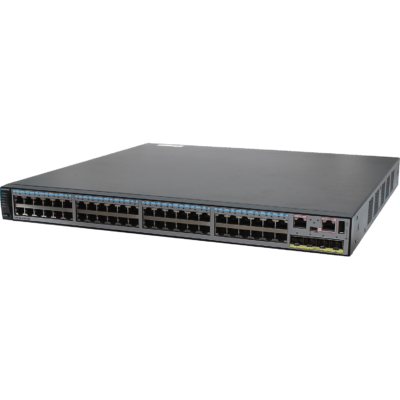

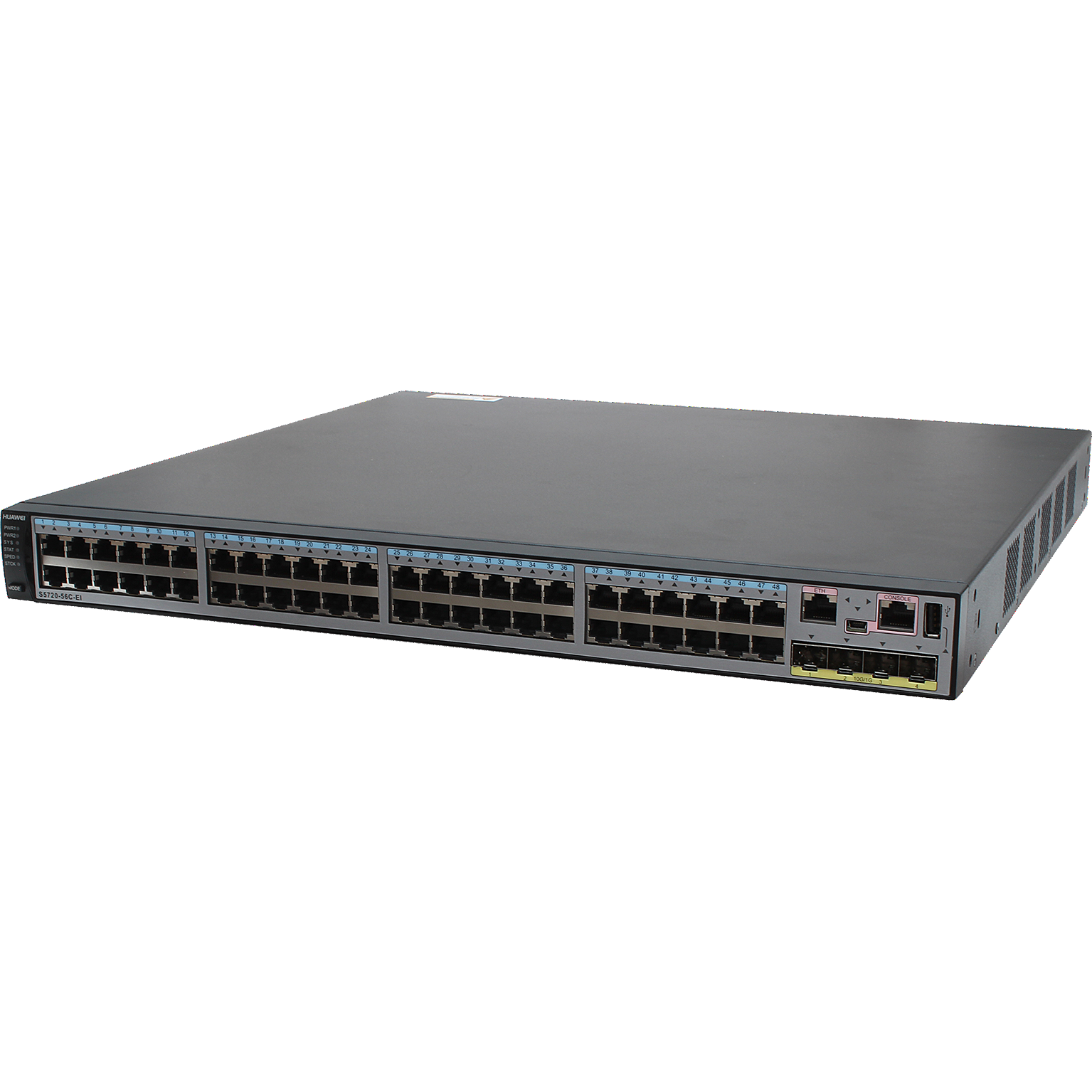

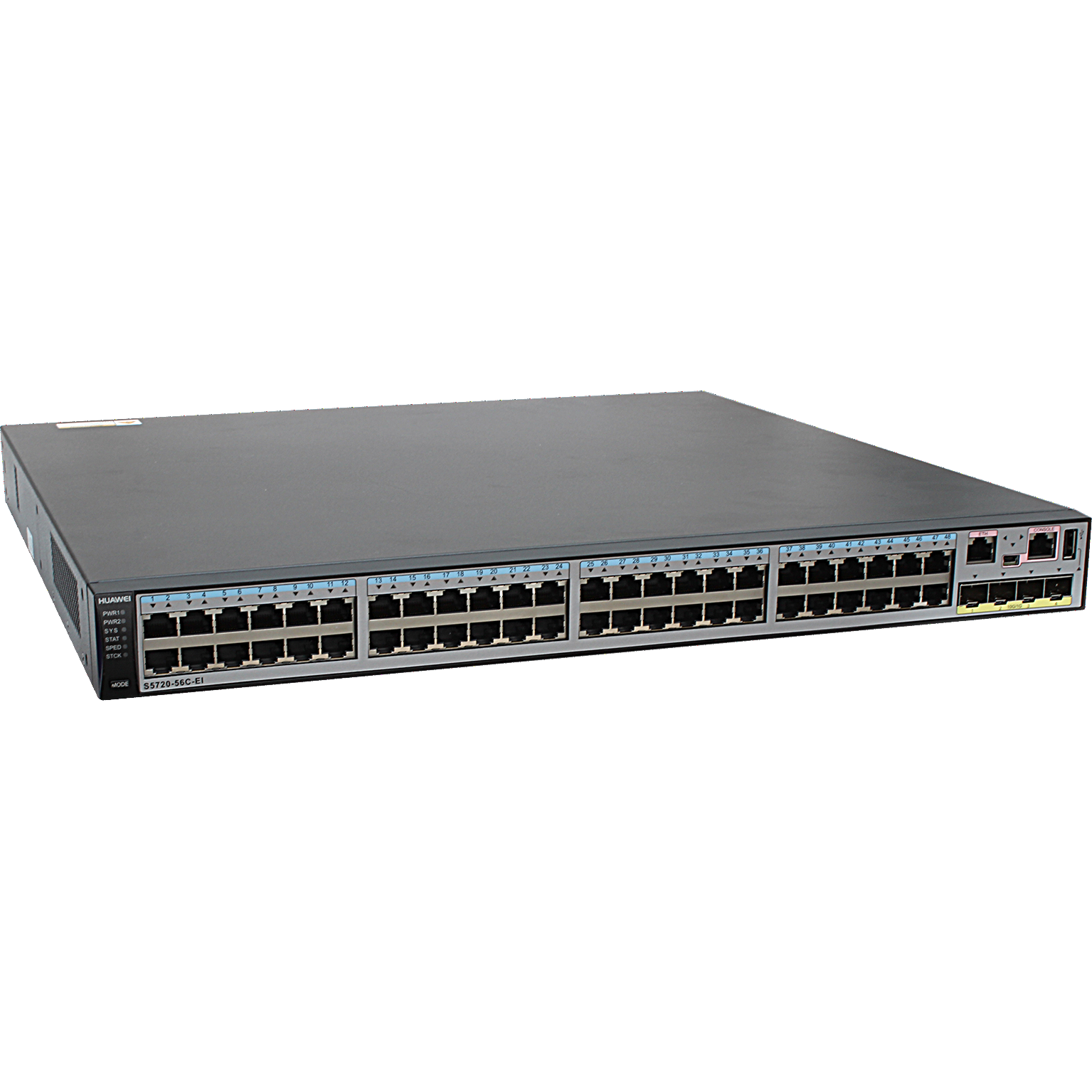

Huawei S5720-56C-EI-AC(48 Ethernet 10/100/1000 ports,4 10 Gig SFP+,with 1 interface slot,with 150W AC power supply)

Quote1 Piece(MOQ)

PN2359504
ModelS5720-56C-EI-AC
BrandHuawei
Warranty1 Year
Products StatusNew
PN

2359504

Model

S5720-56C-EI-AC

Brand

Huawei

Warranty

1 Year

Products Status

New

Height [mm]

44.4 mm

Depth [mm]

424.7mm

Wide [mm]

442.0mm

Memory (RAM)

2 GB

Flash

512 MB in total. To view the available flash memory size, run the?display version?command.

Mean time between failures (MTBF)

71.18 years when no card is configured; 66.07 years when a 2-port 10GE SFP+ interface card is configured; 66.40 years when a 2-port 10GE RJ45 interface card is configured; 64.53 years when a stack card is configured

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Service ports on front panel: ??6 kV in common mode, Ports on the 2-port 10GE RJ45 rear interface card: ??2 kV in common mode

Power supply surge protection

Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??1 kV in differential mode, ??2 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)

Weight (with packaging)

10 kg (22.05 lb)

Stack ports

Ports on the 2-port 10GE SFP+ rear interface card, Ports on the 2-port 10GE RJ45 rear interface card, Ports on the 2-port QSFP+ rear stack card

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz, -48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz, -36 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

86.9 W

Typical power consumption (30% of traffic load) ??Tested according to ATIS standard ??EEE enabled ??No PoE power consumption

40.45 W (without card), 47.78 W (with 2*10GE optical card), 52.87 W (with 2*QSFP+ stack card), 55.85 W (with 2*10GE electrical card)

Operating temperature

0??C to 45??C (32??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.).

Short-term operating temperature

-5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 45??C (113??F) consecutively for at most 96 hours in one year. The equipment operates at a temperature of over 45??C (113??F) for a total of no more than 360 hours in one year. The equipment operates at a temperature of over 45??C (113??F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0??C (32??F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.

Storage temperature

-40??C to +70??C (-40??F to +158??F)

Noise under normal temperature (27??C, sound power)

< 51.2 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

AC power modules configured: 0-5000 m (0-16404 ft.), DC power modules configured: 0-2000 m (0-6562 ft.)

Certification

EMC certification, Safety certification, Manufacturing certification
