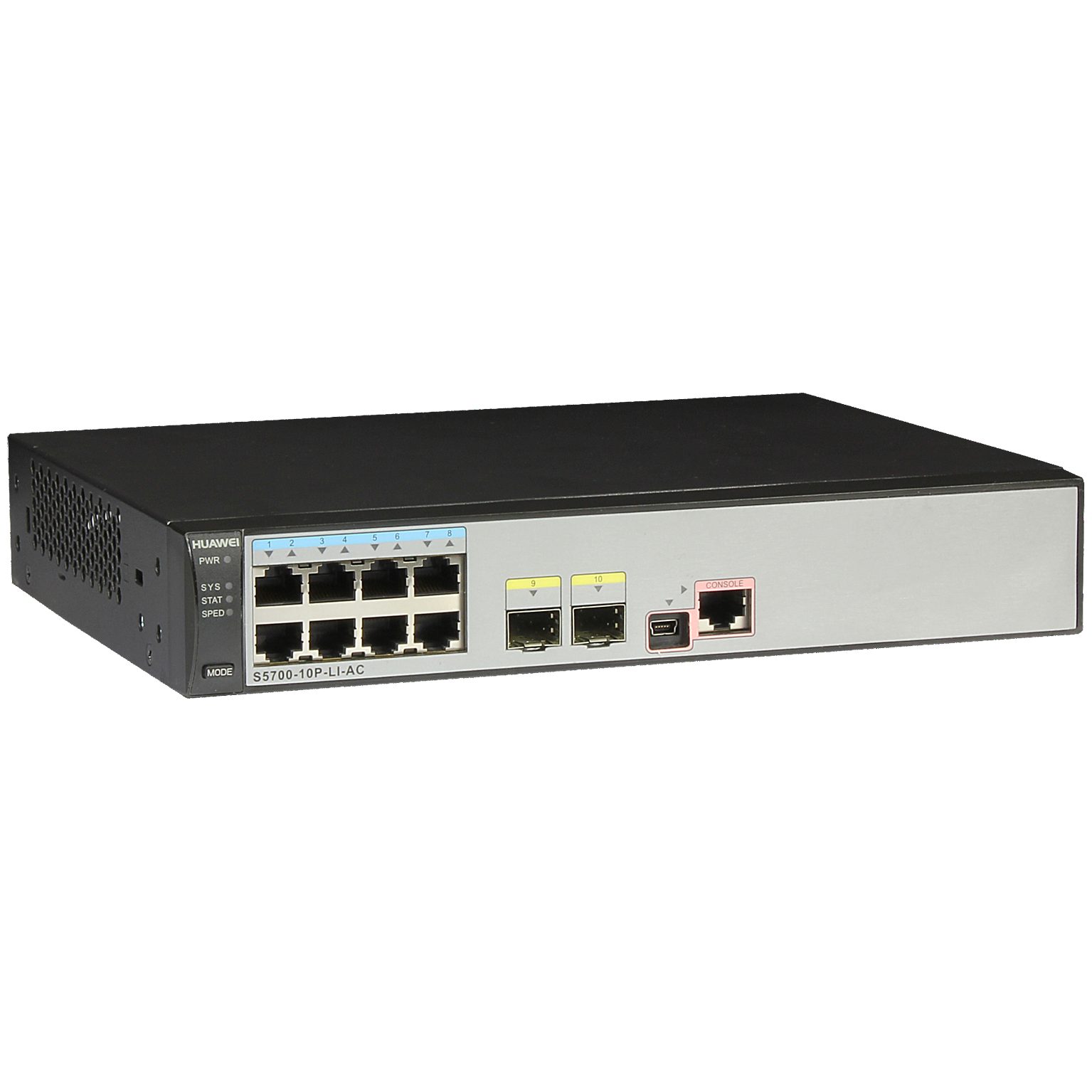

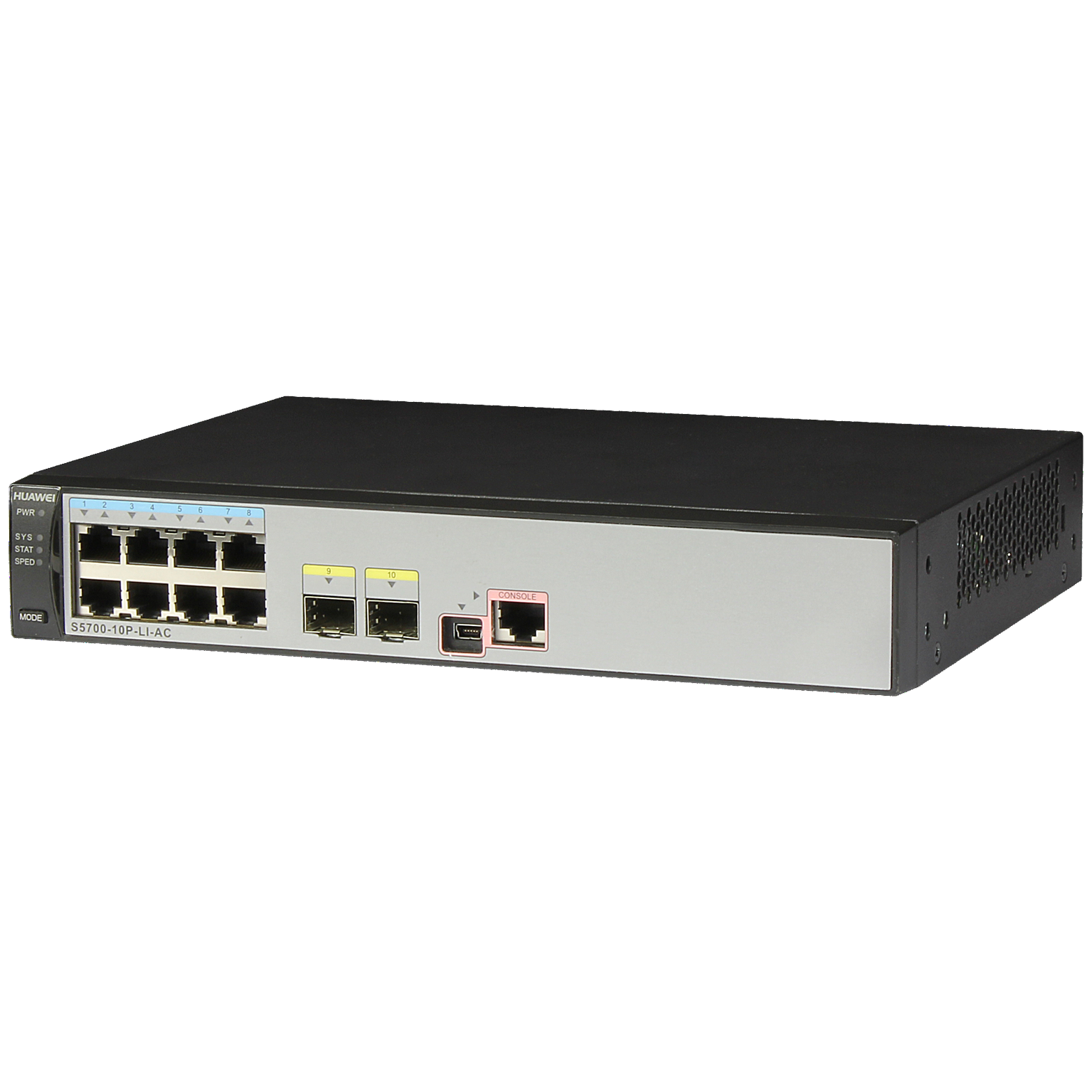

Huawei S5700-10P-LI-AC(supports 8 10/100/1000BASE-T ports, 2 GE SFP ports, fixed DC power)

2354036

Model

S5700-10P-LI-AC

Brand

Huawei

Warranty

1 Year

Products Status

New

PN	2354036
Model	S5700-10P-LI-AC
Brand	Huawei
Warranty	1 Year
Products Status	New
Height [mm]	43.6 mm
Depth [mm]	180.0mm
Wide [mm]	250.0mm
Memory (RAM)	256 MB
Flash	200 MB
Mean time between failures (MTBF)	44.41 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ??6 kV
Power supply surge protection	??6 kV in differential mode, ??6 kV in common mode
Dimensions (H x W x D)	43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.8 in. x 7.1 in.)
Weight (with packaging)	1.3 kg (2.87 lb)
Stack ports	Not supported
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput)	11.5 W
Typical power consumption (30% of traffic load) ??Tested according to ATIS standard ??EEE enabled ??No PoE power consumption	9.71 W
Operating temperature	0??C to 45??C (32??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	-40??C to +70??C (-40??F to +158??F)
Noise under normal temperature (27??C, sound power)	Noise-free (no fans)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification, Safety certification, Manufacturing certification
