Key Features :

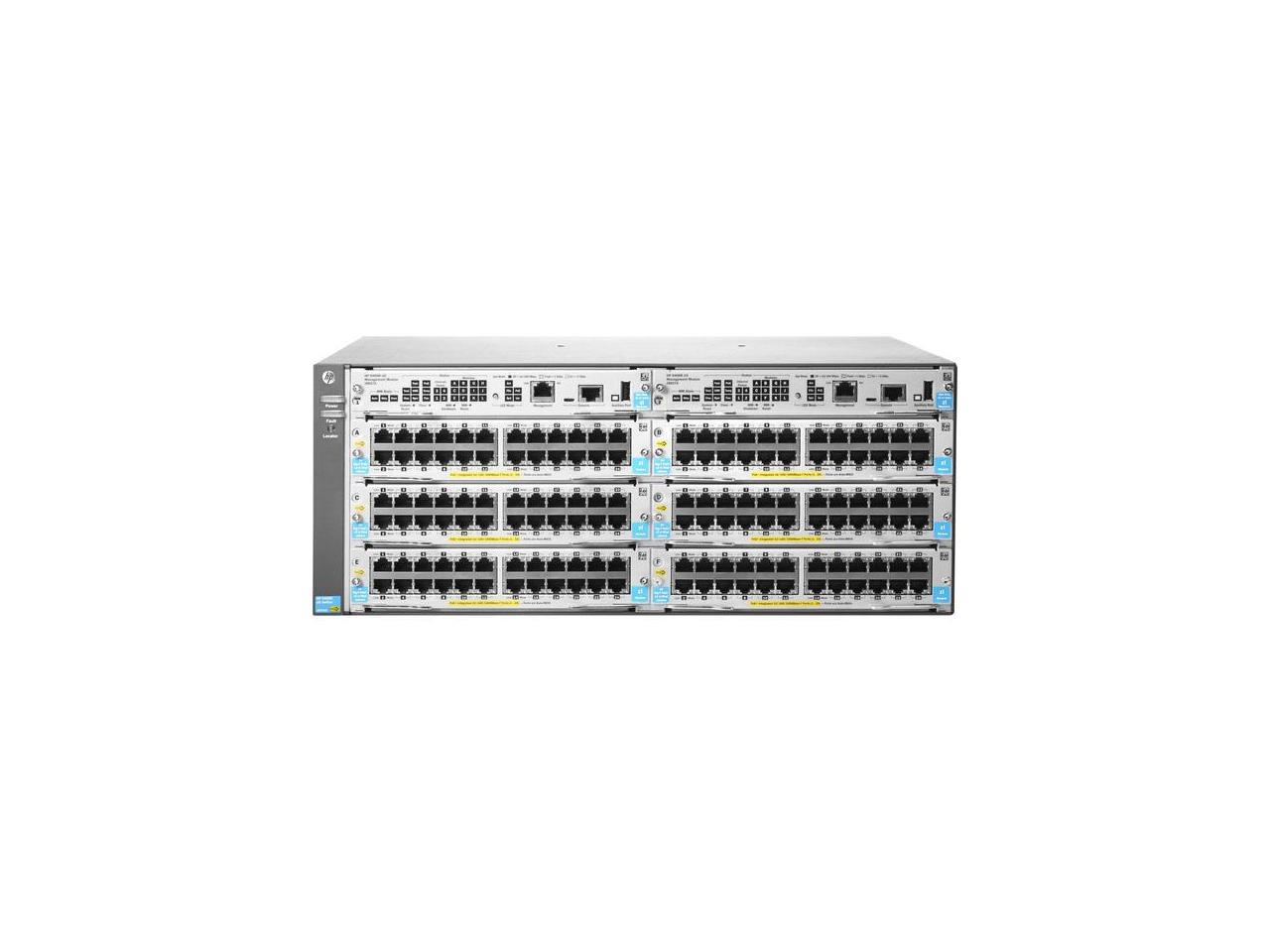

- Device Type : Switch – 44 Ports – Managed
- Enclosure Type : Rack-mountable 4u
- Subtype : Gigabit Ethernet
- Ports : 44 X 10/100/1000 + 2 X 10 Gigabit Sfp+
- Power Over Ethernet (poe) : Poe+
- Performance :
Throughput : 392.8 Mbps
Routing/switching Capacity : 528 Gbps
Switching Fabric Bandwidth : 1015 Gbps - Capacity :
Ipv4 Routing Table Entries : 10000
Ipv6 Routing Table Entries : 5000 - Mac Address Table Size : 64k Entries
- Routing Protocol : Ospf, Rip-1, Rip-2, Bgp, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3
- Remote Management Protocol : Snmp 1, Rmon 2, Rmon, Snmp 3, Snmp 2c, Http, Ssh-2, Cli, Xrmon
- Features : Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Half Duplex Mode, Full Duplex Mode, Sflow, Virtual Route Redundancy Protocol (vrrp) Support, Access Control List (acl) Support, Quality Of Service (qos), Mld Snooping, Stp Root Guard, Uni-directional Link Detection (udld), Rapid Per-vlan Spanning Tree Plus (pvrst+), Lldp Support, Port Security, Dhcp Protection, Class Of Service (cos), Sflow V5, Generic Attribute Registration Protocol (garp), Type Of Service (tos)
- Compliant Standards : Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az
