Together with static and rip routing, robust security and management, enterprise-class features, free lifetime Warranty, and free software updates, the 2920 switch Series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at the enterprise Edge, in remote branch offices, and in converged networks.
J9729A Overview
Aruba 2920 Switch Series provides security, scalability, and ease of use for enterprise edge, SMB and branch office networks. These energy efficient basic Layer 3 switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. The 2920 supports modular stacking (4 chassis), redundant power, 10GbE, RIP and Access OSPF routing, Tunneled node, PoE+, ACLs, sFlow, robust QoS and IPv6. It is optimized for Software-defined Networking (SDN) with OpenFlow support. This J9729A has 48 x 10/100/1000 ports including four that are combo dual purpose shared with SFP ports for fiber connectivity. The model supports PoE and PoE+ Power over Ethernet with a power budget of 370 Watts. Units also each have two available port module slots, a stacking module slot, and an available redundant power supply slot.
Quick Spec
Table 1 shows the quick spec.
| Product Code | J9729A |
| Type | Aruba 2920 48G POE+ Switch |
| Ports | ?? 44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only ?? 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) ?? 2 module slots ?? 1 stacking module slot ?? 1 dual-personality (RJ-45 or USB micro-B) ?? 1 USB 1.1 ?? 1 RJ-45 out-of-band management port |
| Throughput | 130.9 million pps |
| Switching capacity | 176 Gb/s |
| PoE power | 370 W |
| Dimensions | 4.39 x 44.25 x 33.6 cm (1.73 x 17.42 x 13.23 in) |
Product Details

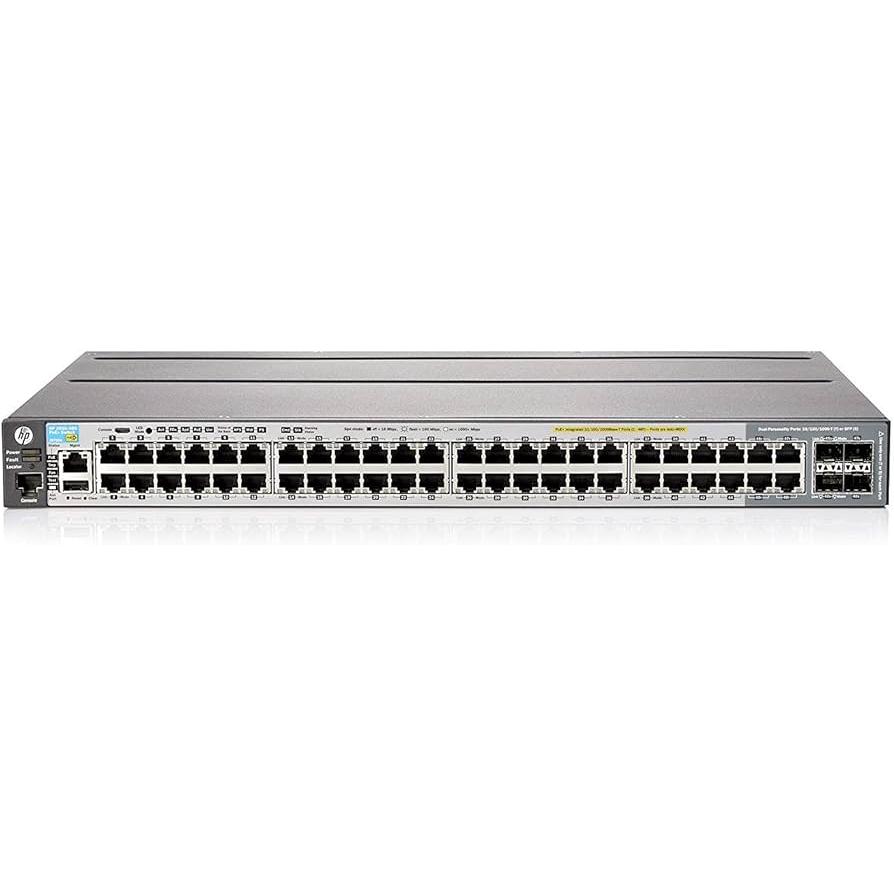

Figure 1 shows the front panel of HPE Aruba J9729A.
Note:
There are 44 RJ-45 autosensing 10/100/1000 PoE+ ports, 4 RJ-45 dual-personality 10/100/1000 PoE+ ports, 1 dual-personality (RJ-45 or USB micro-B), 1 USB 1.1 and 1 RJ-45 out-of-band management port.
Figure 2 shows the back panel of HPE Aruba J9729A.
Note:
| ?? | Grounding lug mounting hole |
| ?? | 10G Expansion Module slots |
| ?? | Stacking Module slot |
| ?? | XPS Connector |
| ?? | Power Supply and AC power connector |
Compare to Similar Items
Table 2 shows the comparison.
| Product Code | J9726A | J9727A | J9728A | J9729A | J9836A |
| Type | Aruba 2920 24G Switch | Aruba 2920 24G POE+ Switch | Aruba 2920 48G Switch | Aruba 2920 48G POE+ Switch | Aruba 2920-48G-POE+ 740W Switch |
| Ports | ?? 20 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only ?? 4 RJ-45 dual-personality 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) ?? 2 module slots ?? 1 stacking module slot ?? 1 dual-personality (RJ-45 or USB micro-B) ?? 1 USB 1.1 ?? 1 RJ-45 out-of-band management port | ??? 20 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only ?? 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) ?? 2 module slots ?? 1 stacking module slot ?? 1 dual-personality (RJ-45 or USB micro-B) ?? 1 USB 1.1 ?? 1 RJ-45 out-of-band management port | ??? 44 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only ?? 4 RJ-45 dual-personality 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) ?? 2 module slots ?? 1 stacking module slot ?? 1 dual-personality (RJ-45 or USB micro-B) ?? 1 USB 1.1 ?? 1 RJ-45 out-of-band management port | ??? 44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only ?? 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) ?? 2 module slots ?? 1 stacking module slot ?? 1 dual-personality (RJ-45 or USB micro-B) ?? 1 USB 1.1 ?? 1 RJ-45 out-of-band management port | ??? 44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+);Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only ?? 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) ?? 2 module slots ?? 1 stacking module slot ?? 1 dual-personality (RJ-45 or USB micro-B) ?? 1 USB 1.1 ?? 1 RJ-45 out-of-band management port |
| Throughput | 95.2 million pps | 95.2 million pps | 130.9 million pps | 130.9 million pps | 130.9 million pps |
| Switching capacity | 28 Gb/s | 128 Gb/s | 176 Gb/s | 176 Gb/s | 176 Gb/s |
| PoE Available Power | – | 370 W | – | 370 W | 740 W |
