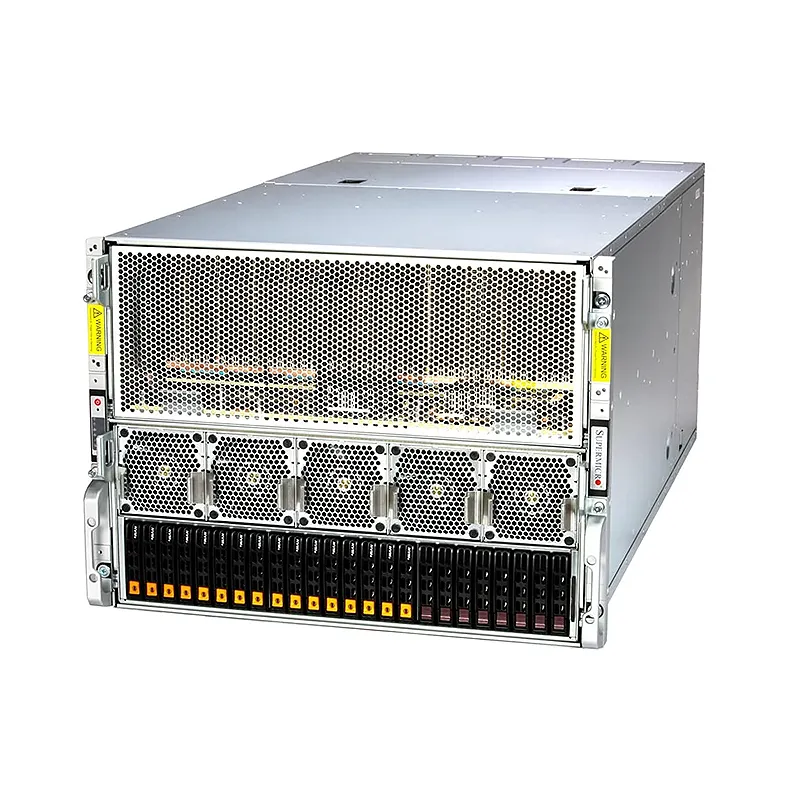

GPU SuperServer SYS-821GE-TNMR2 - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Products Status

New

Product Group

8U/10U Universal GPU Systems

Generation

X13

Application

AI/Deep Learning Training, Business Intelligence & Analytics, Climate and Weather Modeling, Conversational AI, Drug Discovery, Finance & Economics, Healthcare, High Performance Computing, Industrial Automation, Retail

Product SKUs

SuperServerSYS-821GE-TNMR2

Motherboard

Super X13DEG-MA

Processor

CPU
Dual Socket E (LGA-4677)
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Core Count
Up to 64C/128T; Up to 320MB Cache per CPU

GPU

Max GPU Count
Up to 8 onboard GPUs
Supported GPU
AMD: Instinct MI300X Accelerators
CPU-GPU Interconnect
PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
AMD Infinity Fabric Link

System Memory

Memory
Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM

On-Board Devices

Chipset
System on Chip
Network Connectivity
2 SFP28 25GbE with Broadcom BCM57414 (optional)
2 RJ45 10GbE with Intel X710-AT2 (optional)

Input / Output

USB
1 USB 3.0 Type-A port(Rear)
Video
1 VGA port

System BIOS

BIOS Type
AMI 32MB SPI Flash EEPROM

Management

Power configurations
Power-on mode for AC power recovery
ACPI Power Management

Chassis

Form Factor
8U Rackmount
Model
CSE-GP801TS-R000NPF-D2

Dimensions and Weight

Height
13.8″ (356 mm)
Width
17.7″ (447 mm)
Depth
33.2″ (843 mm)
Package
27.6″ (H) x 51″ (W) x 29.5″ (D)
Weight
Gross Weight: 178.6 lbs (81 kg)
Net Weight: 116.22 lbs (53 kg)
Available Color
Silver

Front Panel

Buttons
UID button

Expansion Slots

PCI-Express (PCIe) Configuration
Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots

Drive Bays / Storage

Drive Bays Configuration
Default: Total 20 bays 12 front hot-swap 2.5″ NVMe drive bays 8 front hot-swap 2.5″ SATA drive bays
Option A: Total 4 bays 4 front hot-swap 2.5″ NVMe drive bays
M.2
2 M.2 PCIe 3.0 x2 NVMe slots (M-key)

System Cooling

Fans
10 heavy duty fans with optimal fan speed control

Power Supply

6x 3000W
6x 3000W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
106.5 x 82.1 x 245.5 mm
Input
3000W: 0240Vdc / 50-60Hz (for CQC only)
2880W: 200-207Vac / 50-60Hz
3000W: 207-240Vac / 50-60Hz
3000W:
DC Input
+12V
Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB
Max: 3A / Min: 0A
Output Type
Backplanes (gold finger)

Brand	Supermicro
Products Status	New
Application	AI/Deep Learning Training, Business Intelligence & Analytics, Climate and Weather Modeling, Conversational AI, Drug Discovery, Finance & Economics, Healthcare, High Performance Computing, Industrial Automation, Retail
Supported GPUs	AMD: Instinct MI300X Accelerators
Total PCI-E Slots	12
Network Connectivity	2 SFP28 25GbE with Broadcom BCM57414 (optional)2 RJ45 10GbE with Intel X710-AT2 (optional)View AOC Options
USB	1 USB 3.0 Type-A port(Rear)
Chipset	System on Chip
Depth	33.2" (843 mm)
Drive Bays Configuration	Default: Total 20 baysOption A: Total 4 bays
Fans	10 heavy duty fans with optimal fan speed control
CPU	Dual Socket E (LGA-4677)5th Gen Intel Xeon
Buttons	UID button
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
Memory	Slot Count: 32 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMMMax Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMMView Memory Options
Available Color	Silver
Height	13.8" (356 mm)
Width	17.7" (447 mm)
PCI-Express (PCIe) Configuration	Default
M.2	2 M.2 PCIe 3.0 x2 NVMe slots (M-key)
GPU-GPU Interconnect	AMD Infinity Fabric Link
Max GPU Count	Up to 8 onboard GPUs
BIOS Type	AMI 32MB SPI Flash EEPROM
Video	1 VGA port
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Package	27.6" (H) x 51" (W) x 29.5" (D)
Note	Supports up to 350W TDP CPUs (Air Cooled)
Weight	Gross Weight: 178.6 lbs (81 kg)Net Weight: 116.22 lbs (53 kg)
