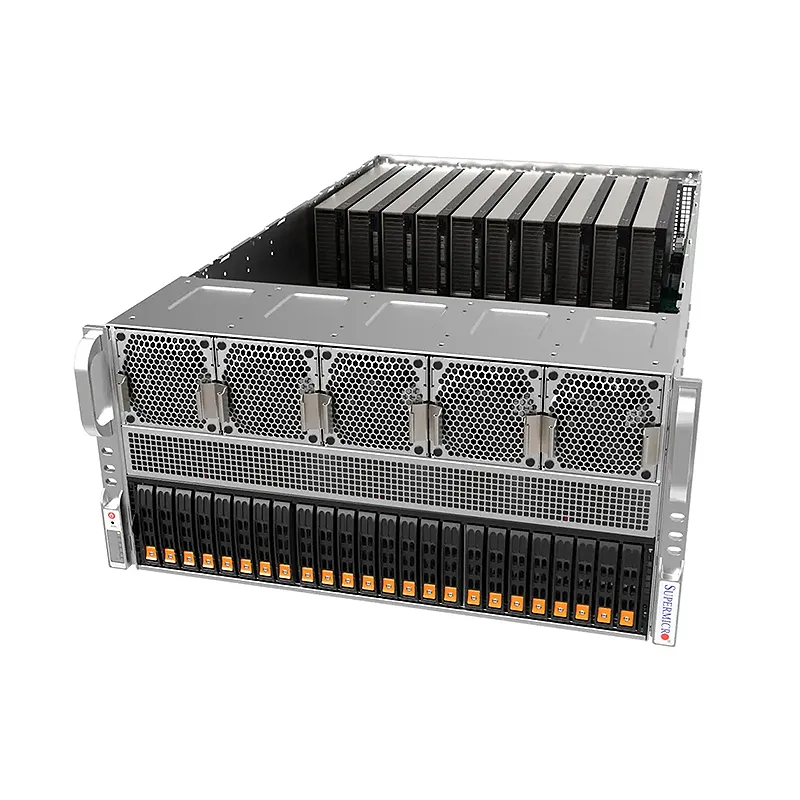

GPU SuperServer SYS-522GA-NRT - HYPERTEK SYSTEMS B.V

Product SKUs

SuperServerSYS-522GA-NRT

Motherboard

Super X14DBG-AP

Processor

CPU
Dual Socket BR (LGA-7529)
Intel Xeon 6900 series processors with P-cores
Core Count
Up to 128C/256T; Up to 504MB Cache per CPU

GPU

Max GPU Count
Up to 10 double-width or 10 single-width GPUs
Supported GPU
NVIDIA PCIe: H100 NVL, L40S, L4
CPU-GPU Interconnect
PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect
NVIDIA NVLink Bridge (optional)

System Memory

Memory
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM

On-Board Devices

Chipset
System on Chip
Network Connectivity
2 RJ45 10GbE with Intel X710-AT2

Input / Output

LAN
2 RJ45 10 GbE LAN ports (Intel I350)
USB
2 USB 3.0 Type-A ports(Rear)
Video
1 VGA port

System BIOS

BIOS Type
AMI 32MB SPI Flash EEPROM

Management

Power configurations
Power-on mode for AC power recovery
ACPI Power Management

Chassis

Form Factor
5U Rackmount
Model
CSE-528G2TS-R5K40P

Dimensions and Weight

Height
8.75″ (222.5 mm)
Width
17.2″ (437 mm)
Depth
29″ (737 mm)
Package
17.32″ (H) x 28.34″ (W) x 42.51″ (D)
Weight
Gross Weight: 100 lbs (45.3 kg)
Net Weight: 65.5 lbs (29.7 kg)
Available Color
Black Front & Silver Body

Front Panel

LED
Hard drive activity LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED
Buttons
Power On/Off button
System Reset button

Expansion Slots

PCI-Express (PCIe) Configuration
Default 13 PCIe 5.0 x16 FHFL slots

Drive Bays / Storage

Drive Bays Configuration
Default: Total 24 bays 24 front hot-swap 2.5″ PCIe 5.0 NVMe drive bays
M.2
2 M.2 NVMe slots (M-key)

System Cooling

Fans
10 heavy duty fans with optimal fan speed control
Air Shroud
1 Air Shroud
Liquid Cooling
Direct to Chip (D2C) Cold Plate (optional)

Power Supply

6x 2700W
6x 2700W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 203 mm
Input
2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V
Max: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB
Max: 3.5A / Min: 0A
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)

Brand	Supermicro
Products Status	New
Application	3D Rendering, AI/Deep Learning Training, Animation and Modeling, Cloud Gaming, Design & Visualization, Diagnostic Imaging, High Performance Computing, Media/Video Streaming, VDI
Supported GPUs	NVIDIA PCIe: H100 NVL, L40S, L4
Total PCI-E Slots	13
Network Connectivity	2 RJ45 10GbE with Intel X710-AT2View AIOM OptionsView AOC Options
USB	2 USB 3.0 Type-A ports(Rear)
Chipset	System on Chip
Depth	29" (737 mm)
Drive Bays Configuration	Default: Total 24 bays
Fans	10 heavy duty fans with optimal fan speed control
CPU	Dual Socket BR (LGA-7529)Intel Xeon 6900 series processors with P-cores
LED	Hard drive activity LEDNetwork activity LEDsPower status LEDSystem Overheat & Power Fail LED
Buttons	Power On/Off buttonSystem Reset button
LAN	2 RJ45 10 GbE LAN ports (Intel I350)
CPU-GPU Interconnect	PCIe 5.0 x16 Switch Dual-Root
Memory	Slot Count: 24 DIMM slotsMax Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMMMax Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMMView Memory Options
Available Color	Black front & silver body
Height	8.75" (222.5 mm)
Width	17.2" (437 mm)
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)
PCI-Express (PCIe) Configuration	Default
Air Shroud	1 Air Shroud
M.2	2 M.2 NVMe slots (M-key)
GPU-GPU Interconnect	NVIDIA NVLink Bridge (optional)
Max GPU Count	Up to 10 double-width or 10 single-width GPUs
BIOS Type	AMI 32MB SPI Flash EEPROM
Video	1 VGA port
Core Count	Up to 128C/256T; Up to 504MB Cache per CPU
Package	17.32" (H) x 28.34" (W) x 42.51" (D)
Note	Supports up to 500W TDP CPUs (Air Cooled)Supports up to 500W TDP CPUs (Liquid Cooled)
Weight	Gross Weight: 100 lbs (45.3 kg)Net Weight: 65.5 lbs (29.7 kg)
