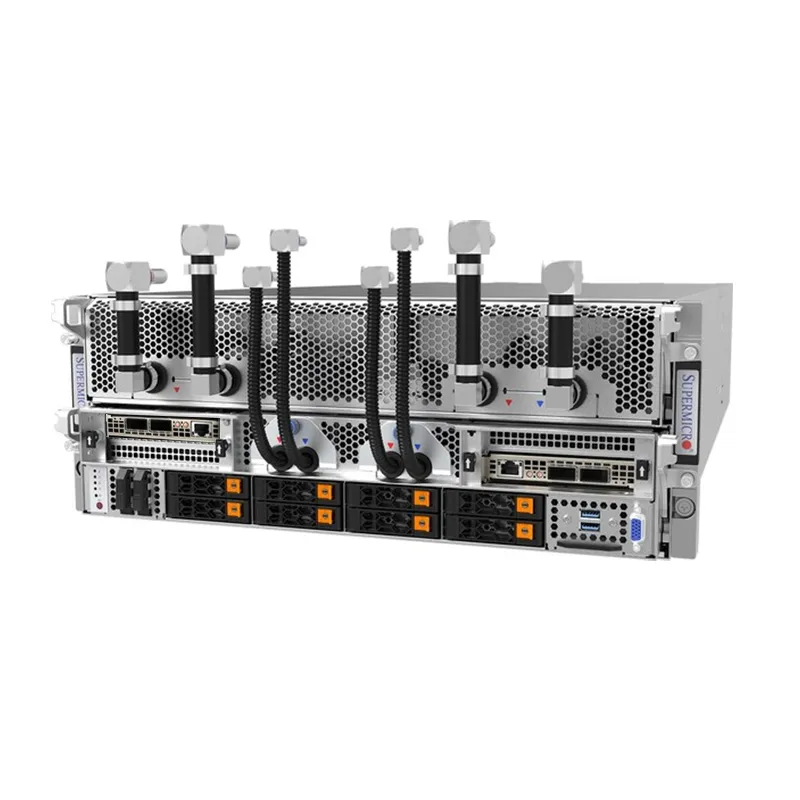

GPU SuperServer SYS-422GA-NBRT-LCC - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Products Status

New

Product Group

Liquid-Cooled Universal GPU Systems

Generation

X14

Application

AI/Deep Learning Training, Business Intelligence & Analytics, Climate and Weather Modeling, Conversational AI, Drug Discovery, Finance & Economics, Healthcare, High Performance Computing, Industrial Automation, Retail

Product SKUs

SuperServerSYS-422GA-NBRT-LCC

Motherboard

Super X14DBG-DAP

Processor

CPU
Dual Socket BR (LGA-7529)
Intel Xeon 6900 series processors with P-cores
Core Count
Up to 128C/256T; Up to 504MB Cache per CPU

GPU

Max GPU Count
Up to 8 onboard GPUs
Supported GPU
NVIDIA SXM: HGX B200 8-GPU (180GB)
CPU-GPU Interconnect
PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
NVIDIA NVLink with NVSwitch

System Memory

Memory
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM

On-Board Devices

Chipset
System on Chip
Network Connectivity
2 RJ45 10GbE with Intel X710-AT2

Input / Output

Video
1 VGA port

System BIOS

BIOS Type
AMI 32MB SPI Flash EEPROM

Management

Power configurations
Power-on mode for AC power recovery
ACPI Power Management

Chassis

Form Factor
4U Rackmount
Model
CSE-GP403TS-R000NP

Dimensions and Weight

Height
6.85″ (174 mm)
Width
17.6″ (449 mm)
Depth
35.25″ (895.35 mm)
Package
13″ (H) x 48″ (W) x 26.4″ (D)
Weight
Gross Weight: 136.9 lbs (62.1 kg)
Net Weight: 108.2 lbs (49.1 kg)
Available Color
Silver

Front Panel

Buttons
Power On/Off
UID/ Reset button
LED
System information (overheat/UID)
UID

Expansion Slots

PCI-Express (PCIe) Configuration
Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots
Option A 8 PCIe 4.0 x16 LP slots 4 PCIe 5.0 x16 FHHL slots

Drive Bays / Storage

Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 2.5″ NVMe drive bays
M.2
2 M.2 NVMe slots (M-key)

System Cooling

Fans
4 Fan 8cm Fan(s)
Liquid Cooling
Direct to Chip (D2C) Cold Plate (optional)

Power Supply

4x 6600W
4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL)
106.5 x 82.1 x 245.3 mm
Input
5900W: 200-207.9Vac / 50-60Hz
6000W: 208-219.9Vac / 50-60Hz
6300W: 220-229.9Vac / 50-60Hz
6500W: 230-238.9Vac / 50-60Hz
6600W: 239-240Vac / 50-60Hz
+12V
Max: 130A / Min: 0A (200Vac-207.9Vac)
Max: 130A / Min: 0A (208Vac-219.9Vac)
Max: 130A / Min: 0A (220Vac-229.9Vac)
Max: 130A / Min: 0A (230Vac-238.9Vac)
Max: 130A / Min: 0A (239Vac-240Vac)
12V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
Certification
Titanium Level
[
Test Report
]

Brand	Supermicro
Products Status	New
Application	AI/Deep Learning Training, Business Intelligence & Analytics, Climate and Weather Modeling, Conversational AI, Drug Discovery, Finance & Economics, Healthcare, High Performance Computing, Industrial Automation, Retail
Supported GPUs	NVIDIA SXM: HGX B200 8-GPU (180GB)
Total PCI-E Slots	12
Network Connectivity	2 RJ45 10GbE with Intel X710-AT2View AOC Options
Chipset	System on Chip
Depth	34.62" (879.4 mm)
Drive Bays Configuration	Default: Total 8 bays
Fans	4 Fan 8cm Fan(s)
CPU	Dual Socket BR (LGA-7529)Intel Xeon 6900 series processors with P-cores
LED	HDD activitySystem information (overheat/UID)UID
Buttons	Power On/OffUID/ Reset button
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
Memory	Slot Count: 24 DIMM slotsMax Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMMMax Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMMView Memory Options
Available Color	Silver
Height	13.8" (174 mm)
Width	17.7" (449 mm)
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)
PCI-Express (PCIe) Configuration	DefaultOption A
M.2	2 M.2 NVMe slots (M-key)
GPU-GPU Interconnect	NVIDIA NVLink with NVSwitch
Max GPU Count	Up to 8 onboard GPUs
BIOS Type	AMI 32MB SPI Flash EEPROM
Video	1 VGA port
Core Count	Up to 128C/256T; Up to 504MB Cache per CPU
Package	13" (H) x 48" (W) x 26.4" (D)
Note	Supports up to 500W TDP CPUs (Liquid Cooled)
