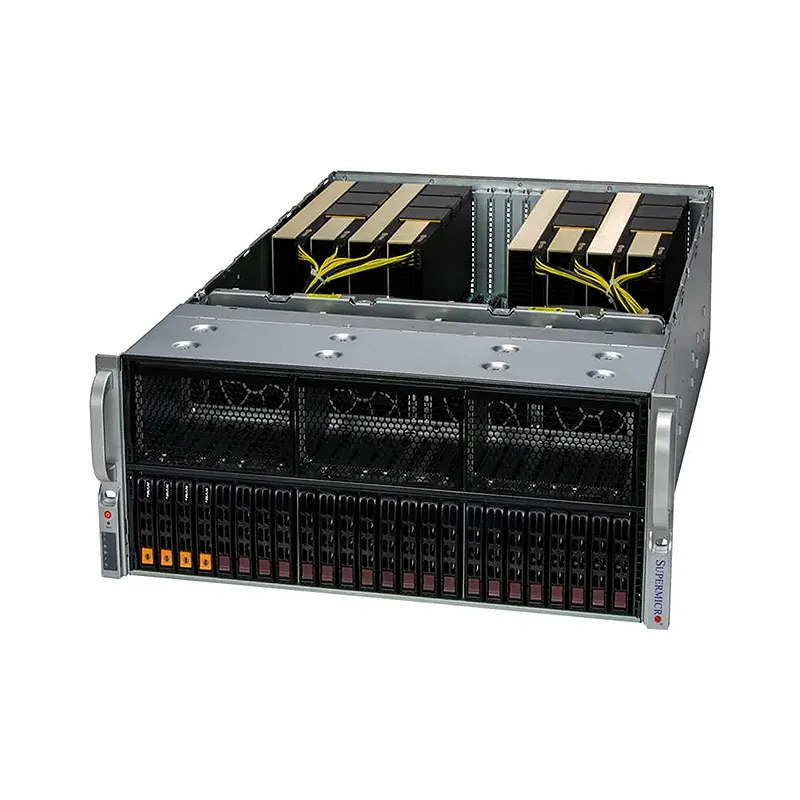

GPU SuperServer SYS-421GE-TNRT3 - HYPERTEK SYSTEMS B.V

Product SKUs

SuperServerSYS-421GE-TNRT3

Motherboard

Super X13DEG-OA

Processor

CPU
Dual Socket E (LGA-4677)
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Core Count
Up to 64C/128T; Up to 320MB Cache per CPU

GPU

Max GPU Count
Up to 8 double-width or 8 single-width GPUs
Supported GPU
NVIDIA PCIe: H100 NVL, H100, RTX A4000, RTX 6000 Ada Generation, RTX 5000, L40S, L4, A100
CPU-GPU Interconnect
PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
NVIDIA NVLink Bridge (optional)

System Memory

Memory
Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage
1.1V

On-Board Devices

Chipset
Intel C741
Network Connectivity
2 RJ45 10GbE with Intel X710-AT2

Input / Output

Video
1 VGA port

System BIOS

BIOS Type
AMI 32MB SPI Flash EEPROM

Management

Power configurations
Power-on mode for AC power recovery
ACPI Power Management

Chassis

Form Factor
4U Rackmount
Model
CSE-418G2TS-R5K40P

Dimensions and Weight

Height
7″ (178 mm)
Width
17.2″ (437 mm)
Depth
29″ (737 mm)
Package
26.57″ (H) x 27″ (W) x 41″ (D)
Weight
Gross Weight: 100 lbs (45.3 kg)
Net Weight: 65.5 lbs (29.7 kg)
Available Color
Black Front & Silver Body

Front Panel

LED
Hard drive activity LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED
Buttons
Power On/Off button
System Reset button

Expansion Slots

PCI-Express (PCIe) Configuration
Default 8 PCIe 5.0 x16 FHFL slots

Drive Bays / Storage

Drive Bays Configuration
Default: Total 12 bays 4 front hot-swap 2.5″ NVMe drive bays 8 front hot-swap 2.5″ SATA drive bays
M.2
2 M.2 NVMe slots (M-key)

System Cooling

Fans
8 heavy duty fans with optimal fan speed control
Liquid Cooling
Direct to Chip (D2C) Cold Plate (optional)

Power Supply

4x 2700W
4x 2700W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 203 mm
Input
2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V
Max: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB
Max: 3.5A / Min: 0A
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)

Brand	Supermicro
Products Status	New
Application	3D Rendering, AI/Deep Learning Training, Animation and Modeling, Cloud Gaming, Design & Visualization, Diagnostic Imaging, High Performance Computing, Media/Video Streaming, VDI
Supported GPUs	NVIDIA PCIe: H100, RTX A4000, RTX 6000 Ada Generation, L40S, A100
Total PCI-E Slots	8
Network Connectivity	2 RJ45 10GbE with Intel X710-AT2View AIOM OptionsView AOC Options
Memory Voltage	1.1V
Chipset	Intel C741
Depth	29" (737 mm)
Drive Bays Configuration	Default: Total 12 bays
Fans	8 heavy duty fans with optimal fan speed control
CPU	Dual Socket E (LGA-4677)5th Gen Intel Xeon
LED	Hard drive activity LEDNetwork activity LEDsPower status LEDSystem Overheat & Power Fail LED
Buttons	Power On/Off buttonSystem Reset button
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
Memory	Slot Count: 32 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMMMax Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMMView Memory Options
Available Color	Black front & silver body
Height	7" (178 mm)
Width	17.2" (437 mm)
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)
PCI-Express (PCIe) Configuration	Default
M.2	2 M.2 NVMe slots (M-key)
GPU-GPU Interconnect	NVIDIA NVLink Bridge (optional)
Max GPU Count	Up to 8 double-width or 8 single-width GPUs
BIOS Type	AMI 32MB SPI Flash EEPROM
Video	1 VGA port
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Package	26.57" (H) x 27" (W) x 41" (D)
Note	Supports up to 350W TDP CPUs (Air Cooled)Supports up to 385W TDP CPUs (Liquid Cooled)
Weight	Gross Weight: 100 lbs (45.3 kg)Net Weight: 65.5 lbs (29.7 kg)
