GPU SuperServer SYS-420GP-TNAR+ wholesale

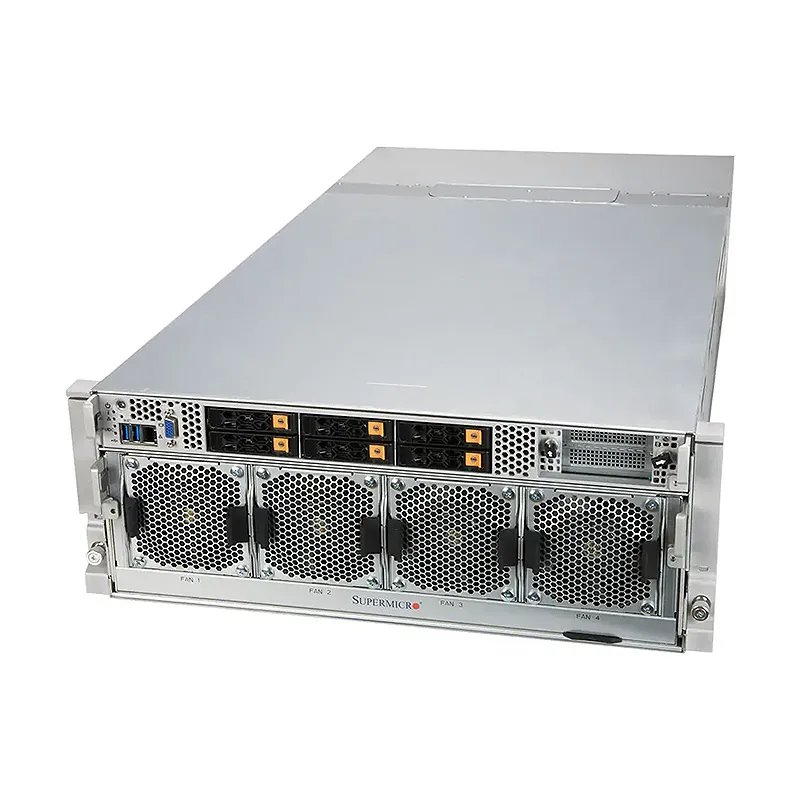

* NOTE: Image may not exactly match the product

GPU SuperServer SYS-420GP-TNAR+

DP Intel System with NVIDIA HGX A100 8-GPU and 3000W Power Supplies

Quote1 Piece(MOQ)

BrandSupermicro
Products StatusNew
Product Group4U GPU with NVLink and PCIe 4.0
GenerationX12
ApplicationAI/Deep Learning Training, High Performance Computing

Product SKUs

  • SuperServerSYS-420GP-TNAR+

Motherboard

  • Super X12DGO-6

Processor

  • CPU
    Dual Socket P+ (LGA-4189)
    3rd Gen Intel Xeon Scalable processors
  • Core Count
    Up to 40C/80T; Up to 60MB Cache per CPU

GPU

  • Max GPU Count
    Up to 8 onboard GPUs
  • Supported GPU
    NVIDIA SXM: HGX A100 8-GPU (80GB)
  • CPU-GPU Interconnect
    PCIe 4.0 x16 CPU-to-GPU Interconnect
  • GPU-GPU Interconnect
    NVIDIA NVLink with NVSwitch

System Memory

  • Memory
    Slot Count: 32 DIMM slots
    Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Supports Intel Optane persistent memory 200 series
  • Memory Voltage
    1.2V

On-Board Devices

  • SATA
    SATA (6Gbps) ; RAID 0/1/5/10 support
  • Chipset
    Intel C621A
  • Network Connectivity
    2 RJ45 10GbE with Intel X550-AT2 (optional)

Input / Output

  • Video
    1 VGA port

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM

Management

  • Power configurations
    Power-on mode for AC power recovery
    ACPI Power Management

Chassis

  • Form Factor
    4U Rackmount
  • Model
    CSE-438G

Dimensions and Weight

  • Height
    6.9″ (174 mm)
  • Width
    17.6″ (446 mm)
  • Depth
    35.4″ (900 mm)
  • Package
    29.5″ (H) x 27.4″ (W) x 44.9″ (D)
  • Weight
    Gross Weight: 225 lbs (102.1 kg)
    Net Weight: 166 lbs (75.3 kg)
  • Available Color
    Black Front & Silver Body

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 10 PCIe 4.0 x16 LP slots

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 6 bays 6 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
  • M.2
    2 M.2 NVMe/SATA slots (M-key)

System Cooling

  • Fans
    4 heavy duty fans with optimal fan speed control

Power Supply

  • 1x 3000W
    1x 3000W Redundant Titanium Level (96%) power supply
    Dimension (WxHxL)
    106.5 x 82.4 x 203.5 mm
    Total Output Power
    Input
    2880W: 200-207Vac
    2880W: 200-207Vac / 50-60Hz
    3000W: 207.1-240Vac
    3000W: 207.1-240Vac / 50-60Hz
    3000W: 240Vdc
    3000W: 240Vdc / 50-60Hz
    +12V
    Max: 91.66A / Min: 0A (200Vac-240Vac)
    Max: 91.66A / Min: 0A (Vdc-240Vdc)
    12V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro

Products Status

New

Application

AI/Deep Learning Training, High Performance Computing

Supported GPUs

NVIDIA SXM: HGX A100 8-GPU (80GB)

Total PCI-E Slots

10

Network Connectivity

2 RJ45 10GbE with Intel X550-AT2 (optional)View AOC Options

Memory Voltage

1.2V

Chipset

Intel C621A

Depth

35.4" (900 mm)

Drive Bays Configuration

Default: Total 6 bays

Fans

4 heavy duty fans with optimal fan speed control

CPU

Dual Socket P+ (LGA-4189)3rd Gen Intel Xeon Scalable processors

SATA

SATA (6Gbps) ; RAID 0/1/5/10 support

CPU-GPU Interconnect

PCIe 4.0 x16 CPU-to-GPU Interconnect

Memory

Slot Count: 32 DIMM slotsMax Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options

Available Color

Black front & silver body

Height

6.9" (174 mm)

Width

17.6" (446 mm)

PCI-Express (PCIe) Configuration

Default

M.2

2 M.2 NVMe/SATA slots (M-key)

GPU-GPU Interconnect

NVIDIA NVLink with NVSwitch

Max GPU Count

Up to 8 onboard GPUs

BIOS Type

AMI 32MB SPI Flash EEPROM

Video

1 VGA port

Core Count

Up to 40C/80T; Up to 60MB Cache per CPU

Package

29.5" (H) x 27.4" (W) x 44.9" (D)

Note

Supports up to 270W TDP CPUs (Air Cooled)

Weight

Gross Weight: 225 lbs (102.1 kg)Net Weight: 166 lbs (75.3 kg)
