GPU ARS-111GL-NHR-LCC wholesale

* NOTE: Image may not exactly match the product

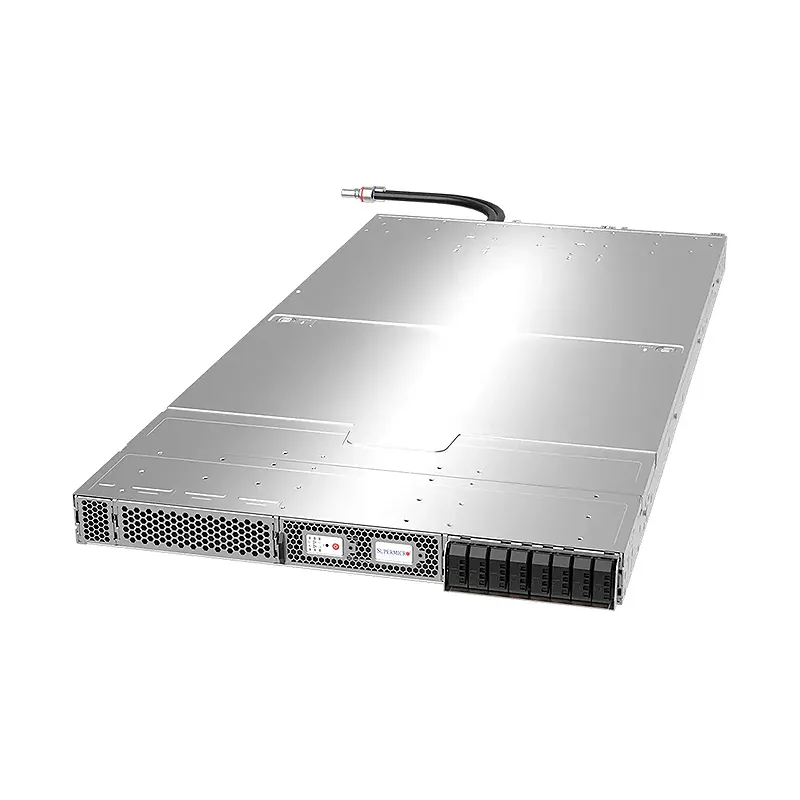

GPU ARS-111GL-NHR-LCC

NVIDIA GH200 Grace Hopper Superchip system with liquid-cooling supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7

Quote1 Piece(MOQ)

BrandSupermicro
Products StatusNew
Product GroupNVIDIA MGX Systems
GenerationG1
ApplicationAI/Deep Learning Training and Inference, High Performance Computing, Large Language Model (LLM) and Generative AI

Product SKUs

  • ARS-111GL-NHR-LCC

Motherboard

  • Super G1SMH-G

Processor

  • CPU
    NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper Superchip

GPU

  • Max GPU Count
    Up to 1 onboard GPU
  • Supported GPU
    NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper Superchip (Liquid-cooled)
  • CPU-GPU Interconnect
    NVLink-C2C

System Memory

  • Memory
    Slot Count: Onboard Memory
    Max Memory: Up to 480GB ECC LPDDR5X
    Additional GPU Memory: Up to 96GB ECC HBM3

On-Board Devices

  • Chipset
    System on Chip
  • Network Connectivity

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • Video
    1 mini-DP port

System BIOS

  • BIOS Type
    AMI 64MB SPI Flash EEPROM

Management

  • Power configurations
    Power-on mode for AC power recovery
    ACPI Power Management

Chassis

  • Form Factor
    1U Rackmount
  • Model
    CSE-GP102TS-R000NDFP

Dimensions and Weight

  • Height
    1.75″ (44 mm)
  • Width
    17.33″ (440 mm)
  • Depth
    37″ (940 mm)
  • Package
    9.5″ (H) x 48″ (W) x 28″ (D)
  • Weight
    Gross Weight: 65.5 lbs (29.7 kg)
    Net Weight: 48.5 lbs (22 kg)
  • Available Color
    Silver

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 2 PCIe 5.0 x16 FHFL slots

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays
  • M.2
    2 M.2 NVMe slots (M-key)

System Cooling

  • Fans
    9 Removable heavy-duty 4cm Fan(s)
  • Liquid Cooling
    Direct to Chip (D2C) Cold Plate (optional)

Power Supply

  • 2x 2000W
    2x 2000W Redundant Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 185 mm
    Input
    1000W: 100-127Vac / 50-60Hz
    1800W: 200-220Vac / 50-60Hz
    1980W: 220-230Vac / 50-60Hz
    2000W: 220-240Vac / 50-60Hz (for UL only)
    2000W: 230-240Vac / 50-60Hz
    2000W: 230-240Vdc / 50-60Hz (for CQC only)
    +12V
    Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 150A / Min: 0A (200Vac-220Vac)
    Max: 165A / Min: 0A (220Vac-230Vac)
    Max: 166A / Min: 0A (230Vac-240Vac)
    12V SB
    Max: 3.5A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro

Products Status

New

Application

AI/Deep Learning Training and Inference, High Performance Computing, Large Language Model (LLM) and Generative AI

Supported GPUs

NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper Superchip (Liquid-cooled)

Total PCI-E Slots

2

Network Connectivity

View AOC Options

Chipset

System on Chip

Depth

37" (940 mm)

Drive Bays Configuration

Default: Total 8 bays

Fans

9 Removable heavy-duty 4cm Fan(s)

CPU

NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper Superchip

LAN

1 RJ45 1 GbE Dedicated BMC LAN port

CPU-GPU Interconnect

NVLink-C2C

Memory

Slot Count: Onboard MemoryMax Memory: Up to 480GB ECC LPDDR5XAdditional GPU Memory: Up to 96GB ECC HBM3

Available Color

Silver

Height

1.75" (44 mm)

Width

17.33" (440 mm)

Liquid Cooling

Direct to Chip (D2C) Cold Plate (optional)

PCI-Express (PCIe) Configuration

Default

M.2

2 M.2 NVMe slots (M-key)

Max GPU Count

Up to 1 onboard GPU

BIOS Type

AMI 64MB SPI Flash EEPROM

Video

1 mini-DP port

Package

9.5" (H) x 48" (W) x 28" (D)

Note

Supports up to 1000W TDP CPUs (Liquid Cooled)

Weight

Gross Weight: 65.5 lbs (29.7 kg)Net Weight: 48.5 lbs (22 kg)
