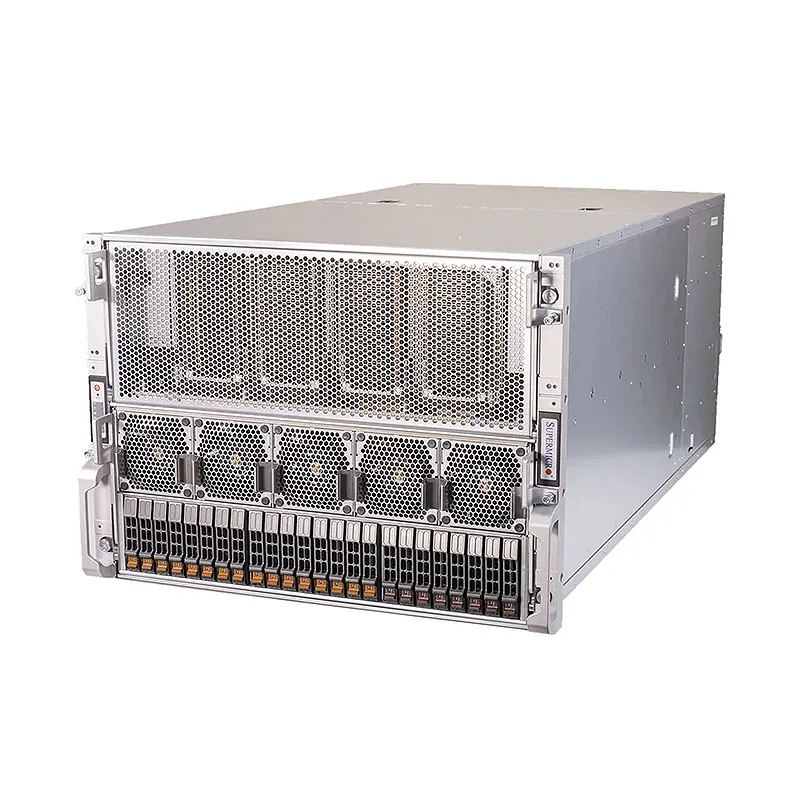

GPU A+ Server AS-8125GS-TNHR - HYPERTEK SYSTEMS B.V

Product SKUs

A+ ServerAS -8125GS-TNHR
A+ ServerAS -8125GS-TNHR-G1Gold Series version with pre-configured components

Motherboard

Processor

CPU
Dual processor(s)
AMD EPYC 9004/9005 Series Processors (* AMD EPYC 9005 Series drop-in support requires board revision 2.x)
Core Count
Up to 128C/256T

GPU

System Memory

Memory
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM
Memory Voltage
1.1V

On-Board Devices

Input / Output

System BIOS

Management

Power configurations
Power-on mode for AC power recovery
ACPI Power Management

Chassis

Dimensions and Weight

Front Panel

LED
Hard drive activity LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED
Buttons
Power On/Off button
System Reset button

Expansion Slots

PCI-Express (PCIe) Configuration
Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHFL slots
Option A 8 PCIe 5.0 x16 LP slots 4 PCIe 5.0 x16 FHFL slots

Drive Bays / Storage

Drive Bays Configuration
Default: Total 18 bays 2 front hot-swap 2.5″ SATA drive bays 4 front hot-swap 2.5″ NVMe* drive bays 12 front hot-swap 2.5″ NVMe drive bays
(*NVMe support may require additional storage controller and/or cables)
M.2
1 M.2 NVMe slot (M-key)

System Cooling

Power Supply

Brand	Supermicro
Products Status	New
Application	AI/Deep Learning Training, Climate and Weather Modeling, High Performance Computing, Industrial Automation, Retail
Supported GPUs	NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
Total PCI-E Slots	10
Network Connectivity	View AOC Options
Memory Voltage	1.1V
Chipset	AMD SP5
Depth	33.2" (843.28 mm)
Drive Bays Configuration	Default: Total 18 bays(*NVMe support may require additional storage controller and/or cables)
Fans	10 heavy duty fans with optimal fan speed control
CPU	Dual processor(s)AMD EPYC 9004/9005 Series Processors
LED	Hard drive activity LEDNetwork activity LEDsPower status LEDSystem Overheat & Power Fail LED
Buttons	Power On/Off buttonSystem Reset button
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
Memory	Slot Count: 24 DIMM slotsMax Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMMView Memory Options
Available Color	Black front & silver body
Height	14" (355.6 mm)
Width	17.2" (437 mm)
PCI-Express (PCIe) Configuration	DefaultOption A
M.2	1 M.2 NVMe slot (M-key)
GPU-GPU Interconnect	NVIDIA NVLink with NVSwitch
Max GPU Count	Up to 8 onboard GPUs
BIOS Type	AMI 32MB SPI Flash EEPROM
Video	1 VGA port
Core Count	Up to 128C/256T
Package	29.5" (H) x 27.5" (W) x 51.2" (D)
Note	Supports up to 400W TDP CPUs* This system supports AMD EPYC 9004/9005 Series processors up to 400W TDP
Weight	Gross Weight: 225 lbs (102.1 kg)Net Weight: 166 lbs (75.3 kg)
