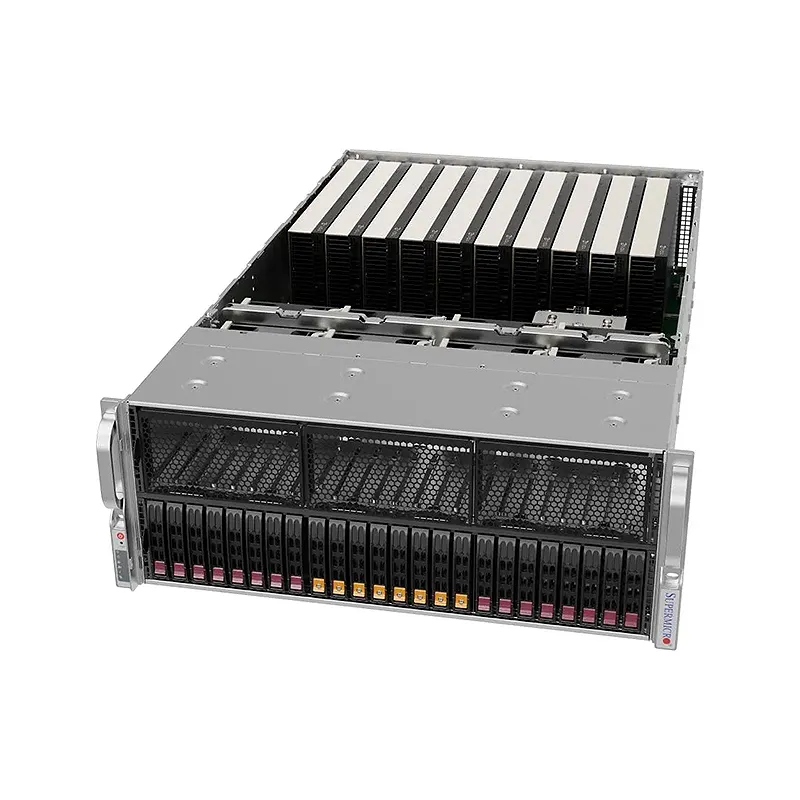

GPU A+ Server AS-4125GS-TNRT1 - HYPERTEK SYSTEMS B.V

Product SKUs

Motherboard

Processor

CPU
Single processor(s)
AMD EPYC 9004/9005 Series Processors (* AMD EPYC 9005 Series drop-in support requires board revision 2.x)
Core Count
Up to 160C/320T

GPU

Max GPU Count
Up to 10 double-width or 10 single-width GPUs
Supported GPU
NVIDIA PCIe: H100, L40, RTX 6000 Ada Generation, L40S, A100
AMD PCIe: Instinct MI210
CPU-GPU Interconnect
PCIe 5.0 x16 Switch Single-Root
GPU-GPU Interconnect
NVIDIA NVLink Bridge (optional), AMD Infinity Fabric Link (optional)

System Memory

Memory
Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
Max Memory (1DPC): Up to 4.6TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor)
Memory Voltage
1.1V

On-Board Devices

Input / Output

System BIOS

Management

Power configurations
Power-on mode for AC power recovery
ACPI Power Management

Chassis

Dimensions and Weight

Front Panel

LED
Hard drive activity LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED
Buttons
Power On/Off button
System Reset button

Expansion Slots

PCI-Express (PCIe) Configuration
Default 11 PCIe 5.0 x16 (in x16) FHFL slots

Drive Bays / Storage

Drive Bays Configuration
Default: Total 10 bays 8 front hot-swap 2.5″ NVMe drive bays 2 front hot-swap 2.5″ SATA drive bays
M.2

System Cooling

Power Supply

Brand	Supermicro
Products Status	New
Application	AI / Deep Learning, High Performance Computing
Supported GPUs	AMD PCIe: Instinct MI210~ NVIDIA PCIe: H100, L40, RTX 6000 Ada Generation, L40S, A100
Total PCI-E Slots	12
Network Connectivity	2 RJ45 10GbEView AIOM OptionsView AOC Options
USB	2 ports(rear)
Memory Voltage	1.1V
Chipset	AMD SP5
Depth	29" (737 mm)
Drive Bays Configuration	Default: Total 10 bays
Fans	8 heavy duty fans with optimal fan speed control
CPU	Single processor(s)AMD EPYC 9004/9005 Series Processors
LED	Hard drive activity LEDNetwork activity LEDsPower status LEDSystem Overheat & Power Fail LED
SATA	SATA (6Gbps)
Buttons	Power On/Off buttonSystem Reset button
LAN	1 RJ45 1 GbE Dedicated BMC LAN port2 RJ45 10 GBASE-T LAN ports
CPU-GPU Interconnect	PCIe 5.0 x16 Switch Single-Root
Available Color	Black front & silver body
Height	7" (178 mm)
Width	17.2" (437 mm)
PCI-Express (PCIe) Configuration	Default
Serial	1 COM port(Rear)
GPU-GPU Interconnect	AMD Infinity Fabric Link (optional), NVIDIA NVLink Bridge (optional)
Max GPU Count	Up to 10 double-width or 10 single-width GPUs
BIOS Type	AMI 32MB SPI Flash EEPROM
Video	1 VGA port
Core Count	Up to 160C/320T
Package	26.57" (H) x 27" (W) x 41" (D)
Note	Supports up to 400W TDP CPUs* This system supports AMD EPYC 9004/9005 Series processors up to 400W TDP
Weight	Gross Weight: 100 lbs (45.3 kg)Net Weight: 65.5 lbs (29.7 kg)
