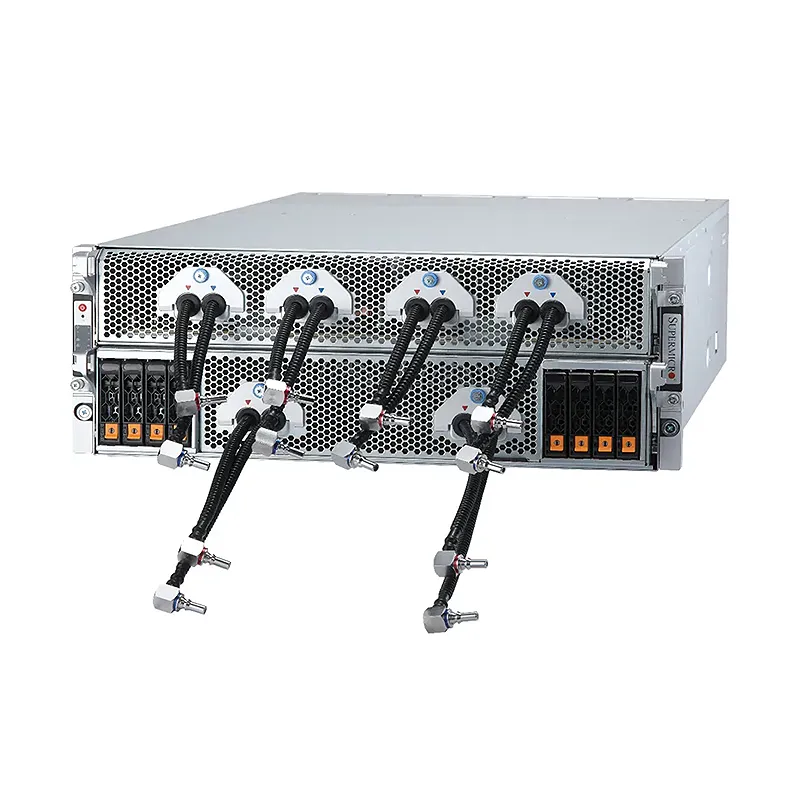

GPU A+ Server AS-4125GS-TNHR2-LCC - HYPERTEK SYSTEMS B.V

Product SKUs

Motherboard

Processor

CPU
Dual processor(s)
AMD EPYC 9004/9005 Series Processors (* AMD EPYC 9005 Series drop-in support requires board revision 2.x)
Core Count
Up to 128C/256T

GPU

System Memory

Memory
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM

On-Board Devices

Input / Output

System BIOS

Management

Power configurations
Power-on mode for AC power recovery
ACPI Power Management

Chassis

Dimensions and Weight

Front Panel

Expansion Slots

PCI-Express (PCIe) Configuration
Default 8 PCIe 5.0 x16 (in x16) LP slots 2 PCIe 5.0 x16 (in x16) FHHL slots
Option A* 8 PCIe 5.0 x16 (in x16) LP slots 4 PCIe 5.0 x16 (in x16) FHHL slots
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

Drive Bays / Storage

Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 2.5″ NVMe drive bays
M.2
1 M.2 NVMe slot (M-key)

System Cooling

Power Supply

Brand	Supermicro
Products Status	New
Application	AI / Deep Learning, Artificial Intelligence (AI), Deep Learning/AI/Machine Learning Development, HPC
Supported GPUs	NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
Total PCI-E Slots	10
Network Connectivity	View AOC Options
USB	2 USB 3.0 Type-A ports(Rear)
Chipset	AMD SP5
Depth	33.2" (842 mm)
Drive Bays Configuration	Default: Total 8 bays
Fans	4x 8cm heavy duty fans with optimal fan speed control
CPU	Dual processor(s)AMD EPYC 9004/9005 Series Processors
Buttons	UID button
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
Memory	Slot Count: 24 DIMM slotsMax Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMMView Memory Options
Available Color	Silver
Height	6.85" (174 mm)
Width	17.7" (449 mm)
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)
PCI-Express (PCIe) Configuration	DefaultOption A(Requires additional parts, please refer to the system callout images above.), please see the optional parts list for details. For more details on PCIe slot configuration options
M.2	1 M.2 NVMe slot (M-key)
GPU-GPU Interconnect	NVIDIA NVLink with NVSwitch
Max GPU Count	Up to 8 onboard GPUs
BIOS Type	AMI 32MB SPI Flash EEPROM
Video	1 VGA port
Core Count	Up to 128C/256T
Package	13" (H) x 48" (W) x 26.4" (D)
Note	Supports up to 400W TDP CPUs (Liquid Cooled)* This system supports AMD EPYC 9004/9005 Series processors up to 400W TDP
Weight	Gross Weight: 138.89 lbs (63 kg)Net Weight: 80.03 lbs (53 kg)
