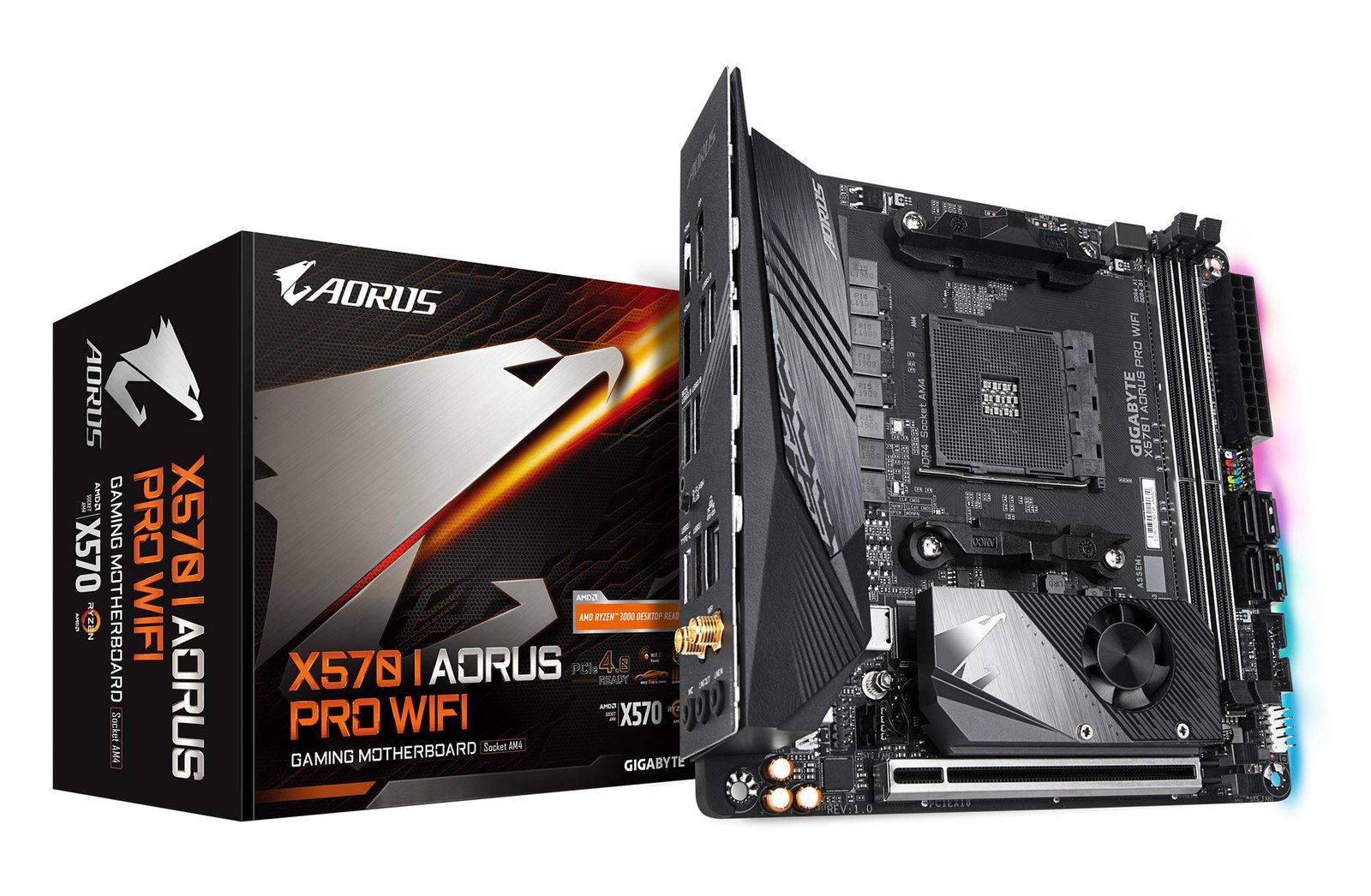

GIGABYTE Motherboard Aorus X570 I Aorus Pro Wifi

USB Ports

4 x USB 3.2 Gen 1 ports on the back panel Integrated in the 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header

Socket

AM4

Products Status

New

Form Factors

Mini-ITX

Platform

AMD

USB Ports	4 x USB 3.2 Gen 1 ports on the back panel Integrated in the 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header
Socket	AM4
Products Status	New
Form Factors	Mini-ITX
Platform	AMD
Chipset	AMD X570
Warranty	1 Year
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Brand	GIGABYTE
Back I/O Ports	1 x DisplayPort 2 x HDMI ports 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks
Product Name	GIGABYTE Motherboard Aorus X570 AORUS PRO WIFI
Packaging Details	BOX
Size	17.0cmx17.0cm
Memory	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Application	Desktop
