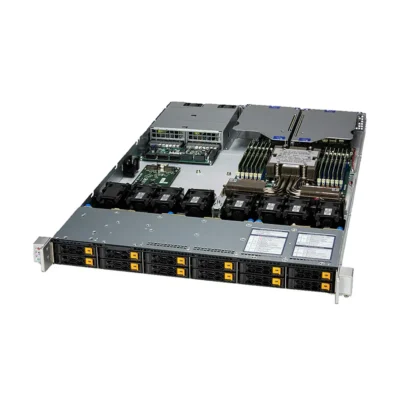

CloudDC A+ Server AS -1116CS-TN (Complete System Only

Product SKUs

A+ ServerAS -1116CS-TN

Motherboard

Super H14SHM

Processor

CPU
Single processor(s)
AMD EPYC 9005/9004 Series Processors
Core Count
Up to 192C/384T

GPU

Max GPU Count
Up to 2 single-width GPUs
CPU-GPU Interconnect
PCIe 5.0 x16 CPU-to-GPU Interconnect

System Memory

Memory
Slot Count: 12 DIMM slots/12 Channels
Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor)
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)

On-Board Devices

Chipset
System on Chip
Network Connectivity
Via AIOM
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

LAN
1 RJ45 1 GbE Dedicated BMC LAN port
USB
1 USB 2.0 Type-A port(Rear)
1 USB 3.2 Gen1 Type-A port(Rear)
Video
1 VGA port(Rear)
TPM
1 TPM header

System BIOS

BIOS Type
AMI 64MB SPI Flash EEPROM
BIOS Features
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
ACPI 6.5

Management

Power configurations
ACPI/APM Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,

Chassis

Form Factor
1U Rackmount
Model
CSE-MD101TS-R000NDP

Dimensions and Weight

Height
1.7″ (43 mm)
Width
17.2″ (437 mm)
Depth
29.4″ (747 mm)
Package
8.1″ (H) x 23.8″ (W) x 40.6″ (D)
Weight
Gross Weight: 49 lbs (22.2 kg)
Net Weight: 34 lbs (15.4 kg)
Available Color
Black

Front Panel

LED
HDD activity
LAN1 activity
LAN2 activity
Power Failed LED
Power status
System information
Buttons
Power On/Off button
UID button

Expansion Slots

PCI-Express (PCIe) Configuration
Default 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
CXL Support
Up to 4 CXL 2.0 x16 devices

Drive Bays / Storage

Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bays
Option A: Total 12 bays 12 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default)/22110)

System Cooling

Fans
8 Counter-Rotating PWM 40x40x56mm Fan(s)

Power Supply

2x 1000W
2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 185 mm
Input
800W: 100-127Vac / 50-60Hz
1000W: 200-240Vac / 50-60Hz
+12V
Max: 66.7A (100Vac-127Vac)
Max: A (100Vdc-240Vdc)
Max: 83A (200Vac-240Vac)
12V SB
Max: 2.1A
Output Type
Backplanes (gold finger)
Certification
Titanium Level
[
Test Report
]

Brand	Supermicro
Products Status	New
Applications	CDN, Cloud Computing, Data Center Optimized, Edge Nodes, HPC, Storage Headnode, Virtualization
Max GPU	1
CPU Type	AMD EPYC 9005/9004 Series Processors
Total PCI-E Slots	2
Drives	8
Drive Form Factors	2.5"
Form Factor	1U
Generation	H14
Interface	NVMe (Optional), SAS (Optional), SATA (Optional)
LED	HDD activityLAN1 activityLAN2 activityPower Failed LEDPower statusSystem information
Max GPU Count	Up to 2 single-width GPUs
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
CXL Support	Up to 4 CXL 2.0 x16 devices
Network Connectivity	Via AIOMView AIOM OptionsView AOC Options
BIOS Features	Plug and Play (PnP)SMBIOS 3.5 or laterUEFI 2.8USB Keyboard supportACPI 6.5
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type	AMI 64MB SPI Flash EEPROM
Package	8.1" (H) x 23.8" (W) x 40.6" (D)
Depth	29.4" (747 mm)
Fans	8 Counter-Rotating PWM 40x40x56mm Fan(s)
Height	1.7" (43 mm)
Buttons	Power On/Off buttonUID button
M.2	2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default)/22110)
Width	17.2" (437 mm)
Video	1 VGA port(Rear)
Core Count	Up to 192C/384T
Note	Supports up to 500W TDP CPUs
Weight	Gross Weight: 49 lbs (22.2 kg)Net Weight: 34 lbs (15.4 kg)
Drive Bays Configuration	Default: Total 8 baysOption A: Total 12 bays(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
USB	1 USB 2.0 Type-A port(Rear)1 USB 3.2 Gen1 Type-A port(Rear)
Available Color	Black
PCI-Express (PCIe) Configuration	Default
IPMI	Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
TPM	1 TPM Header
CPU	Single processor(s)AMD EPYC 9005/9004 Series Processors
Chipset	System on Chip
