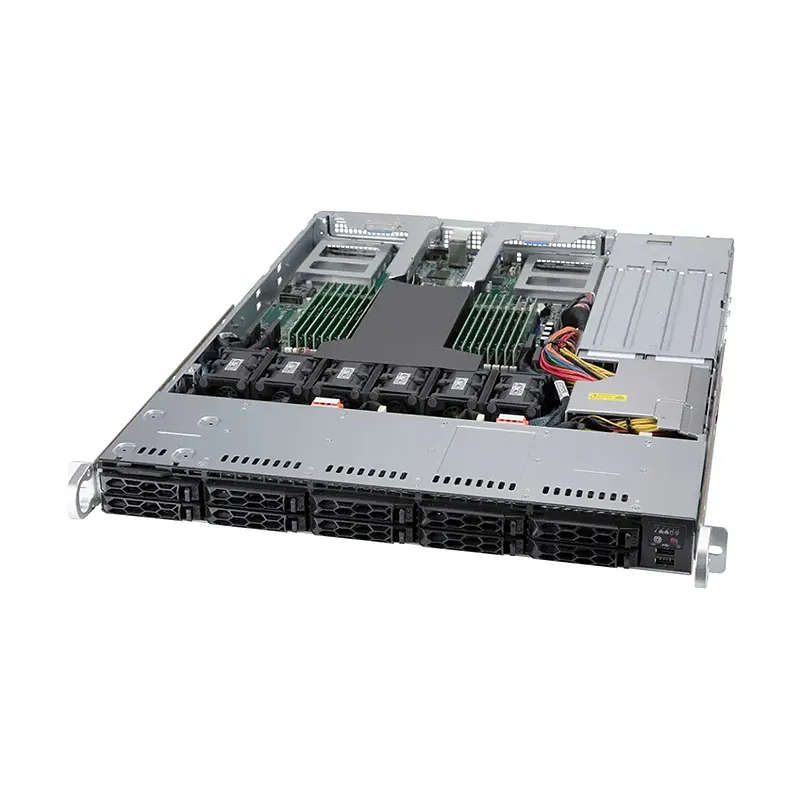

CloudDC A+ Server AS -1114CS-TNR (Complete System Only

Product SKUs

A+ ServerAS -1114CS-TNRStandard version with PWS-860P-1R2 (Platinum Level)
A+ ServerAS -1114CS-TNR-EUEuropean version with PWS-861A-1R (Titanium Level)

Motherboard

Super H12SSW-AN6

Processor

CPU
Single Socket SP3
AMD EPYC 7002/7003 Series Processors
Core Count
Up to 64C/128T

GPU

Max GPU Count
Up to 2 double-width or 2 single-width GPUs
Supported GPU
NVIDIA PCIe: T4, A2

System Memory

Memory
Slot Count: 16 DIMM slots
Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

On-Board Devices

SATA
SATA (6Gbps)
Chipset
System on Chip
Network Connectivity
Ethernet
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

LAN
1 RJ45 1 GbE Dedicated BMC LAN port
USB
2 USB 3.0 ports(rear)
Video
1 VGA port
Serial
1 COM port(Rear)

System BIOS

BIOS Type
AMI 256MB SPI Flash EEPROM

Management

Power configurations
ACPI/APM Power Management

Chassis

Form Factor
1U Rackmount
Model
CSE-LB16TS-R860AWP

Dimensions and Weight

Height
1.7″ (43 mm)
Width
17.2″ (437 mm)
Depth
23.5″ (597 mm)
Package
7.7″ (H) x 23.7″ (W) x 31.8″ (D)
Weight
Gross Weight: 40 lbs (18.14 kg)
Net Weight: 25 lbs (11.34 kg)
Available Color
Black

Front Panel

LED
Device Activity
LAN 1 Activity
LAN 2 Activity
Power status
System information
Buttons
Power On/Off
UID button

Expansion Slots

PCI-Express (PCIe) Configuration
Default 2 PCIe 4.0 x16 FHHL slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
M.2
2 M.2 PCIe 4.0 x4 slots (M-key 2242/2260/2280/22110)

Drive Bays / Storage

Drive Bays Configuration
Default: Total 10 bays 10 front hot-swap 2.5″ SATA drive bays
Option A: Total 10 bays 10 front hot-swap 2.5″ NVMe* drive bays
Option B: Total 10 bays 10 front hot-swap 2.5″ SAS* drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2

System Cooling

Fans
6 Counter-rotating 40x40x56mm Fan(s)

Power Supply

2x 860W
2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
54.5 x 40.25 x 322 mm
Input
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac
860W: 200-240Vdc / 50-60Hz
860W: 200-240Vac / 50-60Hz
+12V
Max: 66.6A / Min: 0A (100Vac-127Vac)
Max: 71.6A / Min: 0A (200Vdc-240Vdc)
Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)

Brand	Supermicro
Products Status	New
Applications	AI/Deep Learning Training and Inference, Cloud Computing, Financial Services & Healthcare Image Archives, Hosting & Content Delivery, Networking Appliance, Private & Hybrid Cloud
Max GPU	1
CPU Type	AMD EPYC 7002/7003 Series Processors
Total PCI-E Slots	4
Drives	10
Drive Form Factors	2.5"
Form Factor	1U
Generation	H12
Interface	NVMe (Optional), SAS (Optional), SATA (Native)
SATA	SATA (6Gbps)
LED	Device ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem information
Max GPU Count	Up to 2 double-width or 2 single-width GPUs
Serial	1 COM port(Rear)
Supported GPU	A2View GPU Options, NVIDIA PCIe: T4
Network Connectivity	EthernetView AIOM OptionsView AOC Options
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type	AMI 256Mb SPI Flash EEPROM
Package	7.7" (H) x 23.7" (W) x 31.8" (D)
Depth	23.5" (597 mm)
Fans	6 Counter-rotating 40x40x56mm Fan(s)
Height	1.7" (43 mm)
Buttons	Power On/OffUID button
M.2	2 M.2 PCIe 4.0 x4 slots (M-key 2242/2260/2280/22110)
Memory	Slot Count: 16 DIMM slotsMax Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMMView Memory Options
Width	17.2" (437 mm)
Video	1 VGA port
Core Count	Up to 64C/128T
Note	Supports up to 280W TDP CPUs (Air Cooled)
Weight	Gross Weight: 40 lbs (18.14 kg)Net Weight: 25 lbs (11.34 kg)
Drive Bays Configuration	Default: Total 10 baysOption A: Total 10 baysOption B: Total 10 bays(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
USB	2 USB 3.0 ports(rear)
Available Color	Black
PCI-Express (PCIe) Configuration	Default
IPMI	Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
CPU	Single Socket SP3AMD EPYC 7002/7003 Series Processors
Chipset	System on Chip
