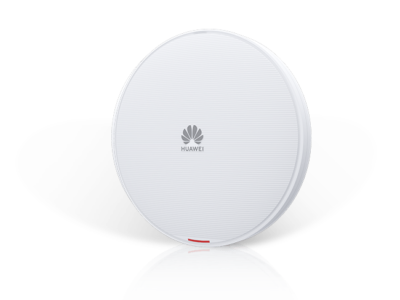

Airengine5761-11 (11ax room type, 2 + 2 dual frequency, smart antenna, USB, Bluetooth)

Brand

Huawei

Warranty

1 Year

Dimensions (Diameter x Height)

220 x 50 mm

Power Input

DC: 12 V 10%, PoE power supply: In compliance with 802.3at/af. Note: When 802.3af power is supplied, the USB port is disabled.

Maximum Power Consumption

15.3 W (excluding USB), Note: The actual maximum power consumption depends on local laws and regulations.

A next generation indoor Wi-Fi 6 (802.11ax) Access Point (AP), AirEngine 5761-11 features built-in Smart Antennas where the Wi-Fi signal follows users, delivering always-on coverage. Supporting 2×2 Multiple-Input Multiple-Output (MIMO), this AP can simultaneously deliver services on both the 2.4 GHz and 5 GHz frequency bands, with a rate of up to 1.775 Gbit/s.

AirEngine 5761-11 excels in scenarios requiring high bandwidth and a high-quality network experience, from small and midsize enterprise offices and hospital to cafes.

Brand	Huawei
Warranty	1 Year
Dimensions (Diameter x Height)	220 x 50 mm
Power Input	DC: 12 V 10%, PoE power supply: In compliance with 802.3at/af. Note: When 802.3af power is supplied, the USB port is disabled.
Maximum Power Consumption	15.3 W (excluding USB), Note: The actual maximum power consumption depends on local laws and regulations.
Maximum Number of Users	1024, Note: The actual number of users varies according to the environment.
Operating Temperature	C10C to +50C
Antenna Type	Built-in Smart Antennas
MIMO:Spatial Streams	2.4 GHz: 2×2:2; 5 GHz: 2×2:2
Radio Protocols	802.11a/b/g/n/ac/ac wave2/ax
Maximum Rate	1.775 Gbit/s
