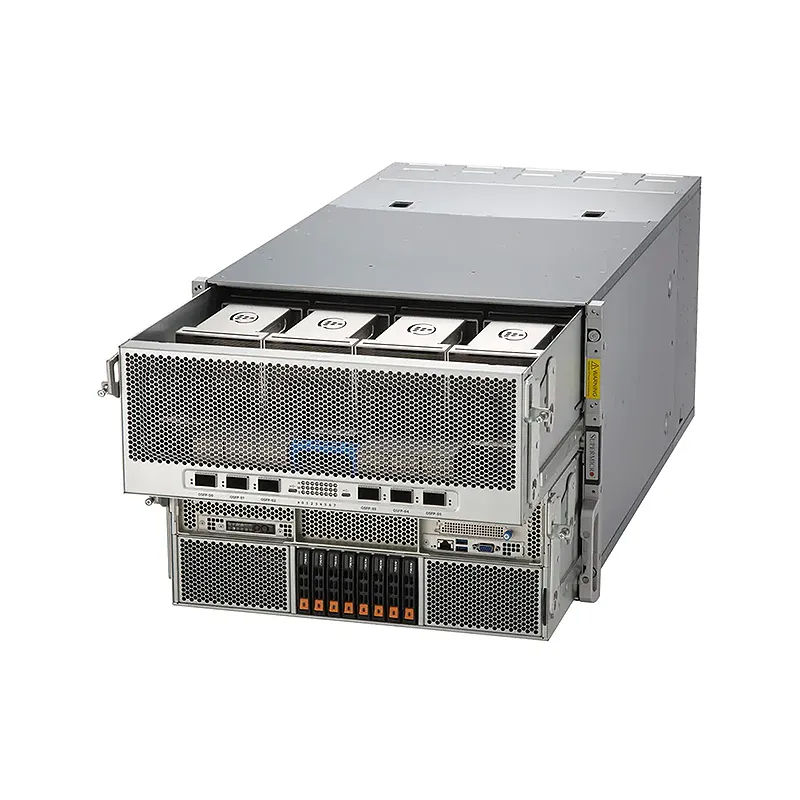

AI Training SuperServer SYS-822GA-NGR3

Brand

Supermicro

Products Status

New

Product Group

8U/10U Universal GPU Systems

Generation

X14

Application

Climate and Weather Modeling, Drug Discovery, Fraud Detection and Fintech, Industrial Automation, LLMs & Multi-modal LLMs, Massive-scale AI Training

Product SKUs

Motherboard

Processor

CPU
Dual Socket BR (LGA-7529)
Intel Xeon 6900 series processors with P-cores
Core Count
Up to 128C/256T; Up to 504MB Cache per CPU

GPU

System Memory

Memory
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM/LRDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM

On-Board Devices

Input / Output

System BIOS

Management

Power configurations
Power-on mode for AC power recovery
ACPI Power Management

Chassis

Dimensions and Weight

Front Panel

Expansion Slots

PCI-Express (PCIe) Configuration
Default 2 PCIe 5.0 x16 FHFL slots 2 PCIe 5.0 x8 FHFL slots 1 PCIe 5.0 x4 AIOM slot (OCP 3.0 compatible)
M.2
2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default))

Drive Bays / Storage

Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 2.5″ PCIe 5.0 NVMe drive bays
M.2
2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default))

System Cooling

Power Supply

Brand	Supermicro
Products Status	New
Application	Climate and Weather Modeling, Drug Discovery, Fraud Detection and Fintech, Industrial Automation, LLMs & Multi-modal LLMs, Massive-scale AI Training
Supported GPUs	Intel OAM: Gaudi 3
Total PCI-E Slots	4
Network Connectivity	6 OSFP 800GbEView AIOM OptionsView AOC Options
USB	2 USB 3.0 Type-A ports
Chipset	System on Chip
Depth	33.2" (800 mm)
Drive Bays Configuration	Default: Total 8 bays
Fans	10 Removable Heavy-Duty 80 x 80 x 80mm Fan(s)
CPU	Dual Socket BR (LGA-7529)Intel Xeon 6900 series processors with P-cores
Buttons	Power On/Off
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
CPU-GPU Interconnect	PCIe Gen5 x16
Memory	Slot Count: 24 DIMM slotsMax Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM/LRDIMMMax Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMMView Memory Options
Available Color	Silver
Height	13.8" (356 mm)
Width	17.6" (447 mm)
PCI-Express (PCIe) Configuration	Default
M.2	2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default))
ROHS	RoHS Compliant
GPU-GPU Interconnect	24x 200Gbe (48 x 112Gbps) PAM4 SerDes links split
Max GPU Count	Up to 8 onboard GPUs
BIOS Type	AMI 32MB SPI Flash EEPROM
Video	1 VGA port
Core Count	Up to 128C/256T; Up to 504MB Cache per CPU
Package	27.6" (H) x 51" (W) x 29.5" (D)
Note	Supports up to 500W TDP CPUs (Air Cooled)
Weight	Gross Weight: 282 lbs (128 kg)Net Weight: 308 lbs (140 kg)
